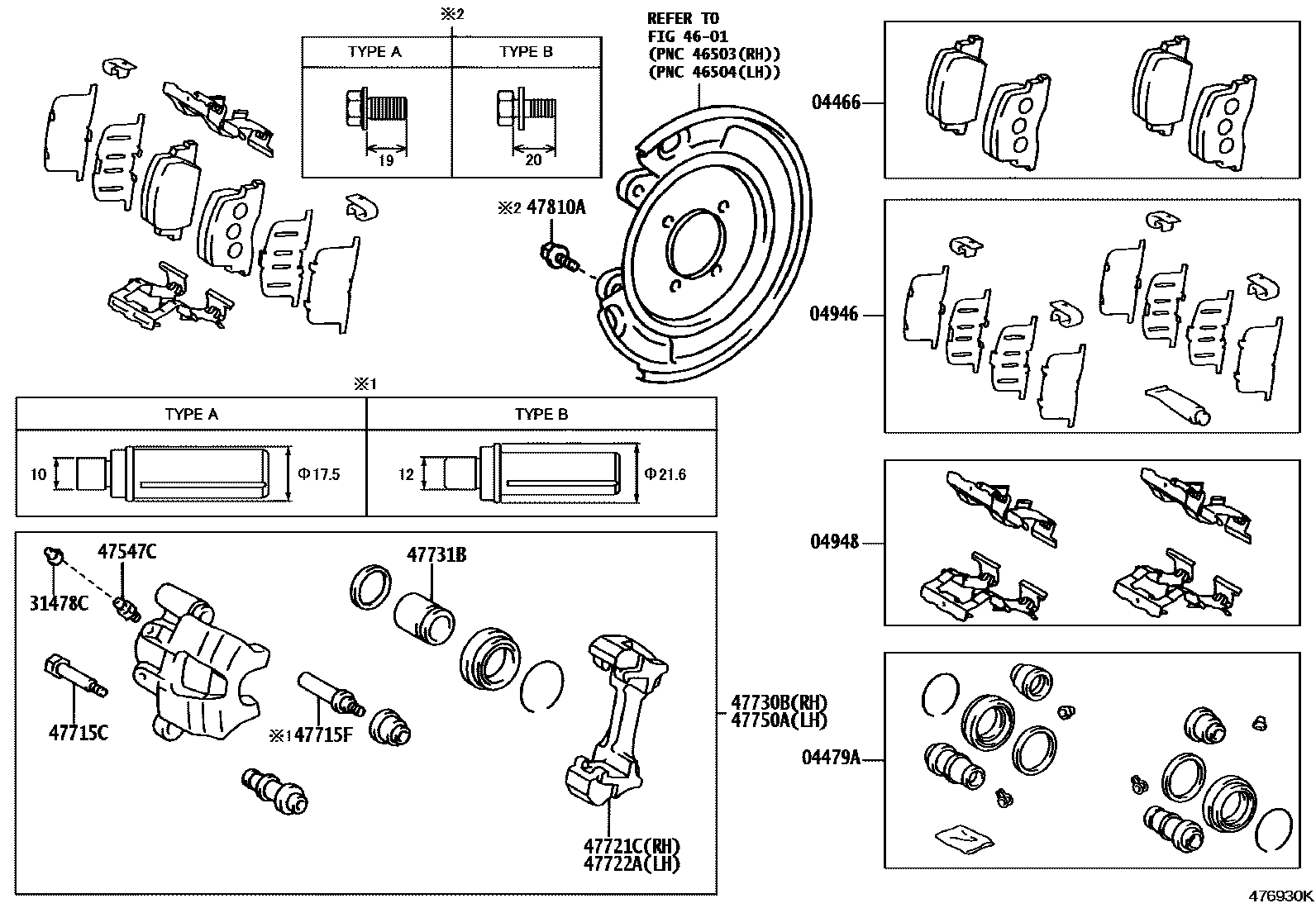

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-48080iZGE2#..CVFC..(18S,20G,20Z)200909-201204

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-68060iZGE2#..18S,20G,20X,20Z200909-201011

PNC 47715F=TYPE B

sub04479-68061

main04479-68090iZGE2#..18S,20G,20Z201012-201204

PNC 47715F=TYPE B

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33050iZGE2#..18S,20G,20X,20Z200909-201204

PNC 47715F=TYPE B

04948FITTING KIT, DISC BRAKE, REAR

main04948-48010iZGE21200909-201005

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iZGE21200909-201005

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iZGE21200909-201005

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-32020×2iZGE21200909-201005

47715FPIN, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47715-32040×2iZGE2#..18S,20G,20X,20Z200909-201204

TYPE B

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-21031iZGE2#..18S,20Z201204

SINGAPORE SPEC

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-21031iZGE2#..18S,20G,20X,20Z200909-201204

PNC 47715F=TYPE B

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-21040iZGE21200909-201005

47731BPISTON, REAR DISC BRAKE

main47731-48020×2iZGE21200909-201005

sub47731-30120

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-21040iZGE2#..CVFC..(18S,20G,20Z)200909-201204

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10576×4iZGE22201308-201309

TYPE A:REFER ILLUST.

main90119-10379×4iZGE2#..18S,20G,20X,20Z200909-201204

15 parts on this diagram · 1 diagram in section
