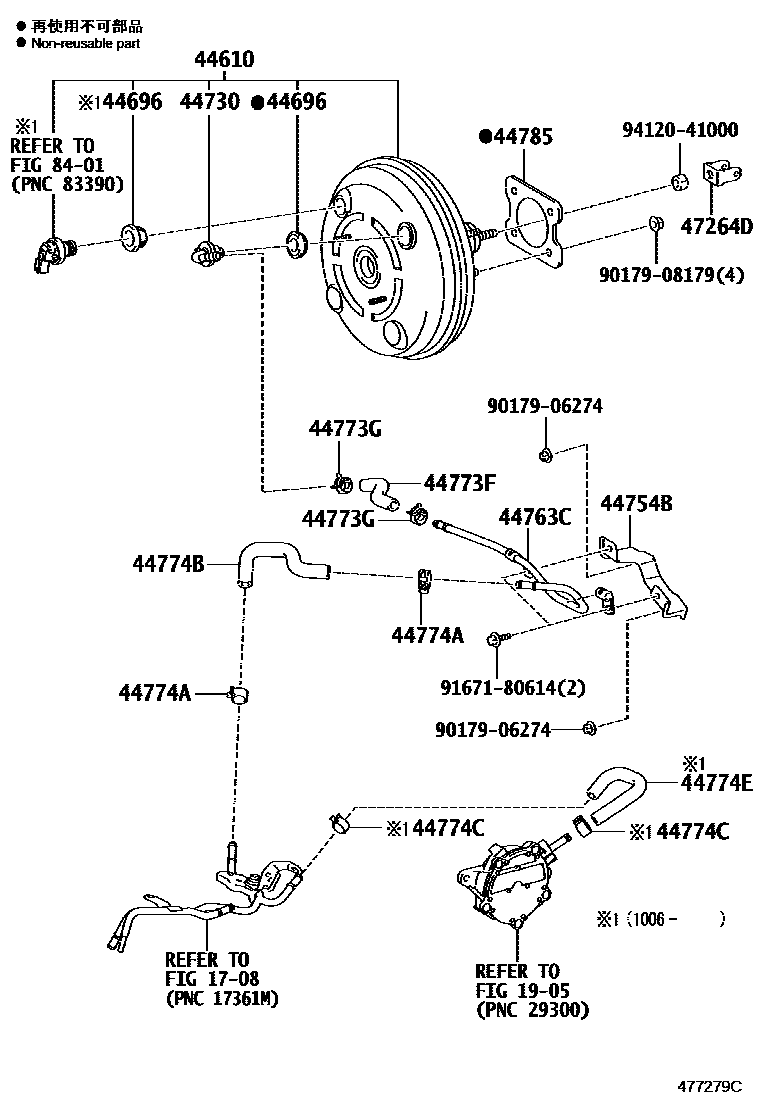

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1708VACUUM PIPING

→ Go to FIG 17-08

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-68090iZGE2#201006-201408

main44610-68091iZGE2#201408

main44610-68110iZGE21200909-201005

44696GROMMET, CHECK VALVE

main90480-24439iZGE21200909-201204

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iZGE2#200909-201204

44754BBRACKET, VACUUM TUBE

main44754-12040iZGE21200909-201204

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12460iZGE21200909-201204

main44763-68020iZGE2#201204

44773FHOSE, UNION TO CHECK VALVE

main44773-12820iZGE21200909-201204

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iZGE2#201204

main96133-41500iZGE21200909-201204

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iZGE2#201204

main96133-41500iZGE2#..CVFC200909-201204

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-12650iZGE21200909-201204

main44774-68020iZGE2#201204

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iZGE2#201006-201204

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-28320iZGE2#201006-201204

44785GASKET, BRAKE BOOSTER

main44785-12040iZGE21200909-201204

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iZGE2#200909-201011

main47264-68010iZGE2#201012-201204

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906274

main90179-06274

9017908179

main90179-08179

9167180614

main91671-80614

9412041000

main94120-41000

20 parts on this diagram · 2 diagrams in section
