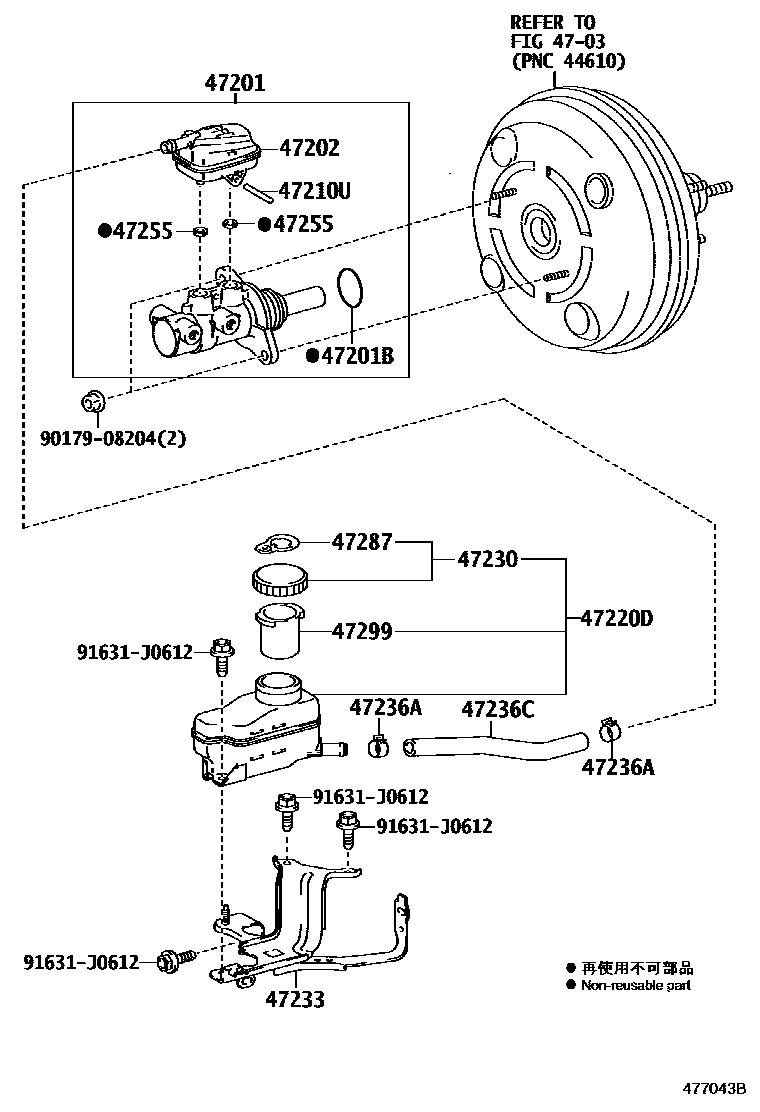

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-68040iZGE2#200909-201202

sub47201-68041

main47201-68041iZGE2#201203-201205

sub47201-68042

main47201-68042iZGE2#201205

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZGE2#200909-201204

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28330iZGE2#200909-201204

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iZGE2#200909-201204

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-68020iZGE21200909-201204

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iZGE21200909-201005

sub47230-47090

main47230-20140iZGE2#201006-201204

47233BRACKET, RESERVOIR

main47203-68010iZGE2#..CVFC200909-201204

47236ACLIP(FOR RESERVOIR TUBE)

main96133-41500iZGE2#201002-201204

main96134-51700iZGE21200909-201002

47236CHOSE, RESERVOIR TUBE

main47234-68030iZGE21200909-201204

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iZGE2#200909-201204

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iZGE20201608

main47287-20010iZGE2#200909-201608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iZGE21200909-201204

9017908204

main90179-08204

91631J0612

main91631-J0612

15 parts on this diagram · 1 diagram in section
