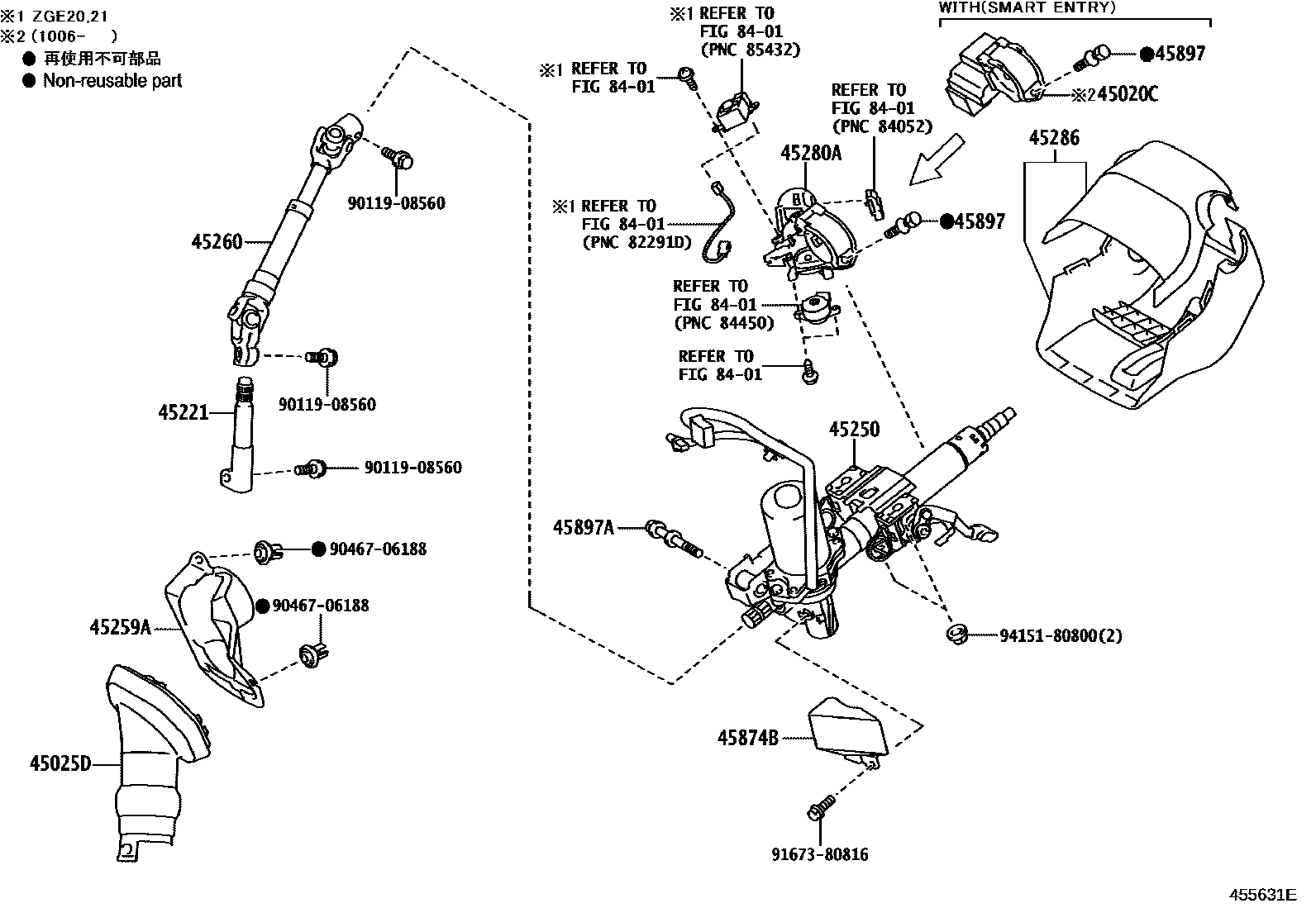

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45221SHAFT, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.GRAY,TRIM1#,4#
sub45286-12983
45874BPROTECTOR, STEERING COLUMN, NO.1
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
8401
9011908560
main90119-08560
9046706188
main90467-06188
9167380816
main91673-80816
9415180800
main94151-80800
16 parts on this diagram · 1 diagram in section
