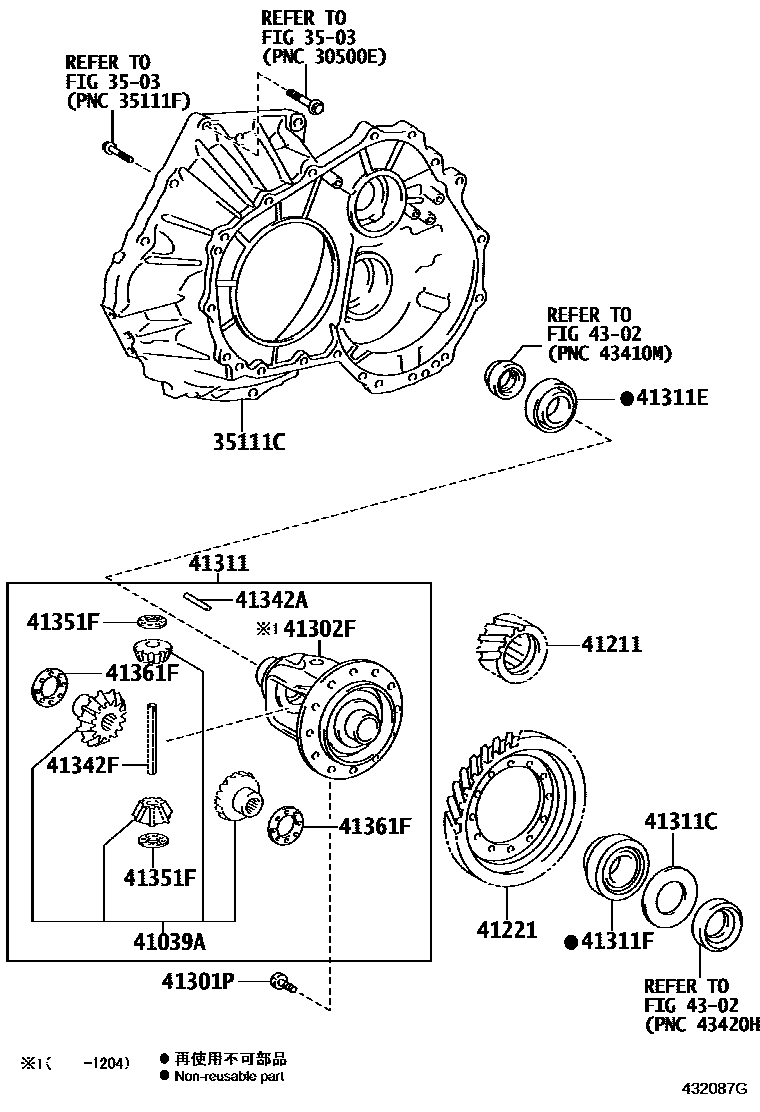

FRONT AXLE HOUSING & DIFFERENTIAL
3503
41039AGEAR KIT, DIFFERENTIAL
sub41039-28030
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41302FCASE SUB-ASSY, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.03,MARK A
T=2.06,MARK B
T=2.09,MARK C
T=2.12,MARK D
T=2.15,MARK E
T=2.18,MARK F
T=2.21,MARK G
T=2.24,MARK H
T=2.27,MARK J
T=2.30,MARK K
T=2.33,MARK L
T=2.36,MARK M
T=2.39,MARK N
T=2.42,MARK P
T=2.45,MARK Q
T=2.48,MARK R
T=2.51,MARK S
T=2.54,MARK T
T=2.57,MARK U
T=2.60,MARK V
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
T=1.725
T=1.775
T=1.825
T=1.875
T=1.925
T=1.975
T=2.025
T=2.075
T=2.125
T=2.175
T=2.225
T=2.275
T=2.325
T=2.375
T=2.425
T=1.90,MARK 0
T=1.95,MARK 1
T=2.00,MARK 2
T=2.05,MARK 3
T=2.10,MARK 4
T=2.15,MARK 5
T=2.20,MARK 6
T=2.25,MARK 7
T=2.30,MARK 8
T=2.35,MARK 9
T=2.40,MARK A
T=2.45,MARK B
T=2.50,MARK C
T=2.55,MARK D
T=2.60,MARK E
T=2.65,MARK F
T=2.70,MARK G
T=2.75,MARK H
T=2.80,MARK J
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
4302
16 parts on this diagram · 3 diagrams in section
