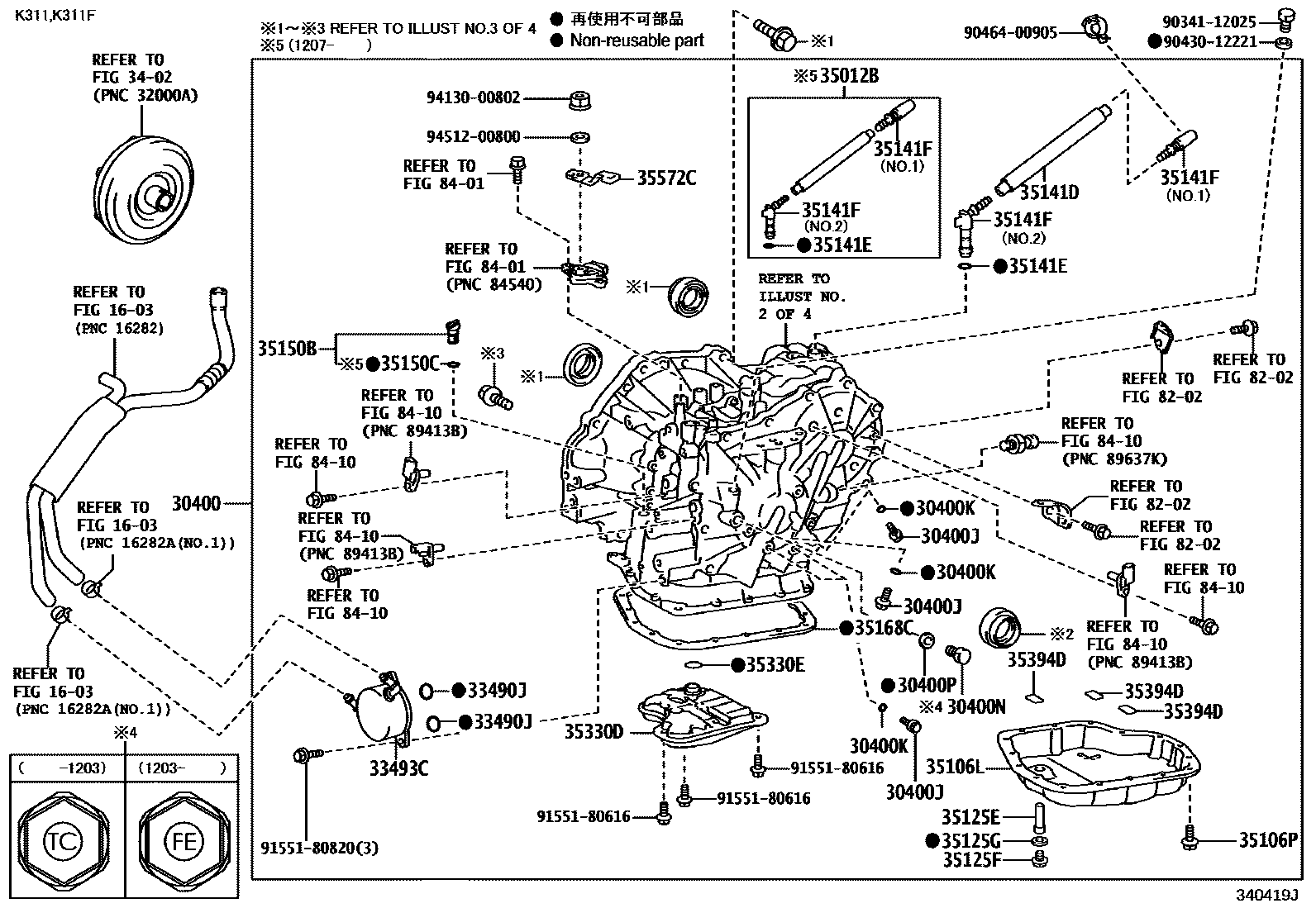

TRANSAXLE ASSY(CVT)

0001 1K311,K311F 0002 1K311,K311F 0003 1K311,K311F 0004 1K311,K311F 0005 1K111 0006 1K111 0007 1K111

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-20010iZGE21,22201006-201102

K111

main30400-20011iZGE21,22201102-201112

K111

main30400-20012iZGE22201204-201505

K111

main30400-20040iZGE20201006-201201

K311

main30400-20041iZGE20201204-201711

K311,TMH

main30400-68020iZGE20201207-201311

K311,AISIN AW

30400JPLUG, TRANSAXLE HOLE

main90341-08001×8iZGE20201201-201204

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196×8iZGE20..18X201204-201711

30400NPLUG, REFILL(CVT)

main90341-18061iZGE22201204-201212

main90341-18077iZGE22201212-201711

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iZGE2#201204-201711

33490JRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012×2iZGE20201204-201711

33493CCOOLER, TRANSMISSION OIL

main33493-20050iZGE20201204-201711

MARK 2005

main33493-20060iZGE20201207-201505

MARK 2006

3402

35012BHOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-12100iZGE20201207-201404

main3510A-44010iZGE21,22201006-201201

main3510A-44011iZGE21,22201201-201204

main3510A-44012iZGE22201204-201505

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12130iZGE20201204-201512

main35106-12131iZGE20201601-201711

main35106-44021iZGE21,22201006-201103

main35106-44022iZGE22201204-201505

sub35106-44023

sub35125-44071

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173×16iZGE20201006-201204

35125ETUBE, OVERFLOW(CVT)

main35125-12400iZGE20201204-201711

main35125-44070iZGE21,22201006-201204

sub35125-44071

35125FPLUG, OVERFLOW(CVT)

main90341-12034iZGE2#201006-201204

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iZGE2#201006-201204

35141DHOSE(FOR BREATHER PLUG)

main35121-12090iZGE20201006-201204

main35121-12100iZGE20201204-201207

35141ERING, O(FOR BREATHER PLUG)

main90301-06005iZGE2#201006-201204

main90301-06021iZGE20201605-201711

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149iZGE2#201006-201204

NO.1

main90930-03164iZGE21,22201006-201204

NO.2

main90930-03191iZGE20201006-201204

NO.2

main90930-03216iZGE20201204-201711

NO.1

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iZGE2#201006-201204

main35150-48010iZGE20201209-201404

AISIN AW

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iZGE2#201207-201711

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12090iZGE20201006-201204

main35168-12091iZGE20201402-201404

AISIN AW

main35168-20010iZGE22201204-201505

35330DSTRAINER ASSY, OIL

main35330-0W040iZGE22201204-201505

main35330-0W060iZGE20201006-201204

35330ERING, O (FOR OIL STRAINER)

main90301-22014iZGE20201006-201204

main90301-22019iZGE20201605-201711

main90301-24013iZGE21,22201006-201204

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011×3iZGE2#201204-201711

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iZGE20201006-201204

main35572-12170iZGE20201207-201404

AISIN AW

main35572-42030iZGE22201204-201505

8202

8401

8410

9034112025

main90341-12025

9043012221

main90430-12221

9046400905

main90464-00905

9155180616

main91551-80616

9155180820

main91551-80820

9413000802

main94130-00802

9451200800

main94512-00800

35 parts on this diagram · 7 diagrams in section
