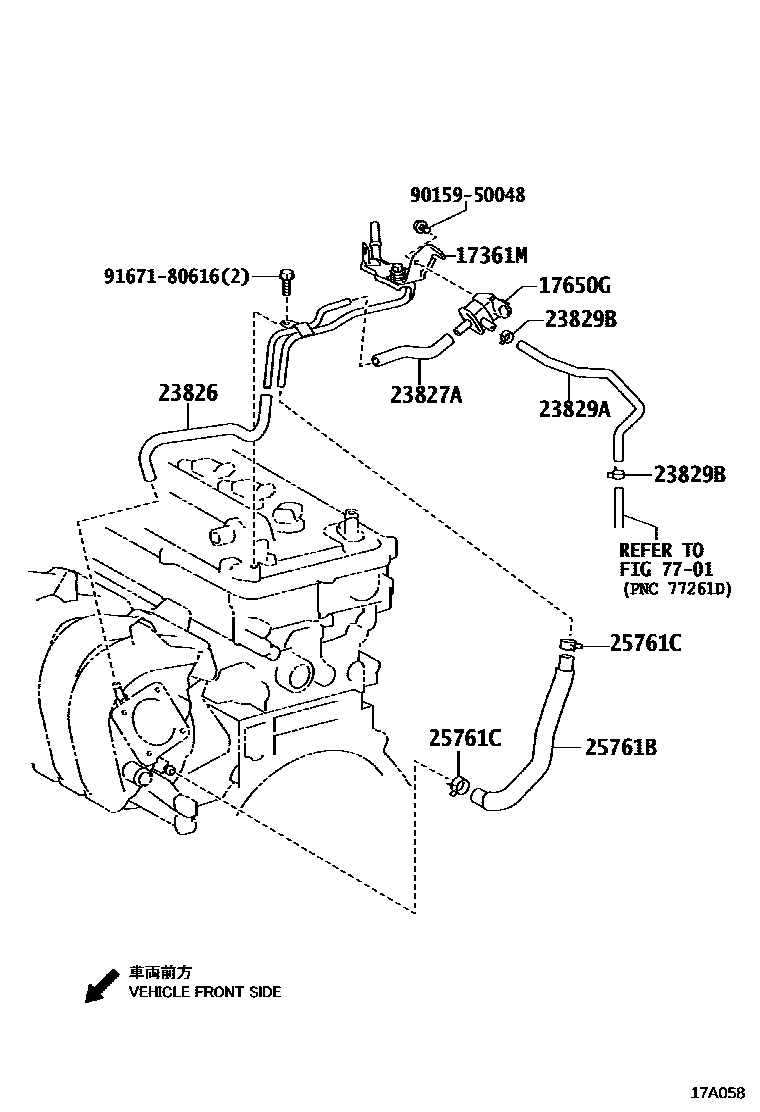

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

17361MTUBE, AIR

main17361-37010i3ZRFE..ZGE21200909-200910

main17361-37011i3ZRFE..ZGE21200910-201005

main17361-37020i2ZRFAE,3ZRFAE..ZGE2#201006-201204

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i3ZRFE..ZGE21200909-201005

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-37020i3ZRFE..ZGE21200909-200910

main23826-37021i3ZRFE..ZGE21200910-201005

main23826-37050i2ZRFAE,3ZRFAE..ZGE2#201006-201204

main23826-37220i2ZRFAE,3ZRFAE..ZGE2#201204

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37020i3ZRFE..ZGE21200909-201005

main23827-37030i2ZRFAE,3ZRFAE..ZGE2#201006-201204

23829AHOSE, FUEL VAPOR FEED

main23826-37120i3ZRFE..ZGE21200909-201005

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51100×2i3ZRFE..ZGE21200909-201005

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-37010i3ZRFE..ZGE21200909-200910

main25761-37011i3ZRFE..ZGE21200910-201005

25761CCLIP(VACCUM TRANSMITTING HOSE NO.1)

main96133-41500×2i3ZRFE..ZGE21200910-201005

main96136-41801×2i3ZRFE..ZGE21200909-200910

7701

9015950048

main90159-50048

9167180616

main91671-80616

11 parts on this diagram · 4 diagrams in section
