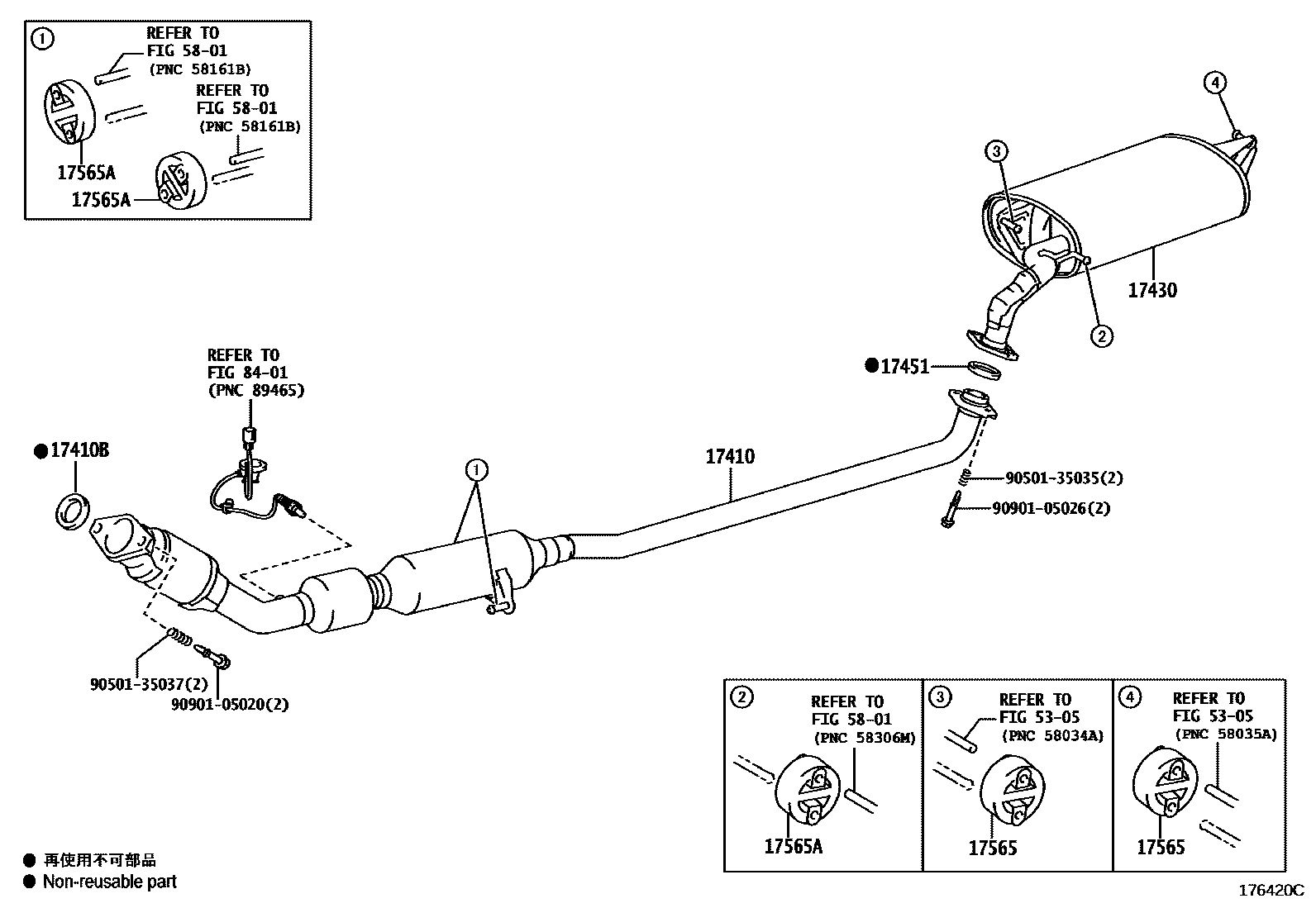

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-37350i2ZRFAE..ZGE20201006-201204

main17410-37360i3ZRFE..ZGE21200909-201005

main17410-37370i3ZRFAE..ZGE22201006-201204

main17410-37670i2ZRFAE..ZGE20201204

main17410-37690i3ZRFAE..ZGE22201204-201505

17410BGASKET, EXHAUST PIPE

main17451-28040i3ZRFE..ZGE21200909-201005

sub17451-28041

17430PIPE ASSY, EXHAUST, TAIL

main17430-37340i2ZRFAE,3ZRFAE..ZGE20,21200909-201204

main17430-37350i3ZRFAE..ZGE22201204-201505

17451GASKET, EXHAUST PIPE

main17451-37010i3ZRFE..ZGE21200909-201005

sub17451-21030

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040×2i3ZRFE..ZGE21200909-201005

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22030×3i3ZRFE..ZGE21200909-201005

5305

5801

8401

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

13 parts on this diagram · 2 diagrams in section
