WATER PUMP

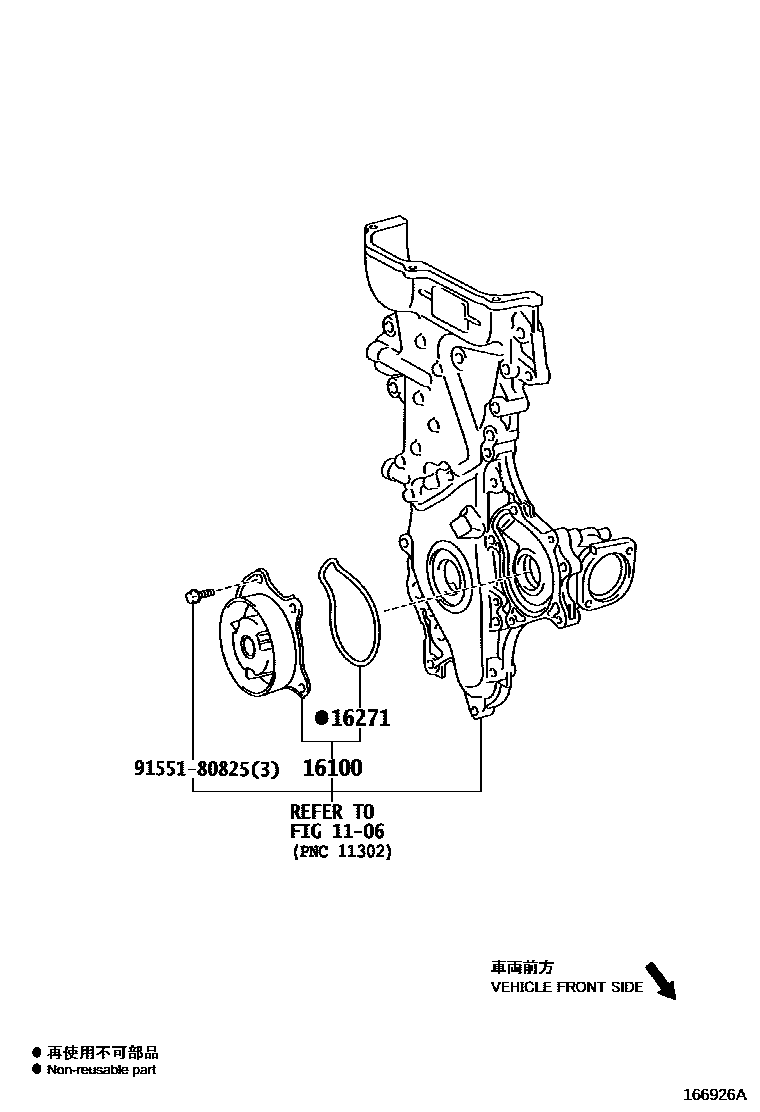

Parts diagram

1106

16100PUMP ASSY, ENGINE WATER

main16100-39466i200909-201005

main16100-39565i201204

16271GASKET, WATER PUMP

main16271-37010i200909-201005

main16271-37030i201204

9155180825

main91551-80825

4 parts on this diagram · 2 diagrams in section
