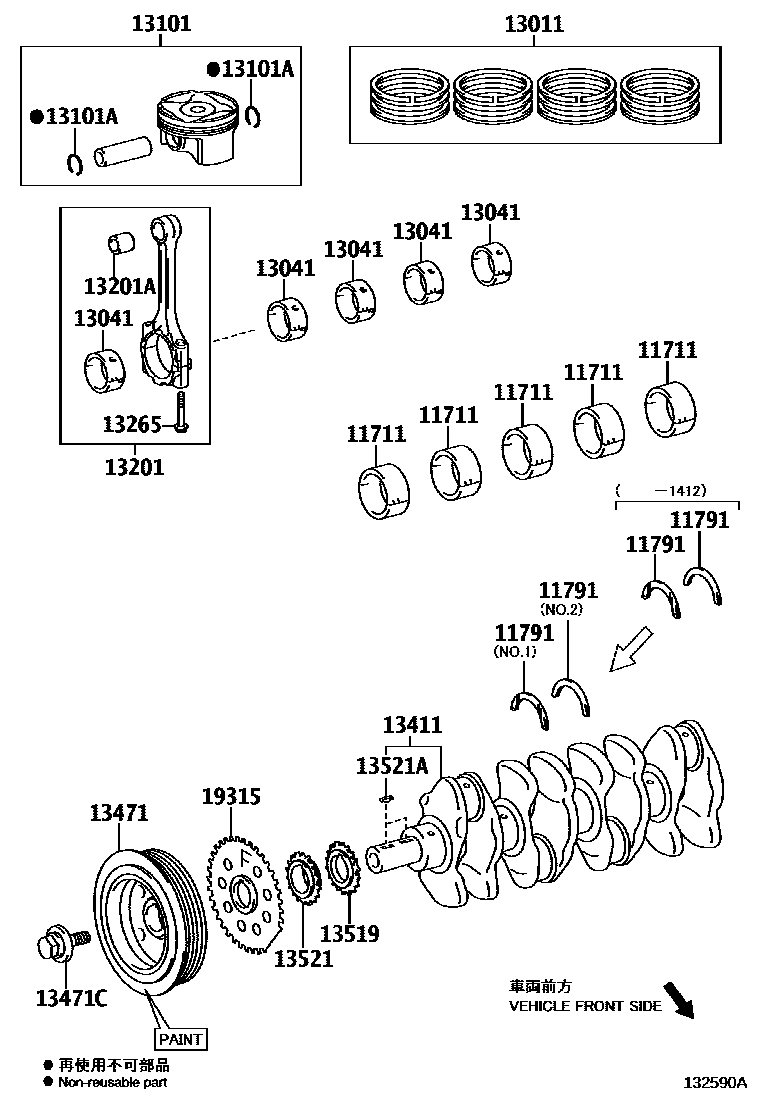

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-37020-01×5i3ZRFE..ZGE21200909-201005

MARK1,REFER REPAIR MANUAL

main11701-37020-02×5i3ZRFE..ZGE21200909-201005

MARK2,REFER REPAIR MANUAL

main11701-37020-03×5i2ZRFAE,3ZRFAE..ZGE2#200909-201204

MARK3,REFER REPAIR MANUAL

main11701-37020-04×5i3ZRFE..ZGE21200909-201005

MARK4,REFER REPAIR MANUAL

main11701-37021-01×5i2ZRFAE,3ZRFAE..ZGE2#201304

MARK1,REFER REPAIR MANUAL

main11701-37021-02×5i2ZRFAE,3ZRFAE..ZGE2#201304

MARK2,REFER REPAIR MANUAL

main11701-37021-03×5i2ZRFAE,3ZRFAE..ZGE2#201304

MARK3,REFER REPAIR MANUAL

main11701-37021-04×5i2ZRFAE,3ZRFAE..ZGE2#201304

MARK4,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i2ZRFAE,3ZRFAE..ZGE2#200909-201204

STD

main11791-37010×2i2ZRFAE,3ZRFAE..ZGE2#201310-201412

STD

13011RING SET, PISTON

main13011-37090i2ZRFAE..ZGE20201006-201204

STD

main13011-37120i3ZRFAE..ZGE22201204-201502

STD

main13011-37130i3ZRFE..ZGE21200909-201005

STD

main13011-37180i2ZRFAE..ZGE20201204-201409

STD

main13011-37300i2ZRFAE..ZGE20201409-201711

STD

main13011-37320i3ZRFAE..ZGE22201502-201505

STD

13041BEARING, CONNECTING ROD

main13041-37010-01×4i2ZRFAE..ZGE20201204

MARK1,REFER REPAIR MANUAL

main13041-37010-02×4i2ZRFAE..ZGE20201204

MARK2,REFER REPAIR MANUAL

main13041-37010-03×4i2ZRFAE..ZGE20201204

MARK3,REFER REPAIR MANUAL

main13041-37030-01×4i3ZRFAE..ZGE21,22200909-201204

MARK1,REFER REPAIR MANUAL

main13041-37030-02×4i3ZRFAE..ZGE22201204-201505

MARK2,REFER REPAIR MANUAL

main13041-37030-03×4i3ZRFAE..ZGE22201204-201505

MARK3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-37071×4i2ZRFAE..ZGE20201006-201204

STD

main13101-37090×4i3ZRFAE..ZGE21,22200909-201204

STD

main13101-37110×4i2ZRFAE..ZGE20201204-201409

STD

main13101-37150×4i3ZRFAE..ZGE22201204-201502

STD

main13101-37300×4i2ZRFAE..ZGE20201409-201711

STD

main13101-37330×4i3ZRFAE..ZGE22201502-201505

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-20064×8i3ZRFE..ZGE21200909-201005

13201ROD SUB-ASSY, CONNECTING

main13201-09A30×4i2ZRFAE..ZGE20201204

MADE IN EUROPE

main13201-39185×4i2ZRFAE..ZGE20201006-201204

main13201-39205×4i3ZRFAE..ZGE21,22200909-201204

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73151×4i3ZRFE..ZGE21200909-201005

13265BOLT, CONNECTING ROD

main13265-22020×8i3ZRFE..ZGE21200909-201005

sub13265-22040

13411CRANKSHAFT

main13401-0T060i2ZRFAE..ZGE20201101-201204

(L)

main13401-0T061i2ZRFAE..ZGE20201312

(L)

main13401-37020i2ZRFAE..ZGE20201101-201204

(J)

main13401-37021i2ZRFAE..ZGE20201309

(J)

main13401-37031i3ZRFAE..ZGE22201204-201309

main13401-37032i3ZRFAE..ZGE22201309-201505

13471PULLEY, CRANKSHAFT

main13470-37020i2ZRFAE,3ZR#..ZGE2#200909-201110

main13470-37041i2ZRFAE,3ZRFAE..ZGE2#201310-201708

main13470-37042i2ZRFAE..ZGE20201709

main13470-37050i2ZRFAE,3ZRFAE..ZGE2#201110-201203

YELLOW,PINK PAINTED

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i3ZRFE..ZGE21200909-201005

main90119-14175i2ZRFAE..ZGE20201505

13519GEAR, OIL PUMP DRIVE

main13519-37010i3ZRFE..ZGE21200909-201005

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-37010i2ZRFAE..ZGE20201006-201204

main13521-37011i2ZRFAE..ZGE20201407

main13521-37020i3ZRFAE..ZGE22201204-201505

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-04003×2i3ZRFE..ZGE21200909-201005

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-37020i3ZRFE..ZGE21200909-201005
