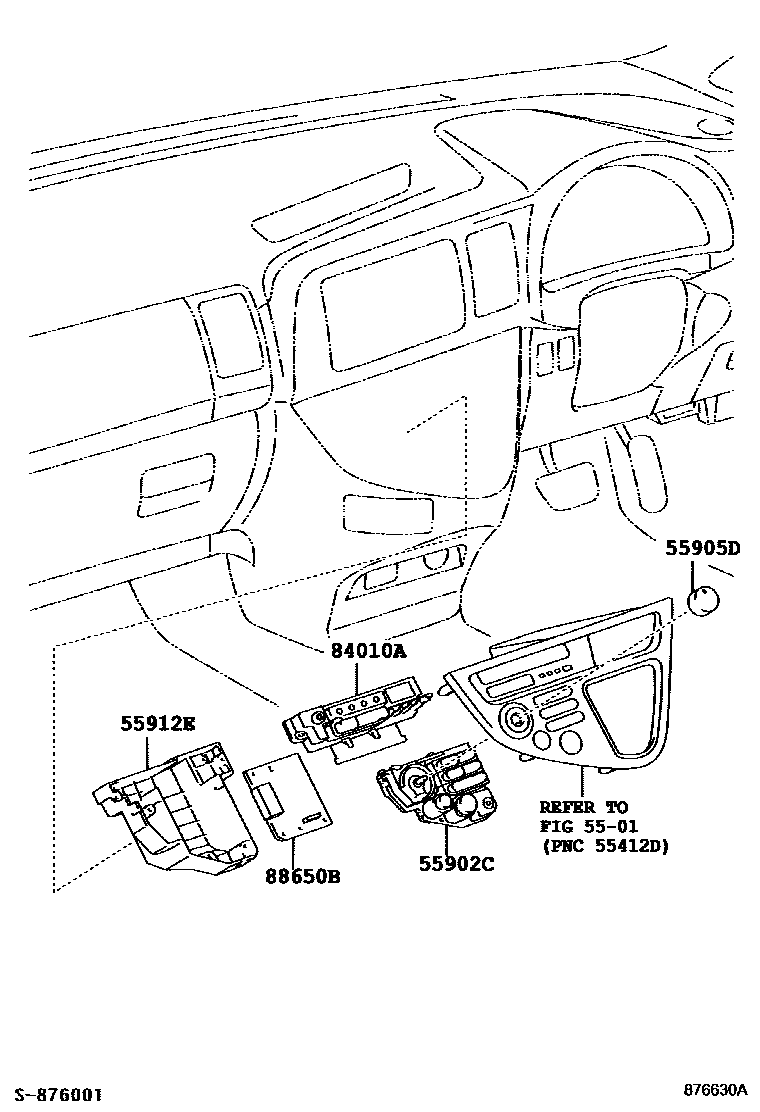

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1CONTROL PANEL 0004 1CONTROL PANEL 0005 1AIR DUCT 0006 1AIR DUCT 0007 1SENSOR 0008 1SENSOR

5501

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-0M010iANE1#..TAIW200408-200703

main55902-68010iANE11..TH200312-200512

55905DKNOB SUB-ASSY, CONTROL

main55905-0M010iANE1#..TAIW200408-200703

main55905-0M020iANE1#..TAIW200703

main55905-68010iANE11200312-200512

main55905-68020iANE11,ZNE10..RHD200512

55912EBASE, HEATER CONTROL, LOWER

main55912-0M010iANE1#..TAIW200408-200703

main55912-0M020iANE1#..20E,ZAER200408-200703

2.0G&HEATER CONT. PANEL-METALIC

main55912-0M020iANE1#..20E,ZAER200408-200703

2.0G

main55912-0M030iANE1#..TAIW200703

main55912-0M040iANE12..20E200703

WITH(TAIWAN HI PACKAGE II)

main55912-68010iANE11200312-200512

main55912-68020iANE11,ZNE10..RHD200512

84010ACONTROL & PANEL ASSY, INTEGRATION

main84012-0M010iANE1#..TAIW200408-200703

main84012-0M020iANE12..20E200408-200703

2.0G&HEATER CONT. PANEL-METALIC

main84012-0M020iANE1#..20E,ZAER200408-200703

2.0G

main84012-0M030iANE1#..TAIW200703

main84012-0M040iANE12..20E200703

WITH(TAIWAN HI PACKAGE II)

main84012-68010iANE11200312-200512

main84012-68020iANE11,ZNE10..RHD200512

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-68070iANE11200312-200505

main88650-68071iANE11..TH200502-200703

main88650-68091iZNE10200804-200903

main88650-68100iANE1#200512-200901

sub88650-68101

main88650-68101iANE1#200902

6 parts on this diagram · 8 diagrams in section
