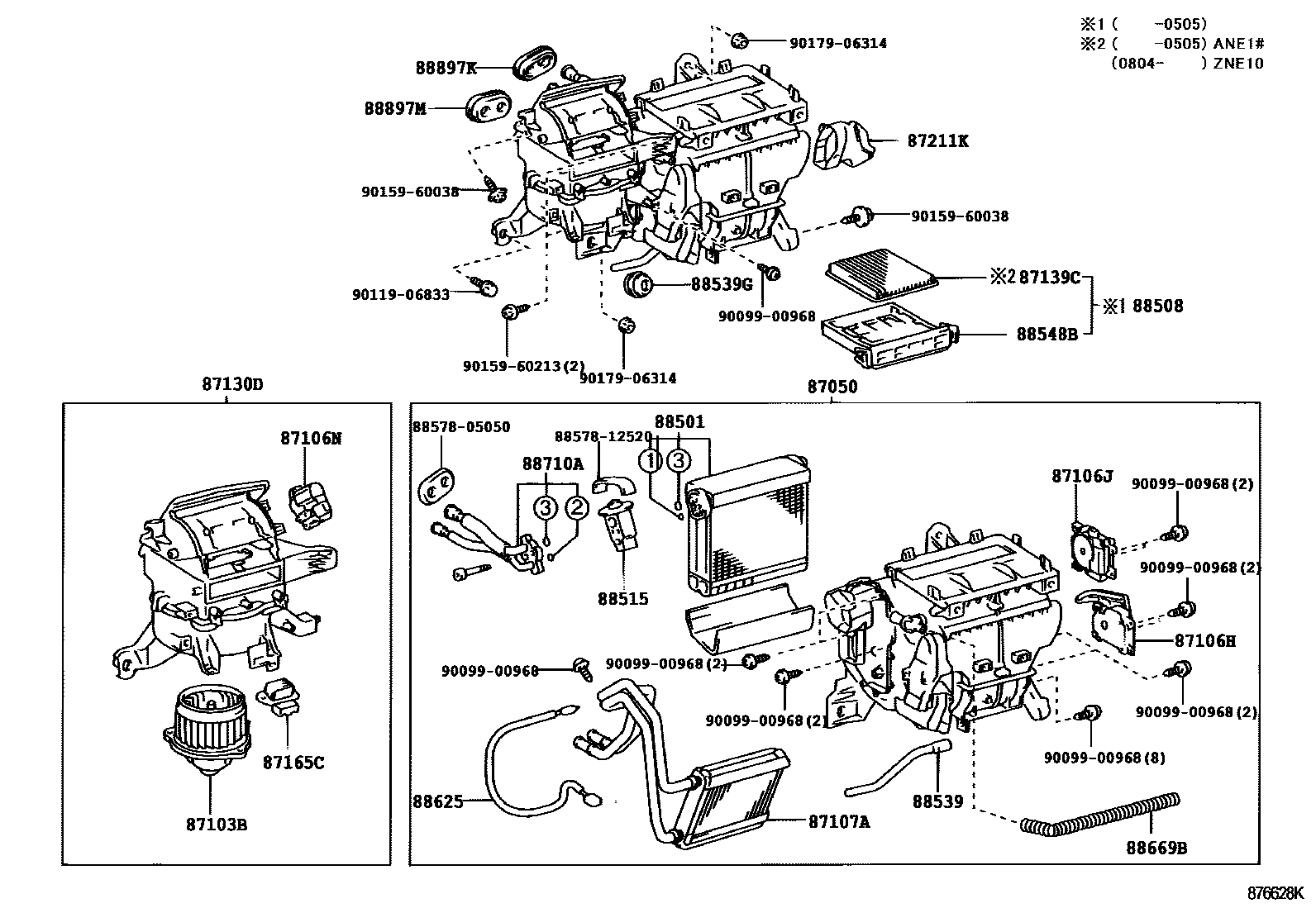

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87139CFILTER, CLEAN AIR
87165CCONTROL, BLOWER MOTOR
87211KDUCT, AIR
PASSENGER SIDE
DRIVER SIDE
88508FILTER SUB-ASSY, CLEAN AIR
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88548BCASE, AIR FILTER
88710ATUBE ASSY, AIR CONDITIONER
88897KGROMMET, (FOR COOLER PIPE)
88897MGROMMET (FOR HEATER PIPE)
8857805050PAKING, COOLER AIR DUCT
8857812520PAKING, COOLER AIR DUCT
main88578-12520
9009900968
main90099-00968
9011906833
9015960038
9015960213
9017906314
28 parts on this diagram · 3 diagrams in section
