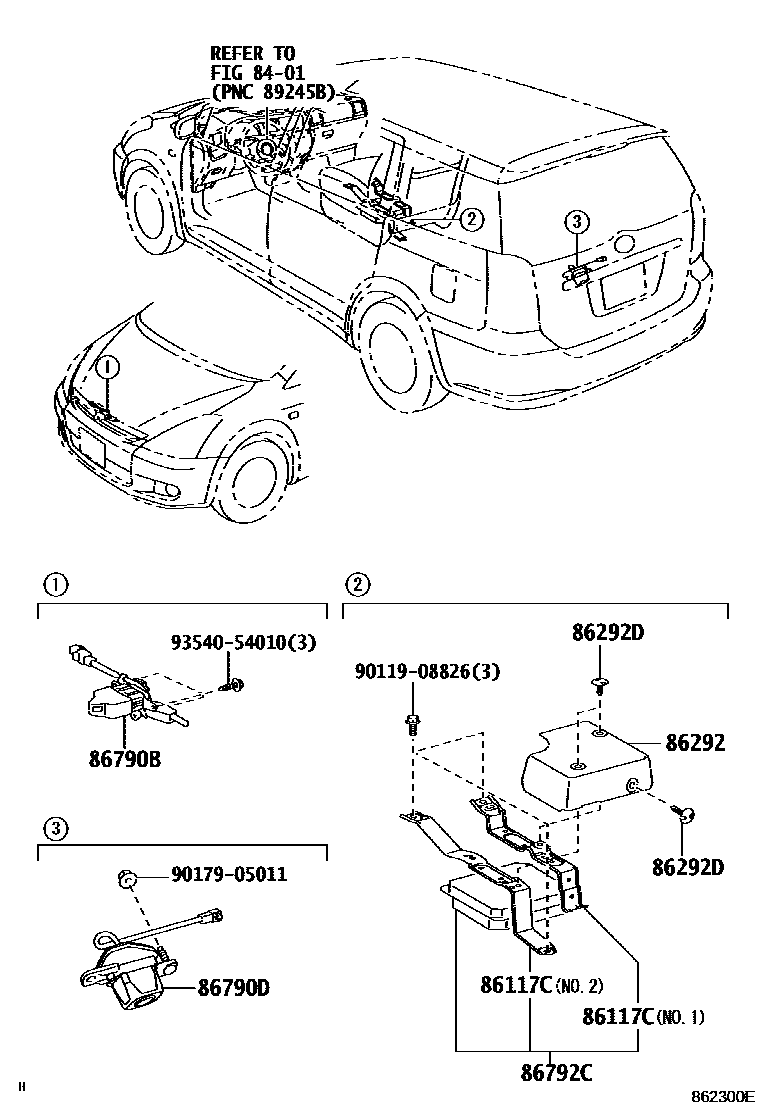

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

8401

86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2

main86117-68050iANE1#..20E,ZAER200408-200703

2.0G,N0.1

main86117-68090iANE1#..20E,ZAER200408-200703

2.0G,N0.2

86292COVER, TELEVISION SET

main86292-68020iANE1#..20E,ZAER200408-200703

2.0G

86292DCLIP(FOR TELEVISION SET COVER)

main90467-08186-C0×3iANE1#..20E,ZAER200408-200703

2.0G,BLACK

86790BCAMERA ASSY, TELEVISION, FR

main86790-68030iANE1#..20E,ZAER200408-200703

2.0G

main86790-68060iANE12..20E200703-200909

WITH(TAIWAN HI PACKAGE II)

86790DCAMERA ASSY, TELEVISION, RR

main86790-68020iANE12..20E200408-200409

2.0G

main86790-68050iANE12..20E200703-200909

WITH(TAIWAN HI PACKAGE II)

sub86790-68051

86792CCOMPUTER, PARKING ASSIST

main86792-68050iANE12..20E200408-200409

2.0G

main86792-68051iANE12..20E200703

WITH(TAIWAN HI PACKAGE II)

9011908826

main90119-08826

9017905011

main90179-05011

9354054010

main93540-54010

10 parts on this diagram · 2 diagrams in section
