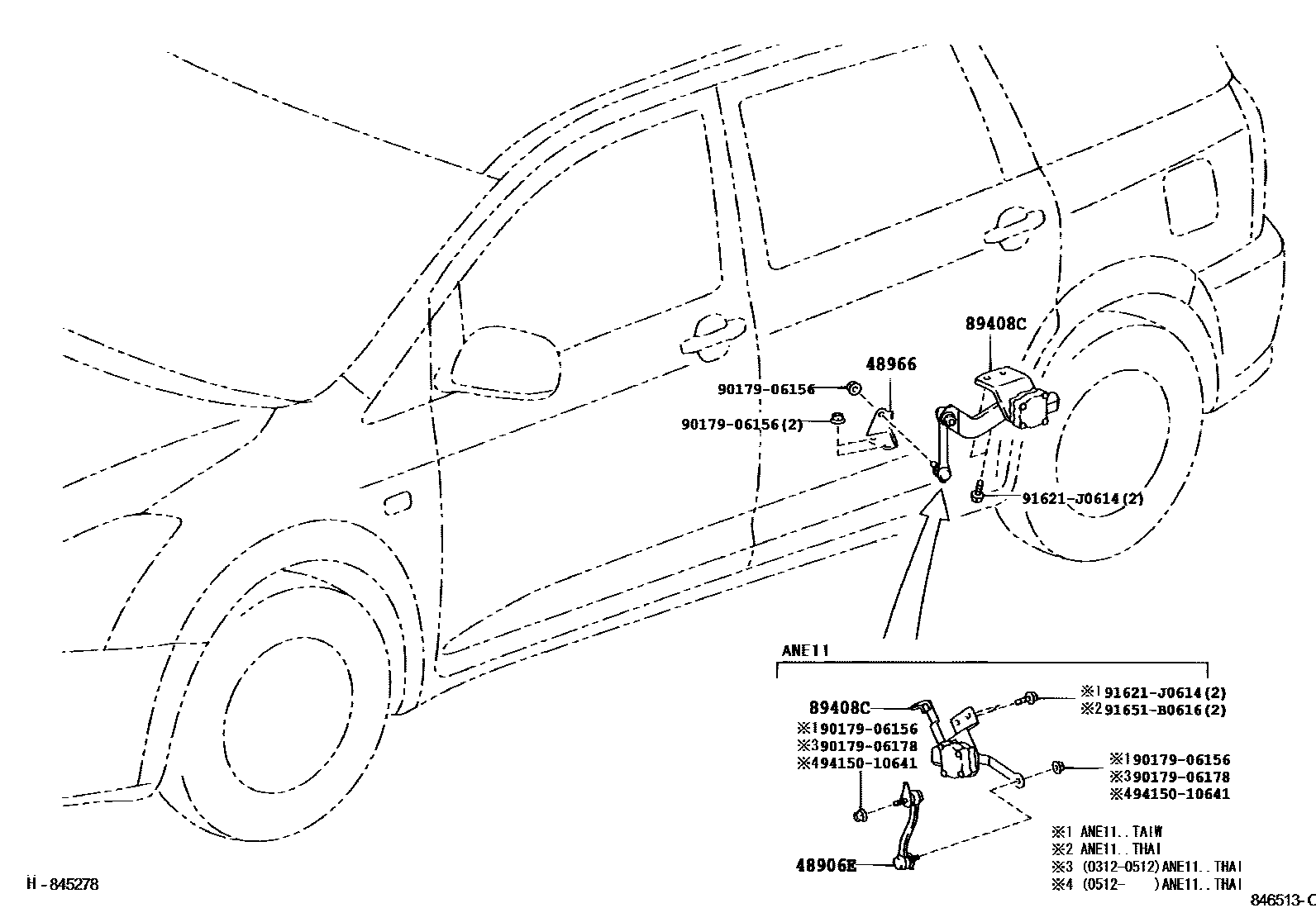

ELECTRONIC HEIGHT CONTROL

48906ELINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR

main48906-68010iANE11..TH¥1,740200312-200512

S PACKAGE

48966BRACKET, SENSOR CONNECTING, REAR

main48966-68010iANE12..20E¥370200703

89408CSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-68010iANE12..20E¥41,500200703

main89408-68020iANE11..TH¥41,500200312-200512

S PACKAGE

9017906156

main90179-06156¥140

9017906178

main90179-06178¥100

91621J0614

main91621-J0614¥110

91651B0616

main91651-B0616¥80

9415010641

main94150-10641¥60

8 parts on this diagram · 1 diagram in section
