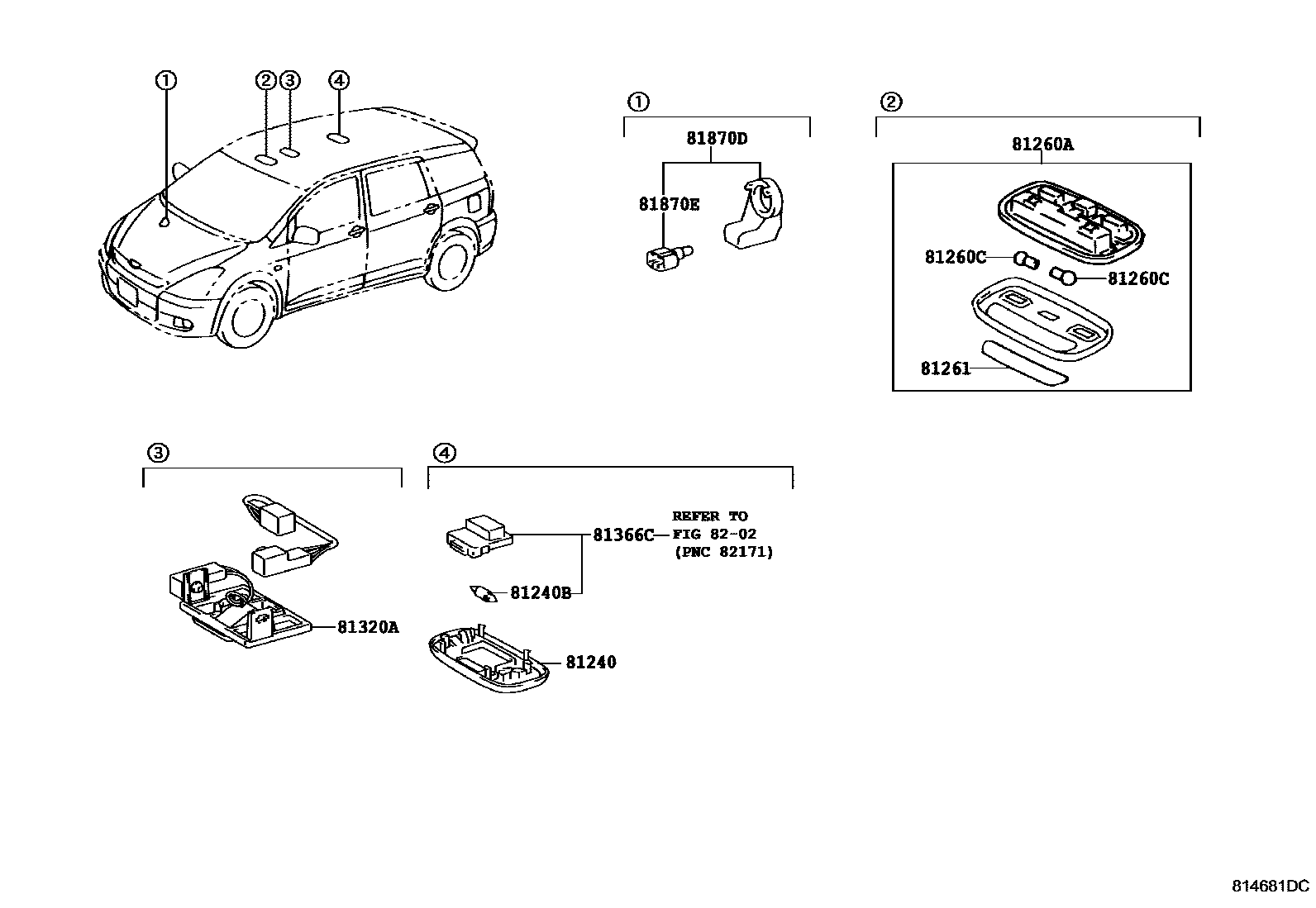

INTERIOR LAMP

0001 1 0002 1 0003 1

81240LAMP ASSY, ROOM, NO.1

main81240-68010-A0iANE12..20E200703-200909

IVORY,TRIM0#

main81240-68010-B0iANE12..20J;ANE11..06S..TH200312-200910

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iANE12..20J;ANE11..06S..TH200312-200910

12V 8W

81260ALAMP ASSY, MAP

main81260-16061-B3iANE11..TH200312-200910

LT.GRAY,TRIM1#

sub81260-16061

81260CBULB(FOR MAP LAMP)

main90084-98049iANE1#..TAIW200408-200909

12V 8W

main90981-12005iANE11,ZNE10..RHD200312-200910

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-16060iANE11..TH200312-200910

81320ALAMP ASSY, STEERING SPOT

main81320-68010-B0iANE11,ZNE10..RHD200512-200910

LT.GRAY,TRIM1#

81366CBASE, ROOM LAMP SWITCH

main81366-68010iANE1#,ZNE10200512-200910

81870DLAMP ASSY, KEY CYLINDER

main81870-12020iZNE10200804-200903

81870EBULB, KEY CYLINDER LAMP

main90010-01056iZNE10200804-200903

14V 1.4W

8202

10 parts on this diagram · 3 diagrams in section
