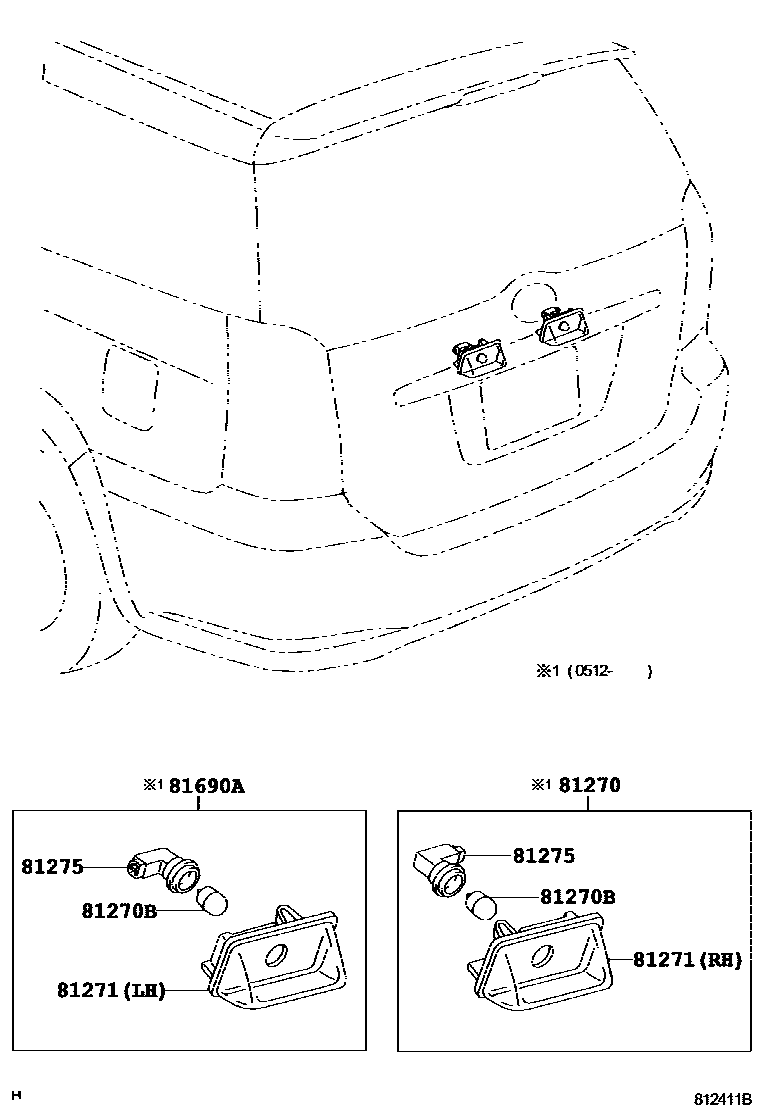

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-02030iANE1#..TAIW200408-200703

RH

sub81270-02031

main81270-12501iANE11..TH200512-200703

main81270-12502iANE11,ZNE10..RHD200704-200910

sub81270-12503

main81690-02020iANE1#..TAIW200703-200909

LH

sub81690-02021

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iANE11..TH200312-200512

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-12501iANE11..TH200312-200512

RH

main81271-12502iANE11,ZNE10..RHD200704-200910

RH

sub81271-12503

main81691-12131iANE11,ZNE10..RHD200512-200910

LH

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12501×2iANE11,ZNE10..RHD200512-200910

main81275-8C000×2iANE1#..TAIW200408-200703

81690ALAMP ASSY, LICENSE PLATE, LH

main81690-12131iANE11,ZNE10..RHD200512

5 parts on this diagram · 2 diagrams in section
