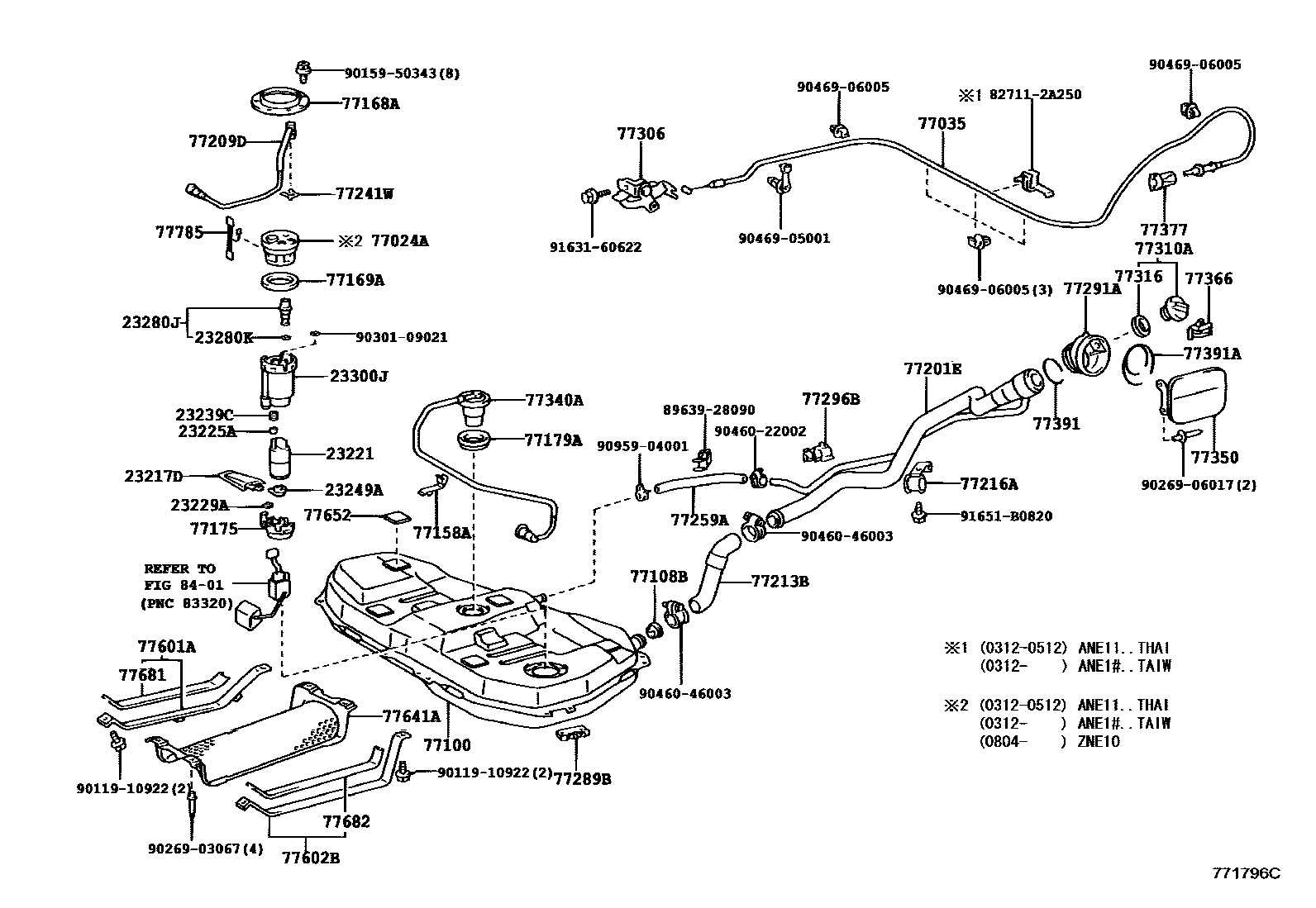

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23225ASPACER, FUEL PUMP
23229ACLIP(FOR FUEL PUMP FILTER)
23239CSEAL, FUEL PUMP FILTER
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
sub77001-0M011
sub77001-0M012
sub77001-0M013
sub77001-68011
sub77001-68012
sub77001-68013
sub77001-68031
77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK
77158ASUPPORT, TANK SUCTION TUBE
77168APLATE, FUEL TANK VENT TUBE SET
(L)
(J)
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77179AGASKET, FUEL TANK BREATHER TUBE
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77241WCLIP, TUBE JOINT
77259AHOSE, FUEL(FOR BREATHER TUBE)
77289BCLAMP, FUEL TUBE, NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77641APROTECTOR, FUEL TANK, NO.1
77652CUSHION, FUEL TANK, NO.1
(L)
(J)
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77785HARNESS, FUEL PUMP
8401
827112A250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2A250
8963928090WIRE, BRAKE CONTROL
main89639-28090
9011910922
main90119-10922
9015950343
main90159-50343
9026903067
main90269-03067
9026906017
main90269-06017
9030109021
main90301-09021
9046022002
main90460-22002
9046046003
main90460-46003
9046905001
main90469-05001
9046906005
main90469-06005
9095904001
main90959-04001
9163160622
main91631-60622
91651B0820
main91651-B0820
58 parts on this diagram · 4 diagrams in section
