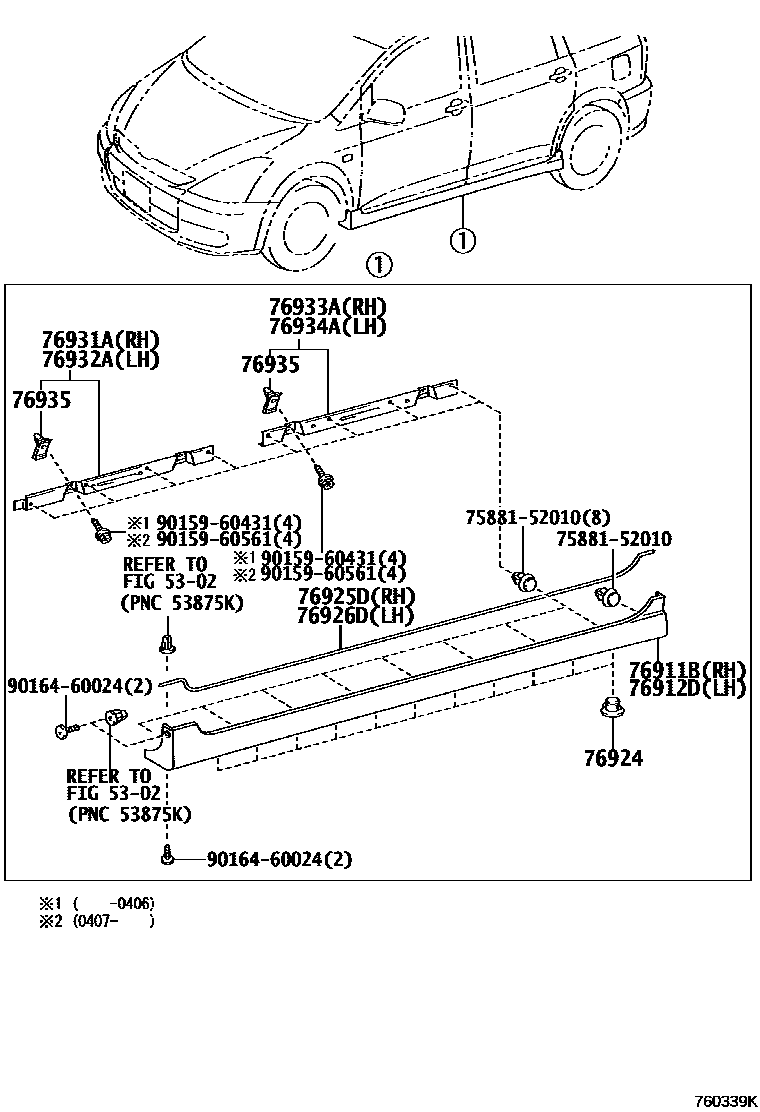

MUDGUARD & SPOILER
5302
76911BMUDGUARD, SIDE, RH
76912DMUDGUARD, SIDE, LH
76924RETAINER, SIDE MUDGUARD, NO.2
76925DPROTECTOR, SIDE MUDGUARD, RH
LT. GRAY,070 ,1E7
LT. GRAY,040 ,1D4
LT. GRAY,040 ,1D4 ,1F7
GRAY,1D0 ,1D4 ,4R0 ,586
BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4
BLACK,1E9 ,3P2 ,4R0 ,8Q6
BLACK,1E9 ,209 ,4R0 ,8S6
BLACK,209 ,3N8 ,3P0 ,8N8
76926DPROTECTOR, SIDE MUDGUARD, LH
LT. GRAY,040 ,1D4
LT. GRAY,070 ,1E7
LT. GRAY,040 ,1D4 ,1F7
GRAY,1D0 ,1D4 ,4R0 ,586
BLACK,1E9 ,3P2 ,4R0 ,8Q6
BLACK,1E9 ,209 ,4R0 ,8S6
BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4
BLACK,209 ,3N8 ,3P0 ,8N8
76931ABRACKET, SIDE MUDGUARD, NO.1 RH
76932ABRACKET, SIDE MUDGUARD, NO.1 LH
76933ABRACKET, SIDE MUDGUARD, NO.2 RH
76934ABRACKET, SIDE MUDGUARD, NO.2 LH
76935RETAINER, SIDE MUDGUARD, NO.7
7588152010SPACER, REAR COMBINATION RIM, INSIDE RH
main75881-52010
9015960431
main90159-60431
9015960561
main90159-60561
9016460024
main90164-60024
15 parts on this diagram · 2 diagrams in section
