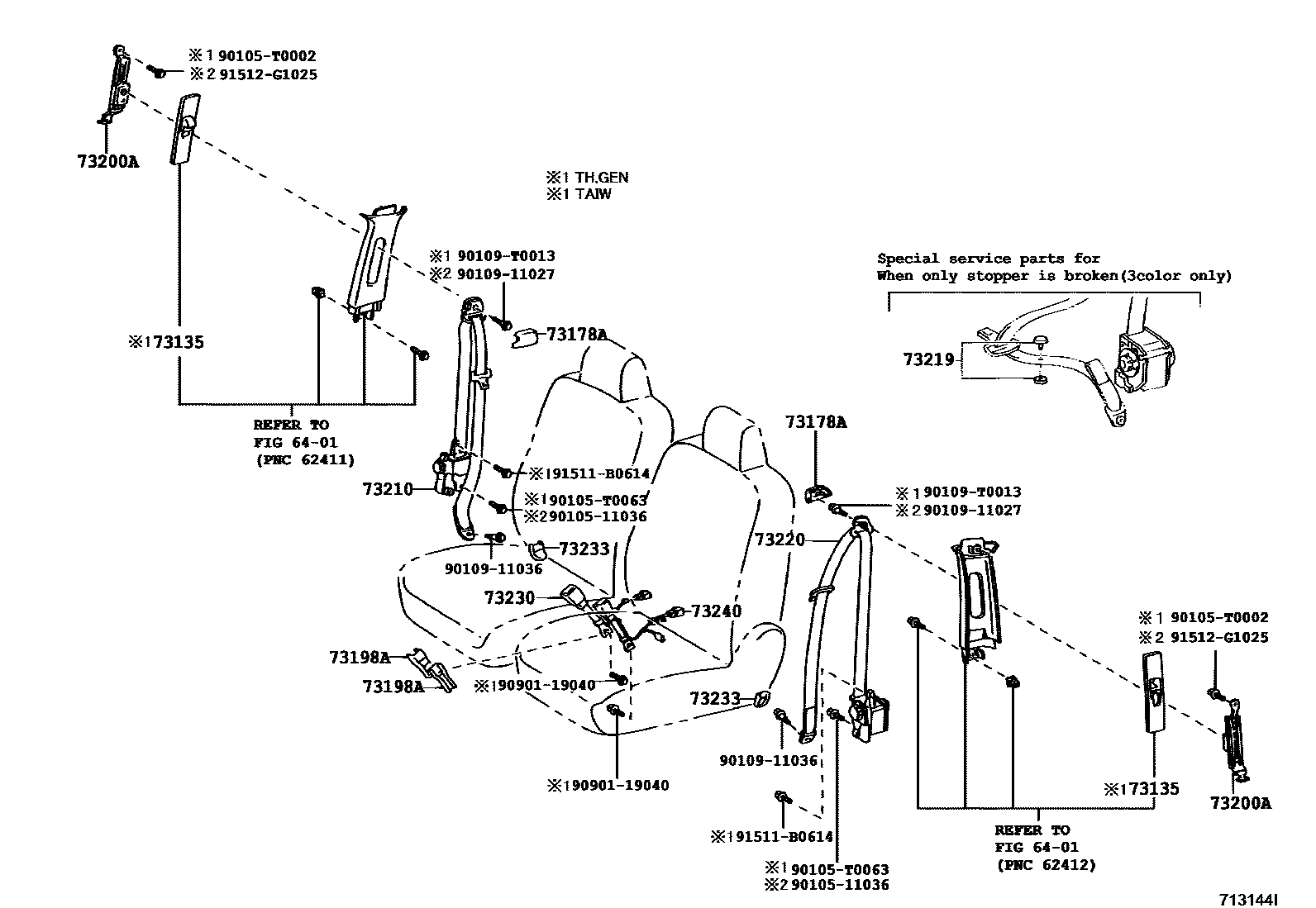

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.1 SEAT 0004 1REAR NO.2 SEAT 0005 1SEAT ASSY, CHILD RESTRAINT

6401

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-28020-B0iANE11..TH200312-200910

LT.GRAY,TRIM1#

sub73135-28020

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-B3iANE11,ZNE10..RHD200312-200910

LT.GRAY,TRIM1#

sub73178-33020

main73178-34010-A1iANE12..20E200408-200909

IVORY,TRIM0#

sub73178-34010

main73178-34010-B8iANE1#..TAIW200408-200909

LT.GRAY,TRIM1#

sub73178-34010

73198ACOVER, FRONT SEAT BELT INNER ANCHOR, RH

main73198-68010-C0iANE11..06S..TH200312-200910

BLACK,TRIM1#

sub73198-68010

main73198-68010-C0iANE11..06S..TH200512-200910

LIMITED PACKAGE,BLACK,TRIM1#

sub73198-68010

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02020-B0iANE11200312-200404

LT.GRAY,TRIM1#,THAILAND SPEC

sub73200-0K010

main73200-02040-A0iANE12..20E200408-200909

IVORY,TRIM0#

main73200-02040-B0iANE1#..TAIW200408-200909

LT.GRAY,TRIM1#

main73200-02090-B0iANE11..TH200512-200910

LT.GRAY,TRIM1#

main73200-02090-B0iANE11..TH200405-200512

LT.GRAY,TRIM1#,THAILAND SPEC

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0M010-A0iANE12..20E200408-200909

IVORY,TRIM0#

main73210-0M010-C0iANE1#..TAIW200408-200909

BLACK,TRIM1#

main73210-68010-C0iANE11..TH200312-200910

BLACK,TRIM1#

sub73210-68010

73219STOPPER, TONGUE PLATE

main73219-33010iANE1#,ZNE10200312-200910

BLACK

main73219-33020iANE1#,ZNE10200312-200910

GRAY

main73219-33030iANE1#..TAIW200312-200910

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0M010-A0iANE1#..20E,ZAER200408-200909

IVORY,TRIM0#

main73220-0M010-C0iANE1#..TAIW200408-200909

BLACK,TRIM1#

main73220-68011-C0iANE11..TH200312-200910

BLACK,TRIM1#

sub73220-68011

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0M020-A0iANE12..20E200408-200909

IVORY,TRIM0#

main73230-0M020-C0iANE1#..TAIW200408-200909

BLACK,TRIM1#

main73230-68010-C0iANE11,ZNE10..RHD200312-200910

BLACK,TRIM1#

sub73230-68010

73233COVER, LAP BELT OUTER ANCHOR

main73233-02020-B0iANE11..TH200312-200910

DK.GRAY,TRIM1#

main73233-02020-B0iANE11,ZNE10..RHD200512-200903

LIMITED PACKAGE,DK.GRAY,TRIM1#

main73233-06020-A0iANE1#..20E,ZAER200408-200909

IVORY,TRIM0#

main73233-06020-B1iANE1#..TAIW200408-200909

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0M010-C0iANE12..20J200408-200909

BLACK,TRIM1#

main73230-0M030-A0iANE12..20E200408-200909

IVORY,TRIM0#

main73230-0M030-C0iANE12..20E200408-200909

BLACK,TRIM1#

main73230-0M030-C0iANE12..20E200703-200909

WITH(TAIWAN Z HI PACKAGE),BLACK,TRIM1#

main73230-68020-C0iANE11..TH200312-200910

BLACK,TRIM1#

9010511036

main90105-11036

90105T0002

main90105-T0002

90105T0063

main90105-T0063

9010911027

main90109-11027

9010911036

main90109-11036

90109T0013

main90109-T0013

9090119040

main90901-19040

91511B0614

main91511-B0614

91512G1025

main91512-G1025

20 parts on this diagram · 5 diagrams in section
