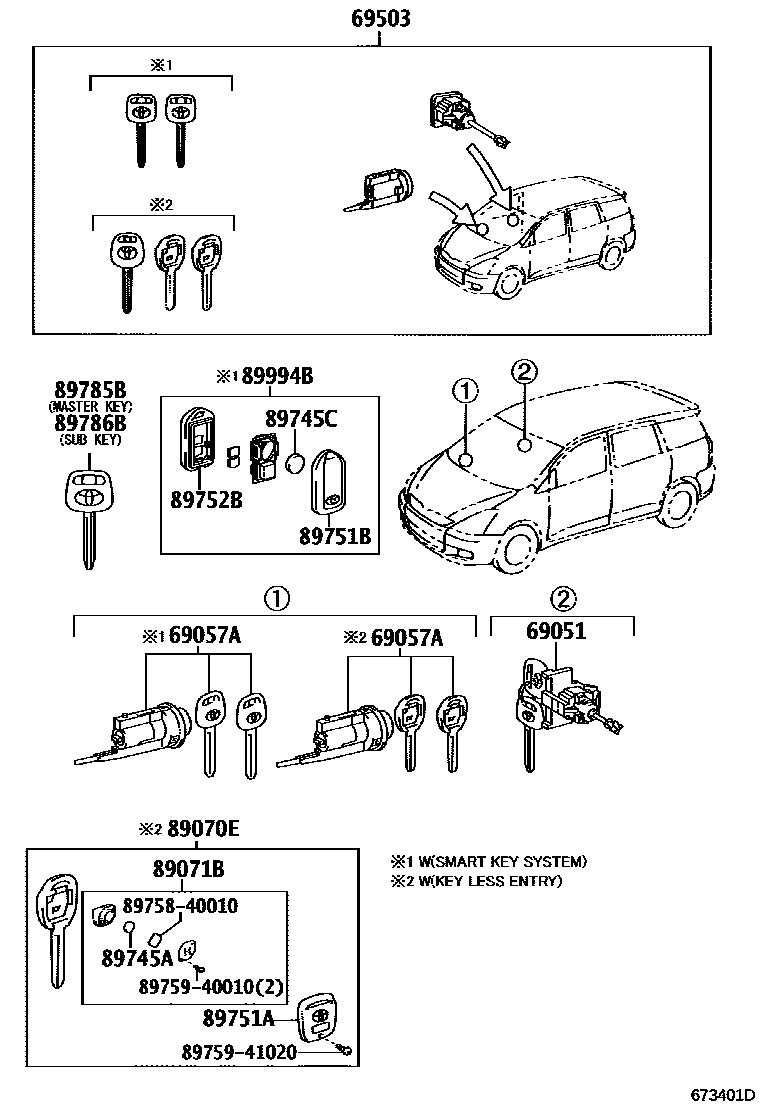

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
sub69057-0M031
sub69057-48140
S PACKAGE
S PACKAGE
69503CYLINDER SET, LOCK
sub69005-0M051
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
MALYSIA SPEC
S PACKAGE
sub69005-68020
89070ETRANSMITTER ASSY, DOOR CONTROL
sub89070-0M020
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
MALYSIA SPEC
S PACKAGE
S PACKAGE
89745ABATTERY, TRANSMITTER
S PACKAGE
89745CBATTERY, TRANSMITTER
S PACKAGE
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
89751BCOVER, TRANSMITTER HOUSING
S PACKAGE
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
89752BCASE, TRANSMITTER HOUSING
S PACKAGE
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
sub89752-71071
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
sub89752-71071
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
sub89752-71071
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
89785BTRANSMITTER, TRANSPONDER KEY MASTER
MALYSIA SPEC
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY
89994BTRANSMITTER, ELECTRICAL KEY
S PACKAGE
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
16 parts on this diagram · 6 diagrams in section
