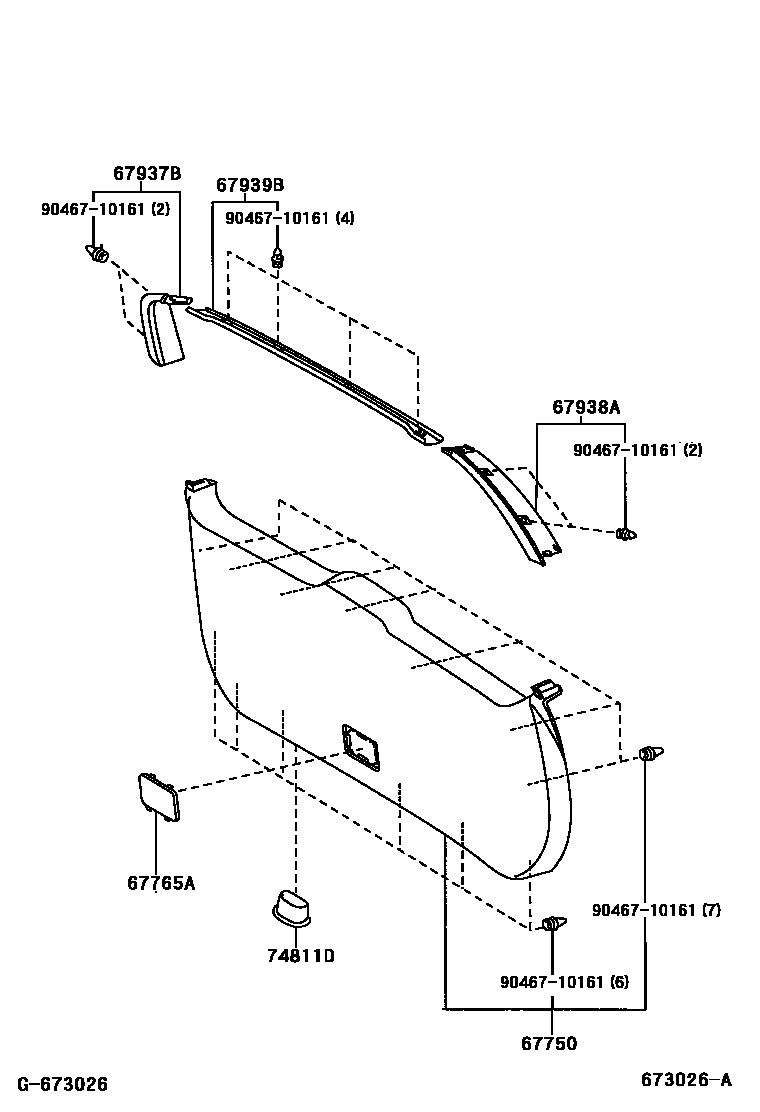

BACK DOOR PANEL & GLASS

0001 1 0002 1

67750BOARD ASSY, BACK DOOR TRIM

main67750-0M010-A0iANE1#..20E,ZAER200408-200909

IVORY,TRIM0#

main67750-0M010-B0iANE1#..TAIW200408-200909

DK.GRAY,TRIM1#

main67750-68010-B0iANE11..TH200312-200910

DK.GRAY,TRIM1#

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-0M010-A0iANE12..20E200408-200909

IVORY,TRIM0#

main67765-0M010-B0iANE1#..TAIW200408-200909

DK.GRAY,TRIM1#

main67765-68010-B0iANE11..TH200312-200910

DK.GRAY,TRIM1#

67937BGARNISH, BACK DOOR SIDE, RH

main67937-0M010-A0iANE1#..20E,ZAER200408-200909

IVORY,TRIM0#

main67937-0M010-B0iANE1#..TAIW200408-200909

LT.GRAY,TRIM1#

main67937-68010-B0iANE11..TH200312-200910

LT.GRAY,TRIM1#

67938AGARNISH, BACK DOOR SIDE, LH

main67938-0M010-A0iANE1#..20E,ZAER200408-200909

IVORY,TRIM0#

main67938-0M010-B0iANE1#..TAIW200408-200909

LT.GRAY,TRIM1#

main67938-68010-B0iANE11..TH200312-200910

LT.GRAY,TRIM1#

67939BGARNISH, BACK DOOR, CENTER

main67939-0M010-A0iANE12..20E200408-200909

IVORY,TRIM0#

main67939-0M010-B0iANE1#..TAIW200408-200909

LT.GRAY,TRIM1#

main67939-68010-B0iANE11..TH200312-200910

LT.GRAY,TRIM1#

74811DHANDLE, DOOR PULL

main74811-13010-C0iANE12..20J;ANE11..06S..TH200312-200910

BLACK,TRIM1#

sub74811-13010¥940

main74811-13010-C0iANE1#..20E,ZAER200408-200909

BLACK,TRIM0#,1#

sub74811-13010¥940

9046710161

main90467-10161¥90

7 parts on this diagram · 2 diagrams in section
