REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69207-30040
*CR,BLACK(LESS COLOR)
BLACK(LESS COLOR)
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69207-30040
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69207-30040
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69207-30040
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69207-30040
*CR,BLACK(LESS COLOR)
BLACK(LESS COLOR)
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-22240
PLATED
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-22240
PLATED
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014860022
main90148-60022
9014880027
main90148-80027
9014880066
main90148-80066
90148T0015
main90148-T0015
9016450031
main90164-50031
9018905003
main90189-05003
9054104027
main90541-04027

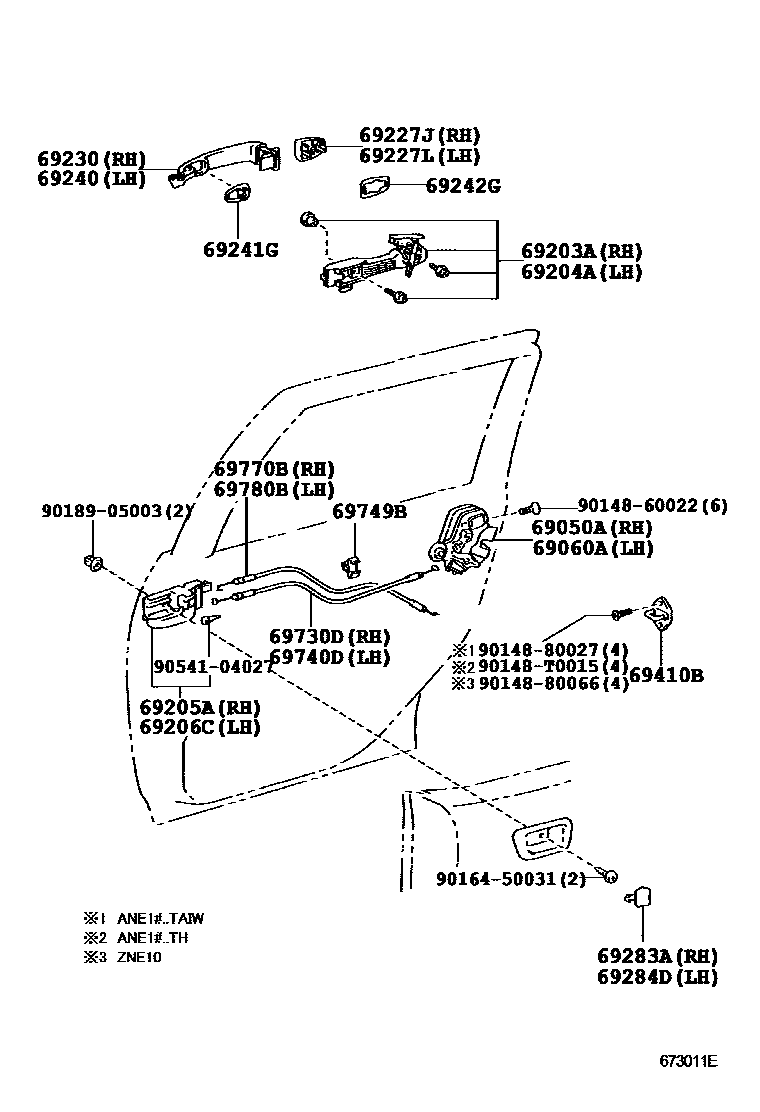

27 parts on this diagram · 1 diagram in section
