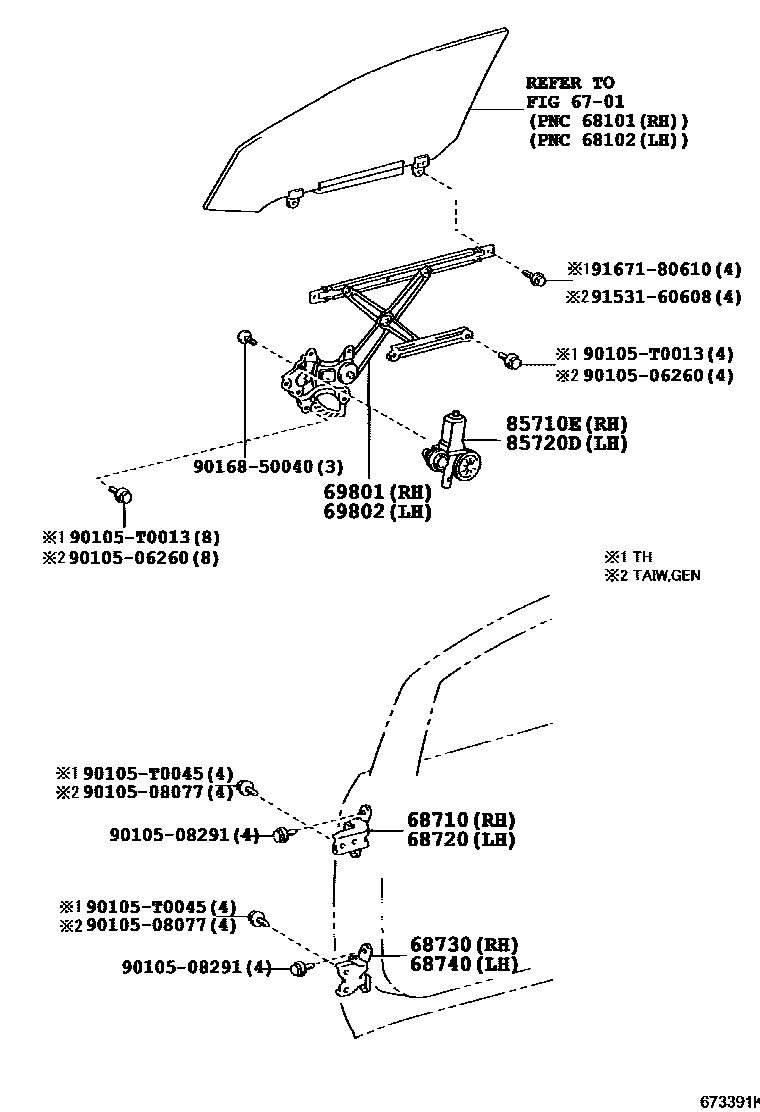

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D030iANE11..TH200408-200703

main68710-52010iANE11200312-200903

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D030iANE1#200408-200703

main68720-52010iZNE10200312-200903

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-44010iANE11..TH200312-200703

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-44010iANE11..TH200312-200910

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0M010iANE1#..TAIW200408-200703

main69801-68010iANE11..TH200312-200512

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0M010iANE1#..TAIW200408-200703

main69802-68010iANE11..TH200312-200512

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0M010iANE1#..TAIW200408-200703

main85710-58010iANE11,ZNE10..RHD200312-200512

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0M010iANE1#..TAIW200408-200703

main85720-58010iANE11..TH200312-200512

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

90105T0013

main90105-T0013

90105T0045

main90105-T0045

9016850040

main90168-50040

9153160608

main91531-60608

9167180610

main91671-80610

17 parts on this diagram · 1 diagram in section
