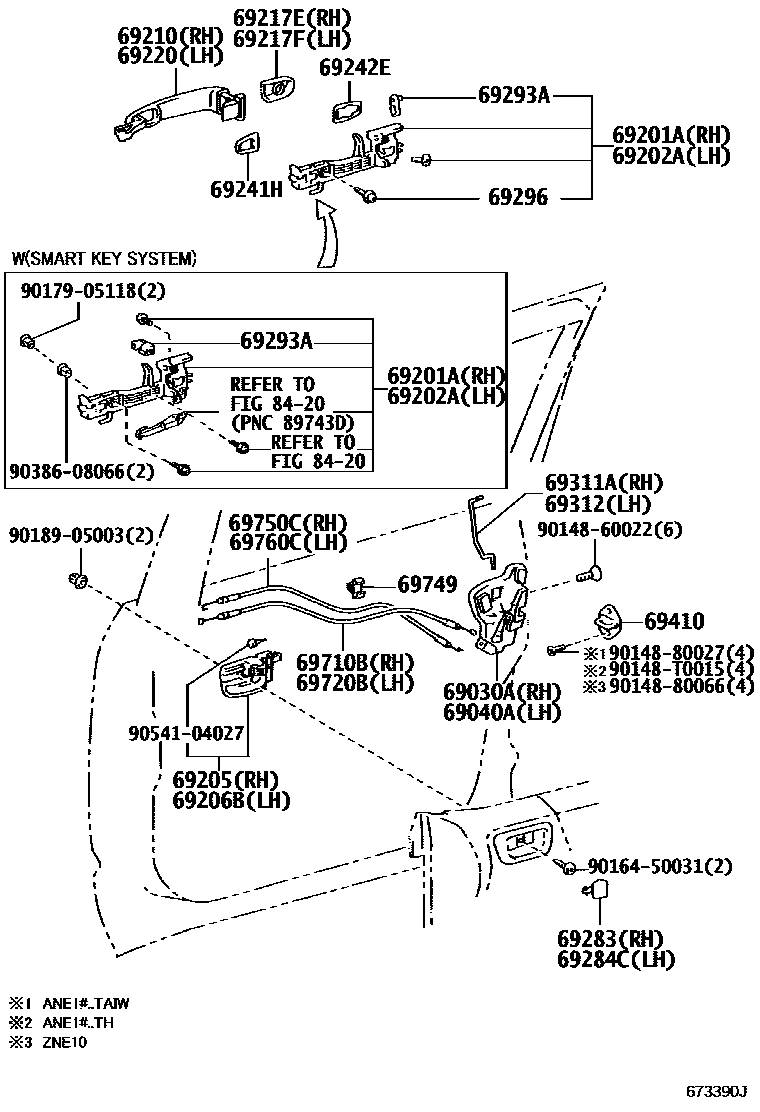

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
S PACKAGE
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
S PACKAGE
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER))
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-22240
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-22240
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-22240
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-22240
PLATED
PAINT REQ.,S PACKAGE,BLACK(LESS COLOR)
PAINT REQ.,BLACK(LESS COLOR)
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
*CR
BLACK(LESS COLOR)
BLACK(LESS COLOR)
S PACKAGE,BLACK(LESS COLOR)
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
*CR
BLACK(LESS COLOR)
BLACK(LESS COLOR)
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69250-30010
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69250-30010
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69250-30010
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69250-30010
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69250-30010
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69250-30010
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69250-30010
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69250-30010
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69250-30010
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69250-30010
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69250-30010
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69250-30010
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69250-30010
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69250-30010
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69250-30010
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69250-30010
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69250-30010
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69250-30010
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69250-30010
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69250-30010
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69250-30010
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-30290
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-30290
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SUPER WHITE 2,040
sub69210-30290
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-30290
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-30290
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1F7
sub69210-30290
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69210-30290
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69210-30290
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),SILVER ME.,1D4
sub69210-30290
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-30290
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-30290
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.GRAY M.M.,1E9
sub69210-30290
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-30290
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-30290
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BLACK MC.,209
sub69210-30290
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-30290
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-30290
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),BEIGE ME.,4R0
sub69210-30290
WITH(TAIWAN HI PACKAGE II)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-30290
WITH(TAIWAN HI PACKAGE I)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-30290
WITH(TAIWAN Z HI PACKAGE)&WIRELESS DOOR LOCK-WITH(SECURITY & SMART DOOR LOCK(DRIVER)),DK.BLUE MC.,8S6
sub69210-30290
PLATED
PAINT REQ.,BLACK(LESS COLOR)
PAINT REQ.,S PACKAGE,BLACK(LESS COLOR)
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420
9014860022
main90148-60022
9014880027
main90148-80027
9014880066
main90148-80066
90148T0015
main90148-T0015
9016450031
main90164-50031
9017905118
main90179-05118
9018905003
main90189-05003
9038608066
main90386-08066
9054104027
main90541-04027
34 parts on this diagram · 1 diagram in section
