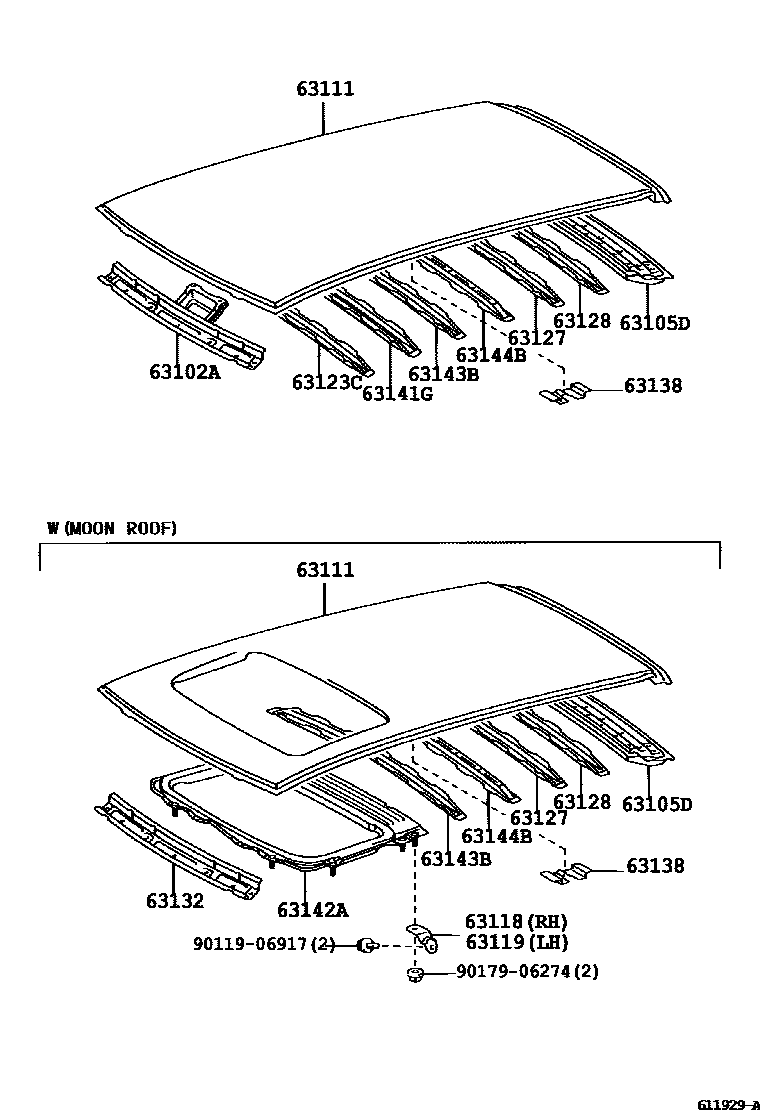

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1W(MOON ROOF) 0004 1W(TWIN MOON ROOF)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0M010iANE12..20J200408-200703

main63102-68010iANE11..TH200312-200512

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-68010iANE12;ANE11..06S200312-200703

63111PANEL, ROOF

main63111-0M020iANE1#..TAIW200703-200909

main63111-0M901iANE1#..20E,ZAER200408-200703

main63111-68010iANE12..20J200312-200412

main63111-68020supersedes 63111-68010iANE11..TH200312-200512

LIMITED PACKAGE

63118SUPPORT, ROOF PANEL, RH

main63118-0M010iANE1#..20E,ZAER200408-200703

main63118-68010iANE11..06S..TH200512

LIMITED PACKAGE

63119SUPPORT, ROOF PANEL, LH

main63119-0M010iANE1#..20E,ZAER200408-200703

main63118-68010iANE11..06S..TH200512

LIMITED PACKAGE

63123CREINFORCEMENT, ROOF PANEL

main63123-68010iANE12..20J200312-200411

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-0M010iANE1#..20E,ZAER200408-200703

main63127-68010iANE1#,ZNE10200512

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-68010iANE12..20J200312-200411

63132PANEL, WINDSHIELD HEADER, INNER

main63132-0M010iANE1#..20E,ZAER200408-200703

main63132-68010iANE11..06S..TH200512

LIMITED PACKAGE

63138BRACKET, DOME LAMP, NO.2

main63138-12011×2iANE1#,ZNE10200512

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-68010iANE1#,ZNE10200512

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-68020iANE11..TH200312-200512

LIMITED PACKAGE

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-68010iANE12..20J200312-200411

main63143-68020supersedes 63143-68010iANE11..06S..TH200512

LIMITED PACKAGE

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-68010iANE1#,ZNE10200512

9011906917

main90119-06917

9017906274

main90179-06274

16 parts on this diagram · 4 diagrams in section
