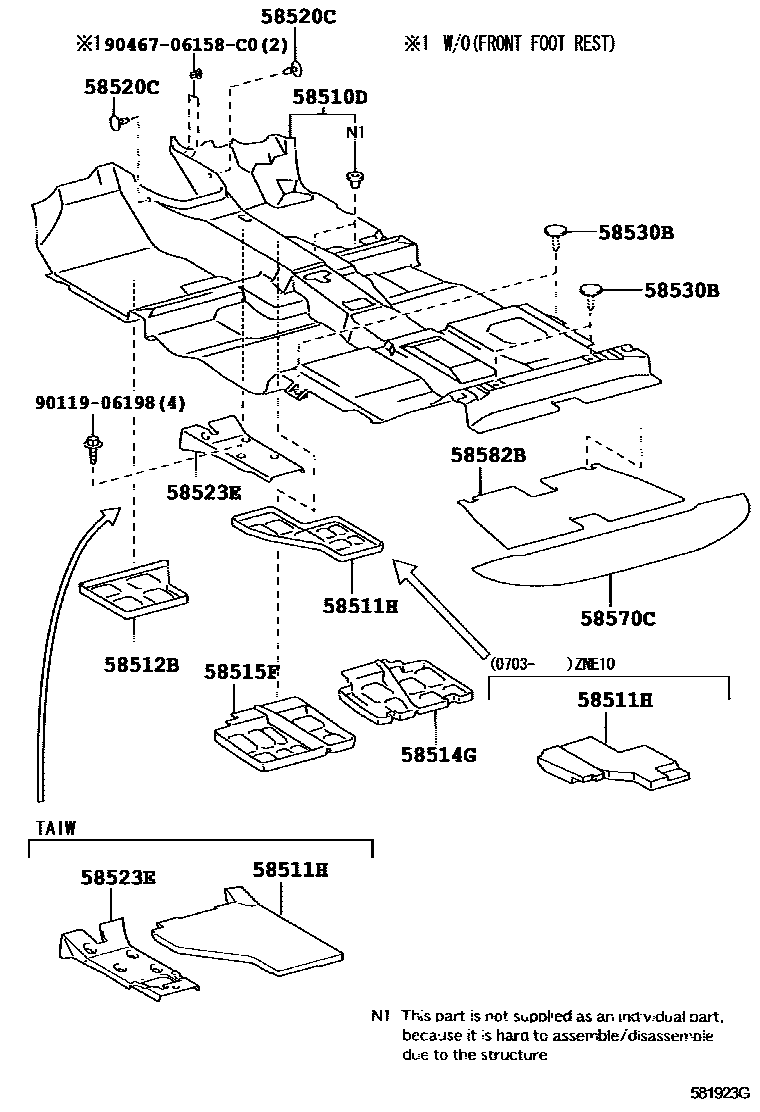

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-0M010-B0iANE11..TH200312-200910

GRAY,TRIM1#

main58510-0M020-A0iANE1#..20E,ZAER200408-200909

IVORY,TRIM0#

main58510-0M020-B0iANE1#..TAIW200408-200909

GRAY,TRIM1#

main58510-68050-B0iZNE10200804-200903

GRAY,TRIM1#

58511HMAT, FLOOR, FRONT RH

main58511-0M010iANE1#..TAIW200408-200703

main58511-68010iANE11..TH¥4,370200312-200512

main58511-68020iZNE10¥4,370200804-200903

58512BMAT, FLOOR, FRONT LH

main58512-0M010iANE1#..TAIW200408-200703

main58512-68010iANE11,ZNE10..RHD¥4,370200312-200512

58514GMAT, FLOOR, REAR RH

main58514-0M010iANE1#..TAIW200408-200703

main58514-68010iANE11,ZNE10..RHD¥6,000200312-200512

58515FMAT, FLOOR, REAR LH

main58515-0M010iANE1#..TAIW200408-200703

main58515-68010iANE11,ZNE10..RHD¥5,800200312-200512

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09110-A0iANE1#..20E,ZAER200408-200909

IVORY,TRIM0#

sub90467-09110¥230

main90467-09110-B3iANE12;ANE11..06S200312-200910

DK.GRAY,TRIM1#

sub90467-09110¥230

58523EBRACKET, FLOOR CARPET SET

main58523-0M010iANE1#..TAIW200408-200703

main58523-68010iANE11,ZNE10..RHD¥4,630200312-200512

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-A0iANE12..20E200408-200909

IVORY,TRIM0#

sub90467-07049¥90

main90467-07049-B7iANE12;ANE11..06S200312-200910

DK.GRAY,TRIM1#

sub90467-07049¥90

58570CCARPET ASSY, REAR FLOOR

main58571-0M010iANE1#..TAIW200408-200703

main58571-68010iANE11,ZNE10..RHD¥5,400200312-200512

58582BCARPET, 3RD SEAT FLOOR, NO.1

main58582-0M010iANE1#..TAIW200408-200703

main58582-68010iANE11..TH¥2,950200312-200512

9011906198

main90119-06198¥90

9046706158C0

main90467-06158C0

12 parts on this diagram · 1 diagram in section
