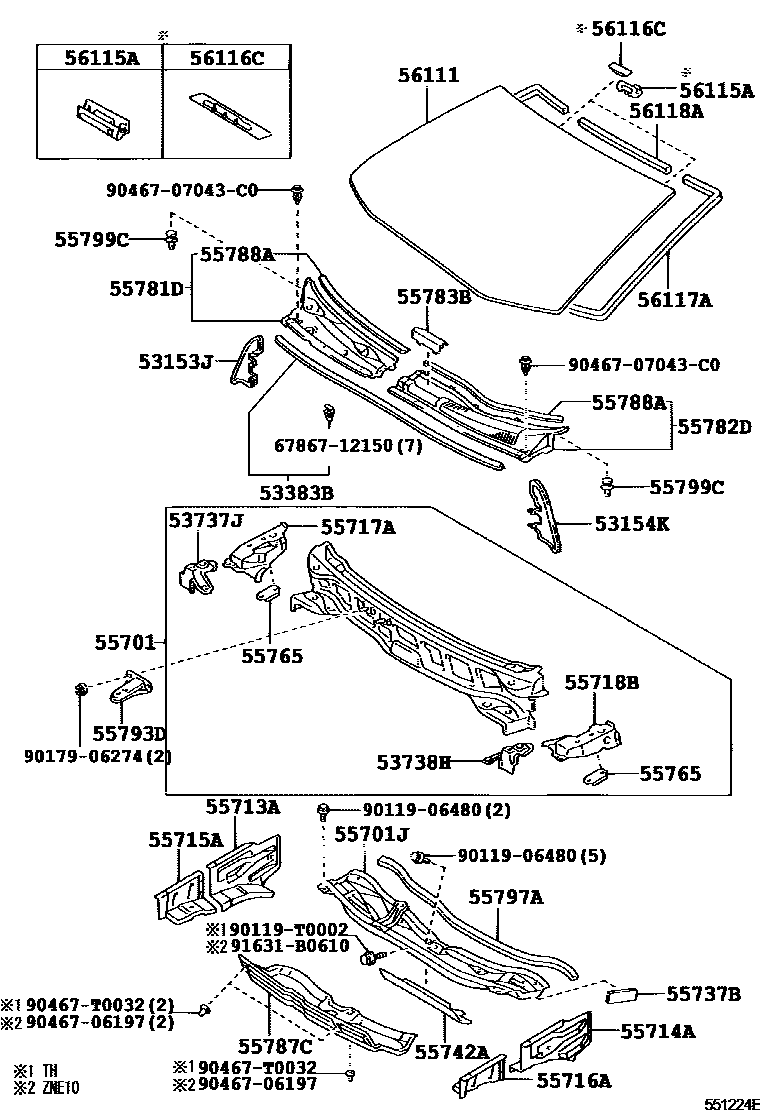

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53153JGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-0M010iANE1#..TAIW200408-200703

main53153-68010iANE11..TH¥1,780200312-200512

53154KGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-0M010iANE1#..TAIW200408-200703

main53154-68010iANE11,ZNE10..RHD¥1,780200312-200512

53383BSEAL, HOOD TO COWL TOP

main53383-68010iANE1#,ZNE10¥1,140200312-200703

53737JPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-0M010iANE1#..TAIW200408-200703

main53737-68010iANE11,ZNE10..RHD¥820200312-200512

53738HPLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-0M010iANE1#..TAIW200408-200703

main53738-68010iANE11..TH¥820200312-200512

55701PANEL SUB-ASSY, COWL

main55700-0M010iANE1#..TAIW200408-200909

main55700-68012iANE11,ZNE10..RHD¥15,800200312-200910

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-0M010iANE1#..TAIW200408-200703

main55701-68011iANE11,ZNE10..RHD¥12,500200312-200512

55713APANEL, COWL TOP SIDE, RH

main55713-68010iANE11..TH¥5,500200312-200703

55714APANEL, COWL TOP SIDE, LH

main55714-68010iANE11..TH¥5,500200312-200703

55715ABRACE, COWL TOP TO APRON, RH

main55715-44040iANE11..TH¥1,880200908

main55715-68010iANE11..TH¥2,260200312-200908

sub55715-44040¥1,880

55716ABRACE, COWL TOP TO APRON, LH

main55716-0M010iANE1#..TAIW200408-200703

main55716-68010iANE11,ZNE10..RHD¥1,880200312-200512

55717APANEL, COWL TOP SIDE, INNER RH

main55717-68010iANE11..TH¥3,780200312-200703

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-68010iANE11..TH¥3,780200312-200703

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-68010iANE11..TH¥360200312-200703

55742ASHEET, COWL TOP INSULATOR

main55742-68011iANE11..TH¥1,130200312-200512

main55742-68030iANE1#..TAIW¥1,130200408-200703

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010iANE11..TH¥310200312-200703

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-0M010iANE1#..TAIW200408-200703

main55708-68010iANE11,ZNE10..RHD¥7,400200312-200512

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0M010iANE1#..TAIW200408-200703

main55709-68010iANE11,ZNE10..RHD¥7,800200312-200512

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-0M010iANE1#..TAIW200408-200703

main55783-68010iANE11,ZNE10..RHD¥1,410200312-200512

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-0M010iANE1#..TAIW200408-200703

main55787-68011iANE11..TH¥4,080200312-200512

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-0M010iANE1#..TAIW200408-200703

RH

main55788-68010iANE11..TH¥500200312-200512

RH

sub55789-68010¥550

main55789-0M010iANE1#..TAIW200408-200703

LH

main55789-68010iANE11,ZNE10..RHD¥550200312-200512

LH

55793DBRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.1

main55793-68010iANE11..TH¥650200312-200512

main55793-68020iANE1#..TAIW¥650200408-200703

55797ASEAL, COWL WATER EXTRACT

main55797-68010iANE11..TH¥1,020200312-200703

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-68011iANE11..TH¥160200312-200703

56111GLASS, WINDSHIELD

main56101-0M010iANE11..TH200312-200512

*LAM,T=4.76,GREEN

sub56101-0M040

main56101-0M020iANE1#..TAIW200408-200703

*EHL,T=4.76,GREEN

main56101-68011iZNE10¥102,000200804-200903

*TL,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iANE11..TH¥130200312-200703

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iANE1#,ZNE10¥120200312-200703

56117ADAM, WINDOW GLASS ADHESIVE

main56117-68010iANE11..TH¥1,410200312-200703

L=3462

sub56117-64010¥1,480

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-68010iANE11..TH¥610200312-200703

L=621

sub56117-52040¥670

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150¥100

9011906480

main90119-06480¥80

90119T0002

main90119-T0002

9017906274

main90179-06274¥70

9046706197

main90467-06197¥120

9046707043C0

main90467-07043C0

90467T0032

main90467-T0032

91631B0610

main91631-B0610¥110

37 parts on this diagram · 2 diagrams in section
