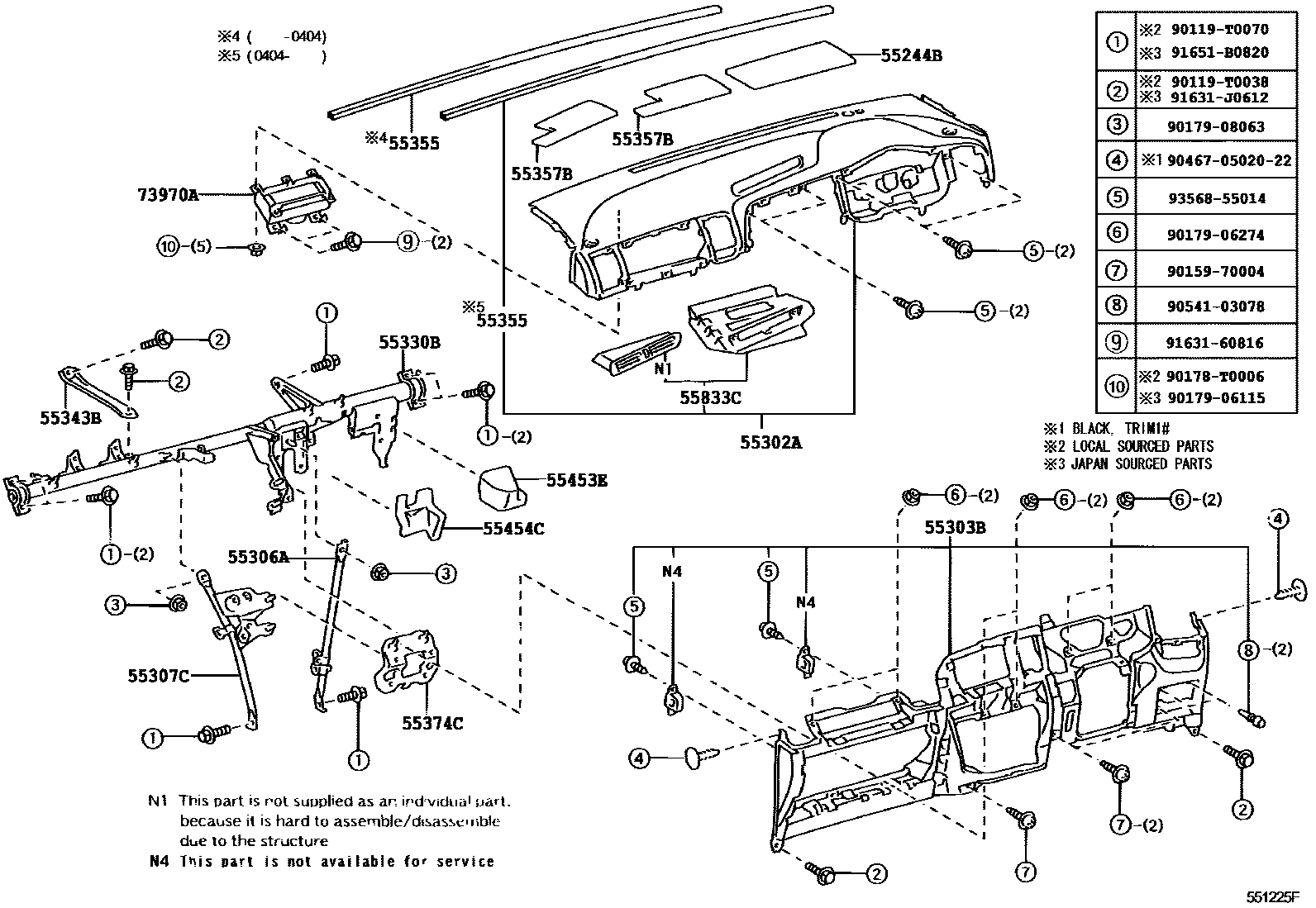

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55244BSILENCER, FRONT PANEL SIDE, NO.2

main55244-63010iANE11..TH¥580200312-200512

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55300-0M020-B0iANE1#..TAIW200703-200909

DK.GRAY,TRIM1#

main55300-0M020-E0iANE12..20E200703-200909

ORCHID BROWN,TRIM0#

main55300-0M030-B0iANE1#..TAIW200408-200703

DK.GRAY,TRIM1#

main55300-0M030-E0iANE1#..20E,ZAER200408-200703

ORCHID BROWN,TRIM0#

main55300-68010-B0iANE11200312-200511

DK.GRAY,TRIM1#

sub55300-68012¥45,200

main55300-68012-B0iANE11,ZNE10..RHD200512-200910

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55310-0M010-A0iANE12..20E200408-200909

IVORY,TRIM0#

main55310-0M010-B0iANE1#..TAIW200408-200909

DK.GRAY,TRIM1#

main55310-68010-B0iANE11..TH200312-200910

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0M010iANE1#..TAIW200408-200703

main55306-68010iANE11,ZNE10..RHD¥2,160200312-200512

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0M010iANE1#..TAIW200408-200703

main55307-68010iANE11..TH¥2,190200312-200512

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0M010iANE1#..TAIW200408-200803

sub55330-0M011

sub90109-05106

main55330-0M011iANE1#..TAIW200803

main55330-68010iANE11..TH¥20,300200312-200512

main55330-68020iZNE10¥19,500200804-200903

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-0M010iANE1#..TAIW200408-200703

main55343-21010iANE11,ZNE10..RHD¥1,010200312-200512

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-68010iANE1#,ZNE10¥1,020200312-200910

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55244-68021iANE11,ZNE10..RHD¥580200512

main55357-20060iANE11¥510200312-200504

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55349-0M010iANE1#..TAIW200408-200703

main55349-68010iANE11..TH¥2,030200312-200512

55453EPAD, INSTRUMENT, LOWER RH

main55453-68010iANE11..TH¥1,210200312-200512

55454CPAD, INSTRUMENT, LOWER LH

main55454-68010iANE11..TH¥1,990200312-200512

55833CCONNECTOR, INSTRUMENT PANEL REGISTER, CENTER

main55833-68010-B0iANE11..TH200312-200910

DK.GRAY,TRIM1#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-68010iANE11,ZNE10..RHD¥120,000200312-200910

main73970-68020-B0iANE1#..TAIW200703-200909

SRS AIR BAG-WITH OUT,DK.GRAY,TRIM1#

main73970-68020-B0iANE1#..TAIW200703-200909

DK.GRAY,TRIM1#

main73970-68020-E0iANE12..20E200703-200909

SRS AIR BAG-WITH OUT,ORCHID BROWN,TRIM0#

main73970-68020-E0iANE12..20E200703-200909

ORCHID BROWN,TRIM0#

90119T0038

main90119-T0038¥60

90119T0070

main90119-T0070¥110

9015970004

main90159-70004¥60

90178T0006

main90178-T0006¥110

9017906115

main90179-06115¥120

9017906274

main90179-06274¥70

9017908063

main90179-08063¥160

904670502022

main90467-0502022

9054103078

main90541-03078¥120

9163160816

main91631-60816¥160

91631J0612

main91631-J0612¥110

91651B0820

main91651-B0820¥160

9356855014

main93568-55014¥70

27 parts on this diagram · 8 diagrams in section
