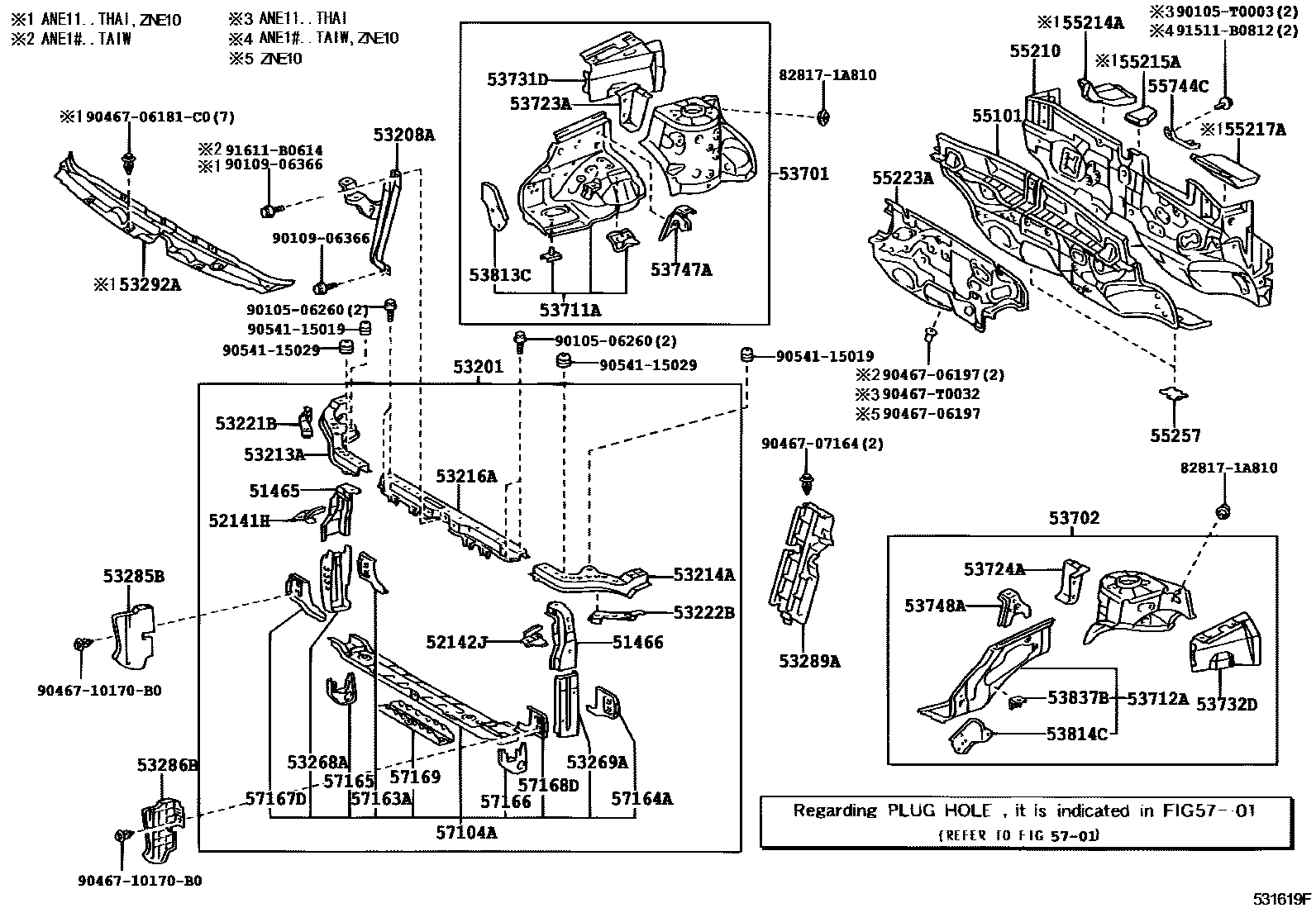

FRONT FENDER APRON & DASH PANEL

51465BRACE, RADIATOR SUPPORT, UPPER RH

main51465-0M010iANE1#..TAIW200408-200703

main51465-68010iANE11..TH200312-200512

51466BRACE, RADIATOR SUPPORT, UPPER LH

main51466-0M010iANE1#..TAIW200408-200703

main51466-68010iANE11,ZNE10..RHD200312-200512

52141HARM, FRONT BUMPER, UPPER RH

main52141-0M010iANE1#..TAIW200408-200703

main52141-68010iANE11..TH200312-200512

52142JARM, FRONT BUMPER, UPPER LH

main52142-0M010iANE1#..TAIW200408-200703

main52142-68010iANE11..TH200312-200512

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0M010iANE1#..TAIW200408-200703

main53201-68010iANE11..TH200312-200608

sub53201-68011

main53201-68011iANE11,ZNE10..RHD200609

sub53201-68901

sub53213-68900

sub53214-68900

sub90109-06328

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0M010iANE1#..TAIW200408-200703

main53208-0M020iANE11..TH200512

sub53208-68010

main53208-68010iZNE10200312-200903

53213ASUPPORT, RADIATOR, UPPER RH

main53213-0M010iANE1#..TAIW200408-200703

main53213-68010iANE11..TH200312-200512

53214ASUPPORT, RADIATOR, UPPER LH

main53214-0M010iANE1#..TAIW200408-200703

main53214-68010iANE11,ZNE10..RHD200312-200512

53216ASUPPORT, RADIATOR, UPPER

main53216-0M010iANE1#..TAIW200408-200703

main53216-68010iANE11..TH200312-200512

53221BBRACE, RADIATOR SUPPORT APRON, RH

main53221-0M010iANE1#..TAIW200408-200703

main53221-68010iANE11..TH200312-200512

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-0M010iANE1#..TAIW200408-200703

main53222-68010iANE11,ZNE10..RHD200312-200512

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-20110iANE11..TH200312-200703

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-63010iANE11..TH200312-200703

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-0M010iANE1#..TAIW200408-200703

main53285-0M020iANE1#..TAIW200703

main53285-68010iANE11..TH200312-200512

main53285-68020iANE11,ZNE10..RHD200512

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53285-0M010iANE1#..TAIW200408-200703

main53285-0M020iANE1#..TAIW200703

main53285-68010iANE11..TH200312-200512

main53285-68020iANE11,ZNE10..RHD200512

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-0M010iANE1#..TAIW200408-200703

main53289-63010iANE11,ZNE10..RHD200312-200512

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-68010iANE11..TH200312-200512

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0M010iANE1#..TAIW200408-200909

main53701-68010iANE11..TH200312-200910

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0M010iANE1#..TAIW200408-200909

main53702-68010iANE11,ZNE10..RHD200312-200910

53711AAPRON, FRONT FENDER, W/SUPPORT, FRONT RH

main53711-20909iANE1#,ZNE10200312-200703

53712AAPRON, FRONT FENDER, W/SUPPORT, FRONT LH

main53712-0M901iANE1#..TAIW200408-200703

main53712-20902iANE11..TH200312-200512

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-12080iANE1#..TAIW200312-200703

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-12070iANE11..TH200312-200703

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12160iANE11..TH200312-200703

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12140iANE11..TH200312-200703

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-68010iANE11..TH200312-200703

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-68010iANE1#,ZNE10200312-200703

53813CEXTENSION, FRONT FENDER, RH

main53813-20070iANE1#..TAIW200312-200703

53814CEXTENSION, FRONT FENDER, LH

main53814-20050iANE12;ANE11..06S200312-200703

53837BBRACKET, FRONT SIDE PANEL, NO.2

main53837-44010iANE12;ANE11..06S200312-200703

55101PANEL SUB-ASSY, DASH

main55101-0M010iANE11..TH200312-200910

sub55101-68020

main55101-0M020iANE1#..TAIW200408-200909

main55101-68020iZNE10200804-200903

55210INSULATOR ASSY, DASH PANEL

main55210-0M010iANE1#..TAIW200408-200703

main55210-68010iANE11..TH200312-200512

sub55210-68011

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-68010iANE11..TH200312-200512

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-68010iANE11..TH200312-200505

main55215-68011iZNE10200804-200903

55217ARETAINER, DASH PANEL SILENCER

main55217-68010iANE11..TH200312-200512

55223AINSULATOR, DASH PANEL, OUTER

main55223-0M010iANE1#..TAIW200408-200703

main55223-68010iANE11..TH200312-200512

55257COVER, DASH PANEL OPENING

main55257-13010iANE1#,ZNE10200312-200703

55744CMEMBER, FRONT PANEL, UPPER

main55744-68010iANE11..TH200312-200703

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-0M010iANE1#..TAIW200408-200703

main57104-68010iANE11..TH200312-200608

sub57104-68011

main57104-68011iANE11,ZNE10..RHD200609

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-32050iANE1#,ZNE10200312-200703

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-32050iANE11..TH200312-200703

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57165-68010iANE11..TH200312-200703

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57166-68010iANE11..TH200312-200703

57167DREINFORCEMENT, FRONT CROSSMEMBER SIDE, RH

main57167-0M010iANE1#..TAIW200408-200703

main57167-32080iANE11,ZNE10..RHD200312-200512

57168DREINFORCEMENT, FRONT CROSSMEMBER SIDE, LH

main57168-0M010iANE1#..TAIW200408-200703

main57168-32080iANE11,ZNE10..RHD200312-200512

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-20050iANE11,ZNE10..RHD200609-200910

main57169-68010iANE12;ANE11..06S200312-200609

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9010506260

main90105-06260

90105T0003

main90105-T0003

9010906366

main90109-06366

9046706181C0

main90467-06181C0

9046706197

main90467-06197

9046707164

main90467-07164

9046710170B0

main90467-10170B0

90467T0032

main90467-T0032

9054115019

main90541-15019

9054115029

main90541-15029

91511B0812

main91511-B0812

91611B0614

main91611-B0614

60 parts on this diagram · 1 diagram in section
