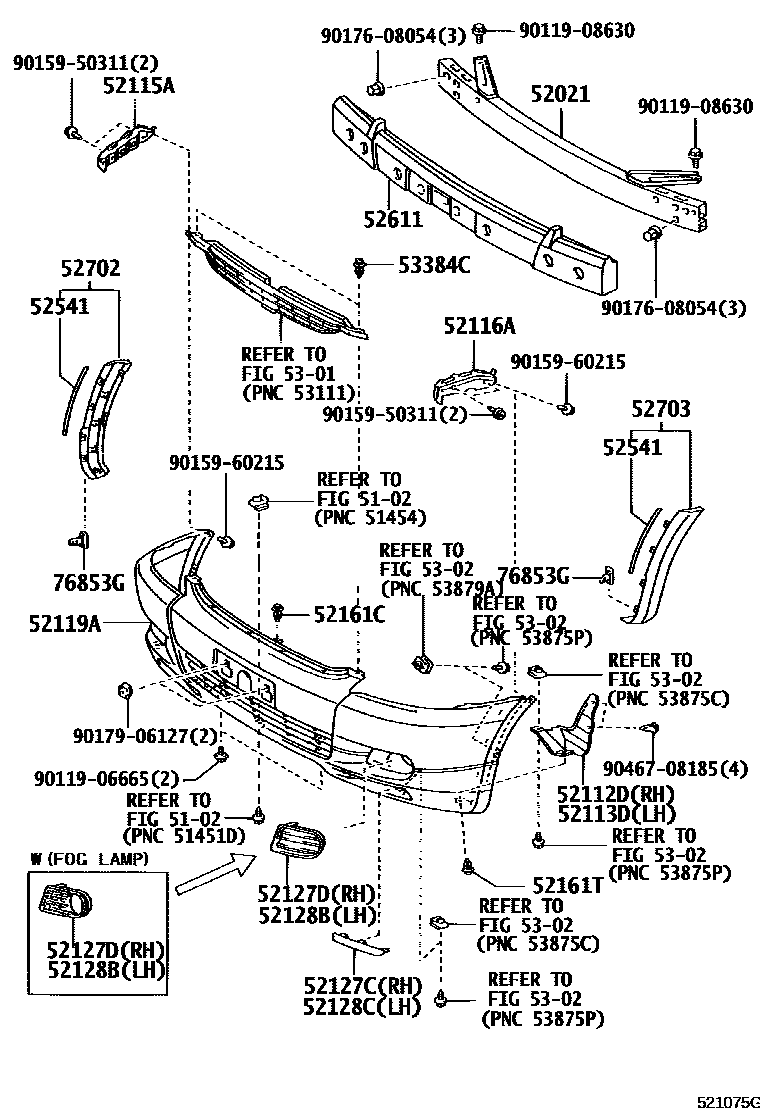

FRONT BUMPER & BUMPER STAY
5102
52112DEXTENSION, FRONT BUMPER, RH
NO PAINT REQ.
NO PAINT REQ.
52113DEXTENSION, FRONT BUMPER, LH
NO PAINT REQ.
NO PAINT REQ.
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.,2.0G
PAINT REQ.
PAINT REQ.,2.0G
PAINT REQ.
PAINT REQ.,WITH(TAIWAN HI PACKAGE II)
PAINT REQ.
PAINT REQ.
PAINT REQ.
52127CCOVER, FRONT BUMPER HOLE
52127DCOVER, FRONT BUMPER HOLE, RH
S PACKAGE
52128BCOVER, FRONT BUMPER HOLE, LH
S PACKAGE
52128CCOVER, FRONT BUMPER HOLE, LH
52161TPIECE, FRONT BUMPER
52541PROTECTOR, FRONT BUMPER
GRAY,1D0 ,1D4 ,4R0 ,586
BLACK,209 ,3N8 ,3P0 ,8N8
LT. GRAY,040 ,1D4
LT. GRAY,040 ,1D4 ,1F7
BLACK,1E9 ,209 ,4R0 ,8S6
BLACK,1E9 ,3P2 ,4R0 ,8Q6
52611ABSORBER, FRONT BUMPER ENERGY
52702MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH
WHITE PEARL CS.,070
SILVER M.M.,1E7
DK.GRAY M.M.,1E9
SILVER ME.,1D0
BLACK MC.,209
SUPER RED 5,3P0
RED MC.,3M8
RED M.M.,3N8
CHAMPAGNE ME.,586
DK.BLUE M.M.,8P4
DK.BLUE MC.,8L4
DK.BLUE MC.,8N8
52703MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH
WHITE PEARL CS.,070
SILVER M.M.,1E7
DK.GRAY M.M.,1E9
SILVER ME.,1D0
BLACK MC.,209
SUPER RED 5,3P0
RED MC.,3M8
RED M.M.,3N8
CHAMPAGNE ME.,586
DK.BLUE M.M.,8P4
DK.BLUE MC.,8L4
DK.BLUE MC.,8N8
5301
5302
53384CCUSHION, HOOD, CENTER
76853GRETAINER, FRONT BUMPER GUARD, NO.1
9011906665
main90119-06665
9011908630
main90119-08630
9015950311
main90159-50311
9015960215
main90159-60215
9017608054
main90176-08054
9017906127
main90179-06127
9046708185
main90467-08185
28 parts on this diagram · 5 diagrams in section
