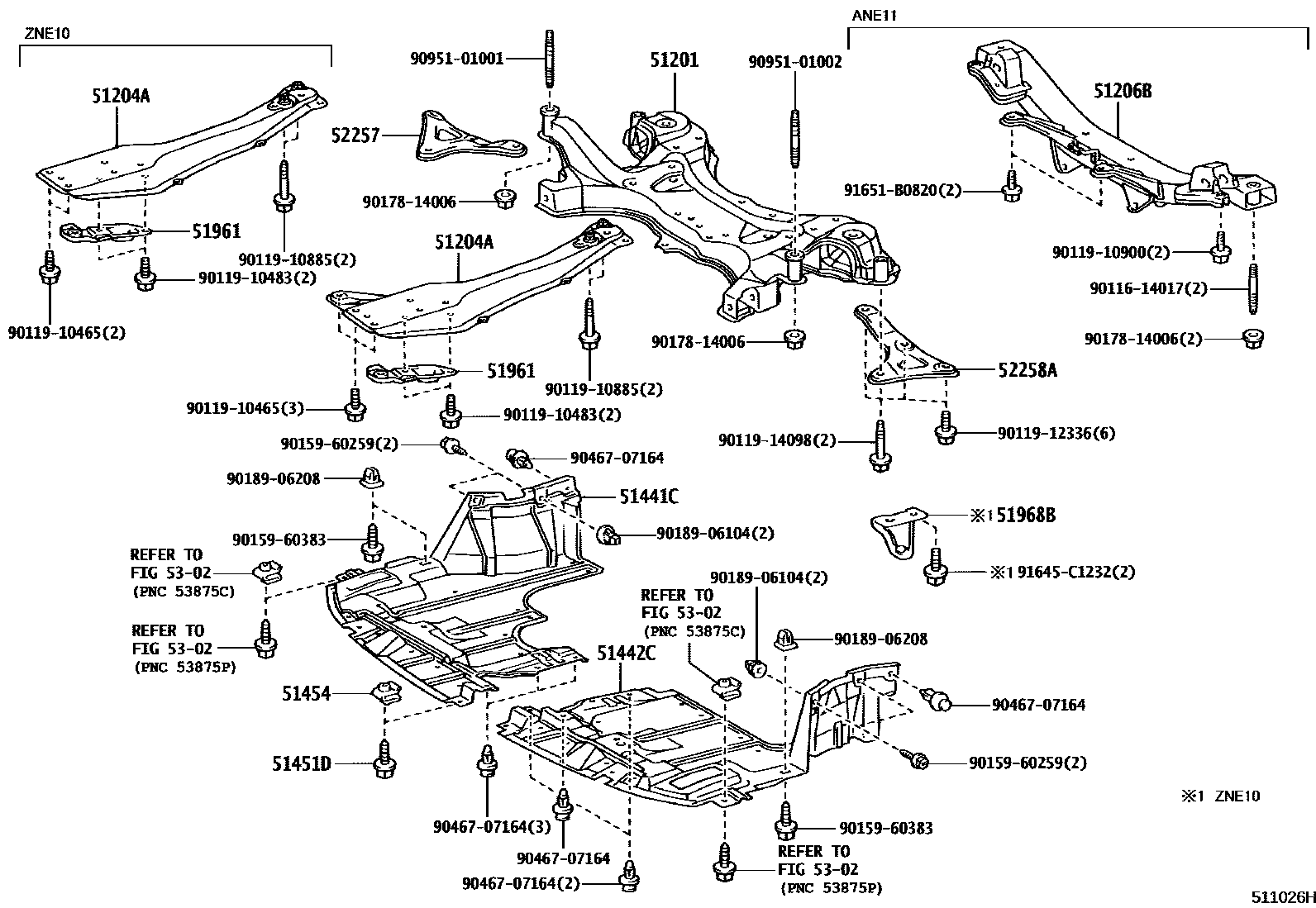

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20361iANE1#..TAIW200312-200703

sub51201-20362

sub51201-0M010

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-21030iANE11..TH200312-200703

main51204-44010iZNE10200804-200903

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-68010iANE11..TAIW200312-200703

sub51206-68011

51441CCOVER, ENGINE UNDER, RH

main51441-0M010iANE1#200312-200703

main51441-68010iZNE10200804-200903

51442CCOVER, ENGINE UNDER, LH

main51442-0M010iANE1#200312-200703

main51442-68010iZNE10200804-200903

51451DSCREW, NO.1

main90159-60215iANE1#,ZNE10200312-200910

51454CLIP

main90467-05114iANE11,ZNE10..RHD200512-200910

main90467-05138iANE12;ANE11..06S200312-200909

51961HOOK, NO.1

main51963-32040iANE1#,ZNE10200312-200703

51968BHOOK, TRANSPORT, REAR LH

main51968-68011iZNE10200804-200903

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20070iANE11..TH200312-200703

sub52257-20071

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20070iANE11..TH200312-200703

sub52258-20071

5302

9011614017

main90116-14017

9011910465

main90119-10465

9011910483

main90119-10483

9011910885

main90119-10885

9011910900

main90119-10900

9011912336

main90119-12336

9011914098

main90119-14098

9015960259

main90159-60259

9015960383

main90159-60383

9017814006

main90178-14006

9018906104

main90189-06104

9018906208

main90189-06208

9046707164

main90467-07164

9095101001

main90951-01001

9095101002

main90951-01002

91645C1232

main91645-C1232

91651B0820

main91651-B0820

29 parts on this diagram · 1 diagram in section
