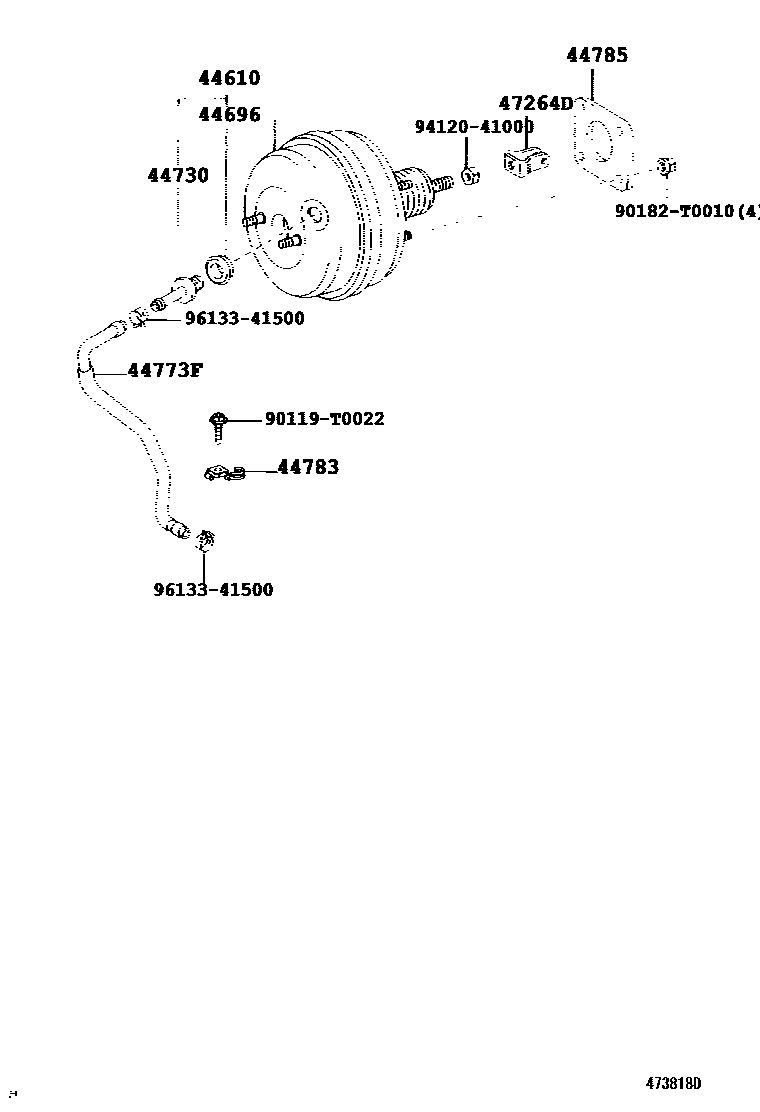

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-68011iZNE10¥46,600200804-200903

main44610-68060iANE11..TH¥61,200200312-200910

main44610-68070iANE12..20J200408-200601

sub44610-68071

main44610-68071iANE12..20J200602-200909

main44610-68080iANE1#..20E,ZAER200408-200909

44696GROMMET, CHECK VALVE

main90480-24439iANE11..TH¥390200312-200703

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iANE1#..TAIW¥1,720200408-200909

main44730-22150iANE11..TH¥1,300200312-200910

44773FHOSE, UNION TO CHECK VALVE

main44773-68020iANE11..TH¥1,990200312-200512

44783CLAMP, VACUUM HOSE

main44783-20050iANE11..TH¥320200312-200703

44785GASKET, BRAKE BOOSTER

main44785-20020iANE11..TH¥320200312-200703

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iANE12;ANE11..06S¥250200312-200910

main47264-63010iZNE10¥250200804-200903

90119T0022

main90119-T0022¥60

90182T0010

main90182-T0010

9412041000

main94120-41000¥80

9613341500

main96133-41500¥140

11 parts on this diagram · 3 diagrams in section
