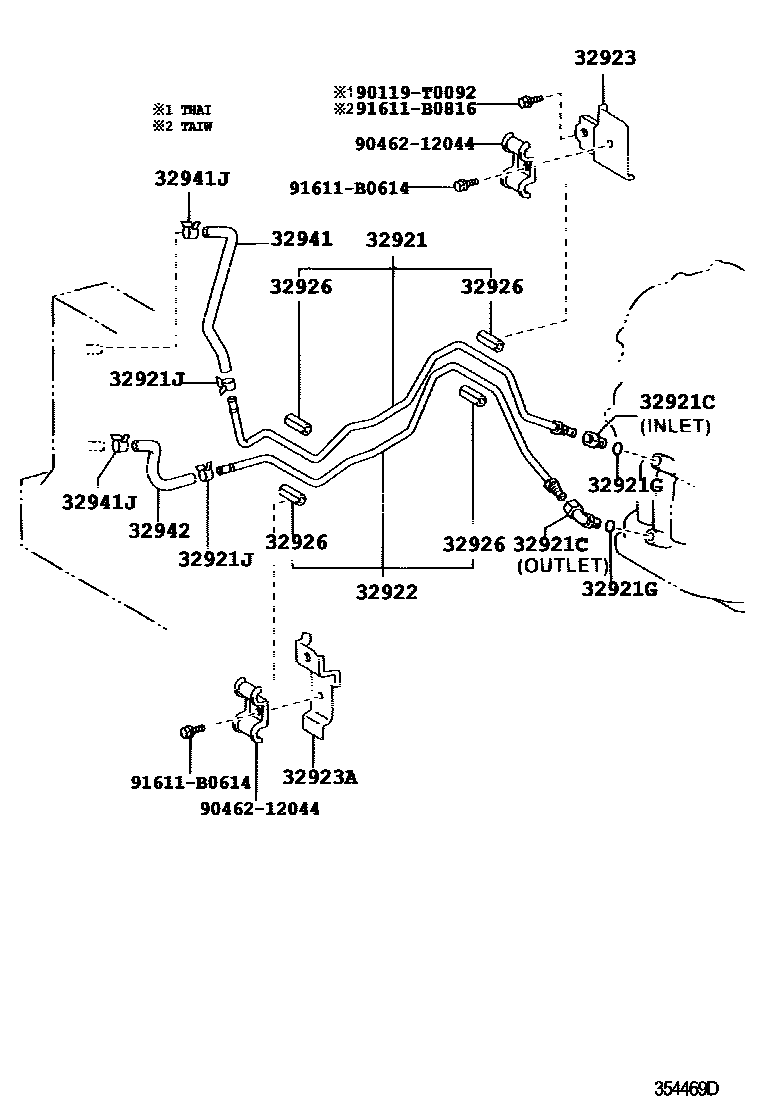

OIL COOLER & TUBE (ATM)

0001 1U241E 0002 1U341E

32921TUBE, OIL COOLER INLET, NO.1

main32921-0M010iANE1#..TAIW200408-200703

main32921-68010iANE11..TH¥1,590200312-200512

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iZNE10¥500200804-200903

sub90404-13010¥310

main90404-16031iANE11..TH¥340200312-200703

OUTLET

main90407-16010iANE1#¥440200312-200703

INLET

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iANE1#..TAIW¥170200312-200910

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16022iANE1#,ZNE10¥300200312-200703

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0M010iANE1#..TAIW200408-200703

main32922-68010iANE11..TH¥1,590200312-200512

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-32090iANE11..TH¥500200312-200703

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-63010iANE1#¥780200312-200703

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iANE11..TH¥170200312-200703

L=35,ID=10

32941HOSE, OIL COOLER INLET, NO.1

main32941-68010iZNE10¥1,840200804-200903

main32943-68010iANE1#200312-200703

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iANE1#,ZNE10¥180200902

main90467-16022iANE12;ANE11..06S¥300200312-200901

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-68010iZNE10¥1,540200804-200903

main32943-68020iANE1#..TAIW200312-200703

90119T0092

main90119-T0092¥110

9046212044

main90462-12044¥260

91611B0614

main91611-B0614¥110

91611B0816

main91611-B0816¥140

15 parts on this diagram · 2 diagrams in section
