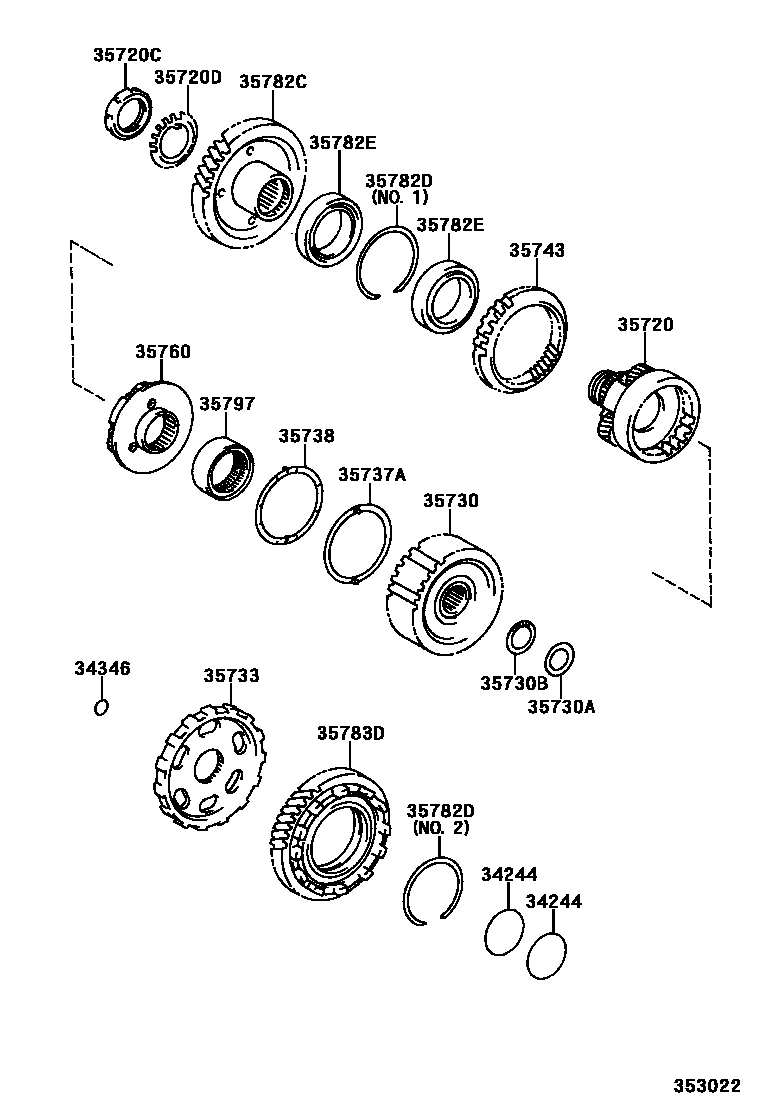

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U241E 0002 1U341E

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010iANE1#..TAIW200312-200703

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21011iANE1#200612-200703

main34346-28010iANE12;ANE11..06S200312-200612

sub34346-21011

35720GEAR ASSY, FRONT PLANETARY

main35720-28080iANE1#..TAIW200312-200703

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iANE11..TH200312-200703

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iANE11..TH200312-200703

35730GEAR ASSY, REAR PLANETARY SUN

main35730-28020iANE1#..TAIW200312-200703

main35730-52020iZNE10200804-200903

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35789-21010iANE11..TH200312-200703

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-33003iANE1#..TAIW200312-200703

main90374-43003iZNE10200804-200903

35733GEAR, PARKING LOCK

main35733-32040iANE1#..TAIW200312-200703

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-28010iANE11..TH200312-200703

main35737-52020iZNE10200804-200903

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-28020iANE1#..TAIW200312-200703

35743GEAR, FRONT PLANETARY RING

main35743-28010iANE1#..TAIW200312-200703

35760GEAR ASSY, REAR PLANETARY

main35760-28010iANE1#..TAIW200312-200703

main35760-52011iZNE10200804-200903

35782CGEAR, COUNTER DRIVE

main35782-28020iANE1#200312-200703

main35782-52020iZNE10200804-200903

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-83001iZNE10200804-200903

main90520-84001iANE11..TH200312-200703

NO.1

main90520-89004iANE1#200312-200703

NO.2

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90363-52005iZNE10200804-200903

main90366-60009iANE11..TH200312-200703

35783DGEAR, COUNTER DRIVEN

main35783-28020iANE11..TH200312-200703

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iANE11..TH200312-200703

18 parts on this diagram · 2 diagrams in section
