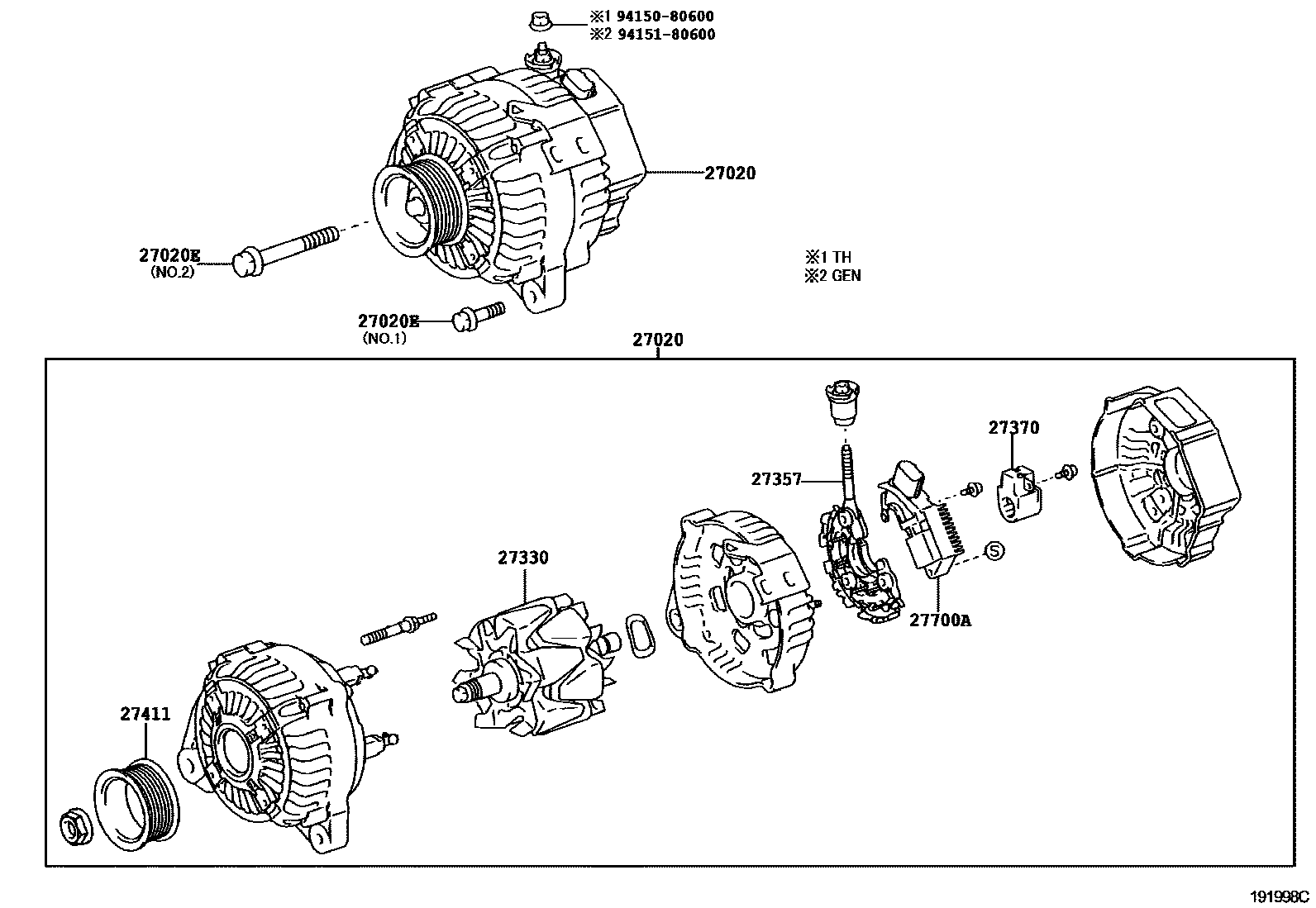

ALTERNATOR

0001 112V 80A 0002 112V 100A

27020ALTERNATOR ASSY

main27060-0H180i1AZFE..ANE1#..TAIW200703

12V 100A

main27060-22230i1ZZFE..ZNE10200804-200903

12V 80A

sub27060-22231

main27060-28250i1AZFE..ANE11..TH200512-200901

12V 80A

main27060-28251i1AZFE..ANE11..TH200902

12V 80A

sub27060-28280

main27060-28270i1AZFE..ANE1#..TAIW200408-200703

12V 100A

sub27060-28260

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1ZZFE..ZNE10200804-200903

NO.1

main91511-80830i1ZZFE..ZNE10200804-200903

NO.2

main91511-J0840i1AZFE..ANE12;1AZFE..ANE11..06S200312-200607

NO.1

main91512-81085i1AZFE..ANE11..TH200312-200512

NO.2

main91551-80840i1AZFE..ANE1#200608

NO.1

27330ROTOR ASSY, ALTERNATOR

main27330-0F060i1AZFE..ANE1#..TAIW200703

main27330-30070i1AZFE..ANE1#..TAIW200408-200703

main27330-30130i1AZFE..ANE11..TH200904

main27330-62220i1AZFE..ANE11..TH200312-200512

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i1AZFE..ANE11..TH200312-200512

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i1AZFE..ANE1#..TAIW200408-200703

main27370-75060i1AZFE,1ZZFE..ANE11,ZNE10..RHD200512

27411PULLEY, ALTERNATOR

main27411-22210i1ZZFE..ZNE10200804-200903

main27411-28060i1AZFE..ANE1#..TAIW200408-200703

main27411-28160i1AZFE..ANE11..TH200312-200512

27700AREGULATOR ASSY, GENERATOR

main27700-22050i1AZFE..ANE11..TH200312-200512

9415080600

main94150-80600

9415180600

main94151-80600

9 parts on this diagram · 2 diagrams in section
