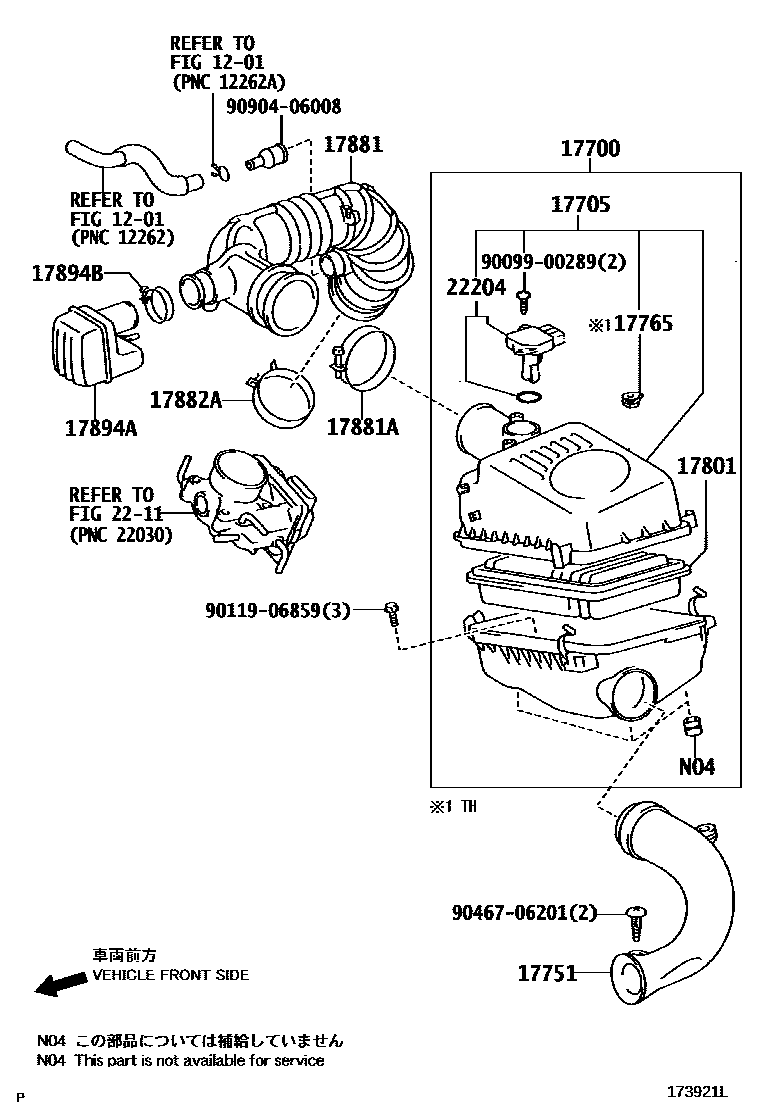

AIR CLEANER
1201
17751INLET, AIR CLEANER, NO.1
17765STAY, AIR CLEANER, NO.1
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17894ARESONATOR, INTAKE AIR, NO.2
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
(L)
(J)
9009900289
main90099-00289
9011906859
main90119-06859
9046706201
main90467-06201
9090406008
main90904-06008
17 parts on this diagram · 2 diagrams in section
