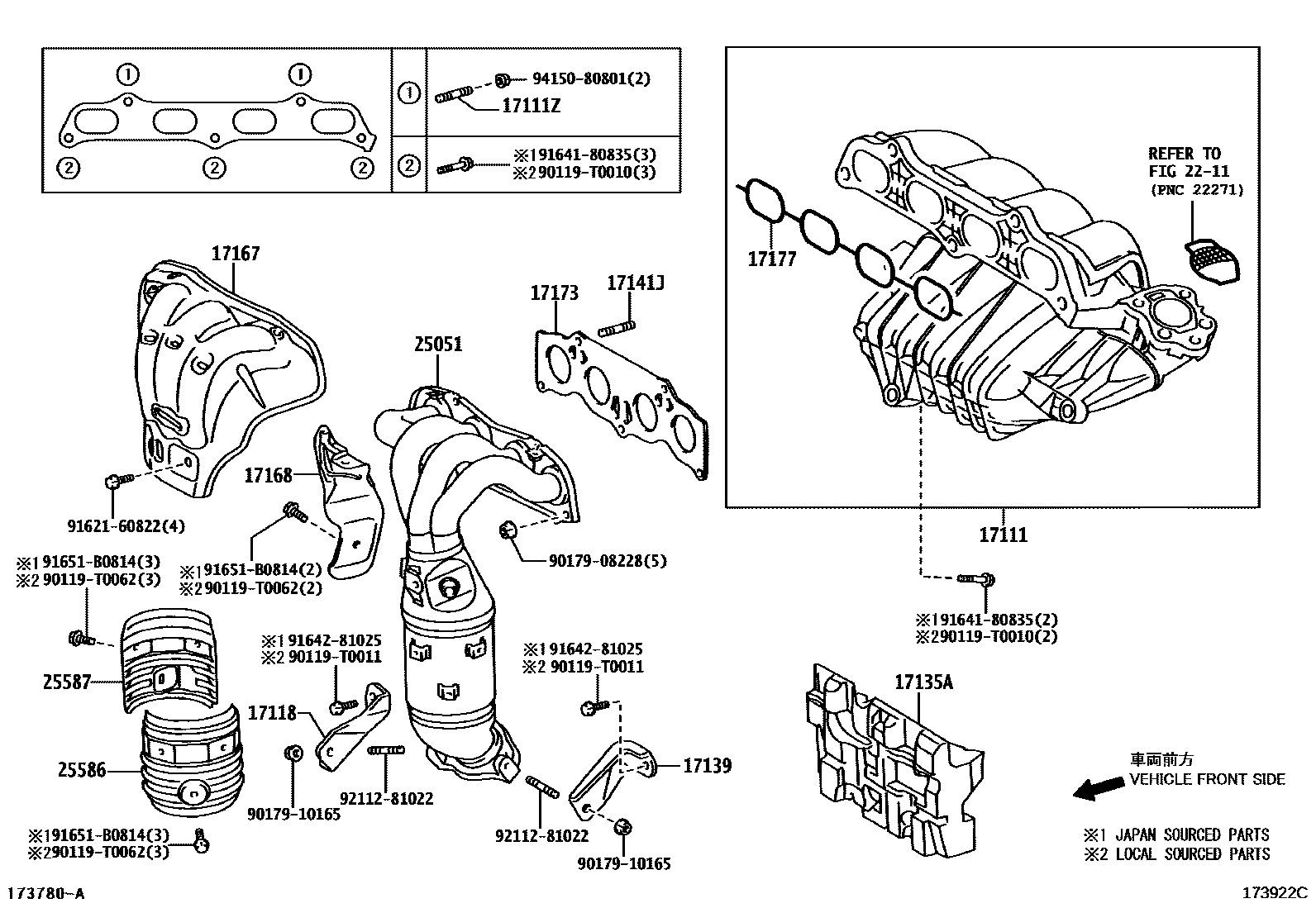

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17120-0H040i1AZFE..ANE12;1AZFE..ANE11..06S200312-200703

sub17120-0H041

main17120-0H040i1AZFE..ANE1#200512-200910

(L)

sub17120-0H041

main17120-22070i1ZZFE..ZNE10200804-200903

main17120-28100i1AZFE..ANE1#200608-200910

(J)

sub17120-28101

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i1AZFE..ANE1#..TAIW200312-200703

17118STAY, MANIFOLD

main17118-22020i1ZZFE..ZNE10200804-200903

main17118-28020i1AZFE..ANE12;1AZFE..ANE11..06S200312-200703

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-0H020i1AZFE..ANE1#200403-200506

(L)

sub17135-0H021

main17135-0H021i1AZFE..ANE1#200512

(L)

main17135-22010i1ZZFE..ZNE10200804-200903

main17135-28010i1AZFE..ANE11200312-200403

sub17135-28011

main17135-28010i1AZFE..ANE1#200403-200506

(J)

sub17135-28011

main17135-28011i1AZFE..ANE12;1AZFE..ANE11..06S200506-200703

main17135-28011i1AZFE..ANE1#200512

(J)

17139STAY, MANIFOLD, NO.2

main17139-28010i1AZFE..ANE12;1AZFE..ANE11..06S200312-200703

17141MANIFOLD, EXHAUST

main17104-22100i1ZZFE..ZNE10200804-200903

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-08037i1AZFE..ANE11..TH200312-200703

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-22080i1ZZFE..ZNE10200804-200903

main17167-28031i1AZFE..ANE11..TH200312-200703

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-22080i1ZZFE..ZNE10200804-200903

main17168-28021i1AZFE..ANE1#..TAIW200312-200703

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-22010i1ZZFE..ZNE10200804-200903

main17173-28010i1AZFE..ANE11..TH200312-200703

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-22030i1ZZFE..ZNE10200804-200903

main17177-28010i1AZFE..ANE12;1AZFE..ANE11..06S200312-200910

sub17177-28031

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-28230i1AZFE..ANE11..TH200312-200703

*114=TOYOTA/28230/Y

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-28031i1AZFE..ANE11..TH200312-200703

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-28041i1AZFE..ANE11..TH200312-200703

90119T0010

main90119-T0010

90119T0011

main90119-T0011

90119T0062

main90119-T0062

9017908228

main90179-08228

9017910165

main90179-10165

9162160822

main91621-60822

9164180835

main91641-80835

9164281025

main91642-81025

91651B0814

main91651-B0814

9211281022

main92112-81022

9415080801

main94150-80801

26 parts on this diagram · 2 diagrams in section
