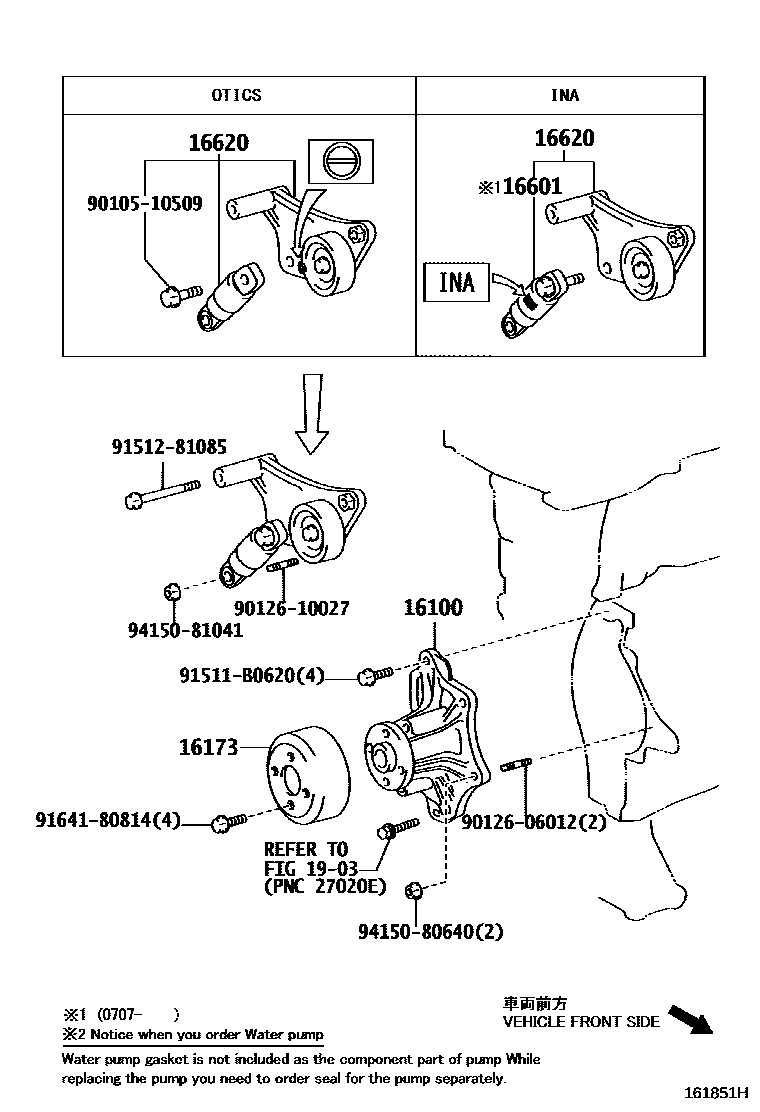

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-0H020i1AZFE..ANE11..TH200312-200909

main16100-0H030i1AZFE..ANE11..TH200512-200910

main16100-29415i1ZZFE..ZNE10200804-200903

16173PULLEY, WATER PUMP

main16173-0H010i1AZFE..ANE11..TH200312-200909

main16173-0H020i1AZFE..ANE11..TH200512-200910

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28041i1AZFE..ANE1#200707-200801

INA

sub16601-28050

main16601-28050i1AZFE..ANE1#200801

INA

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W093i1ZZFE..ZNE10200812-200903

INA

main16620-0W110i1AZFE..ANE12;1AZFE..ANE11..06S200312-200608

sub16620-28070

main16620-22013i1ZZFE..ZNE10200804-200812

OTICS

sub16620-0W093

main16620-28011i1AZFE..ANE11..TH200512-200605

sub16620-0W110

main16620-28012i1AZFE..ANE1#200703-200707

sub16620-28090

main16620-28070i1AZFE..ANE11..TH200608-200703

sub16620-28012

main16620-28071i1AZFE..ANE1#200707-200801

sub16620-28090

main16620-28090i1AZFE..ANE1#200801

1903

9010510509

main90105-10509

9012606012

main90126-06012

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

13 parts on this diagram · 2 diagrams in section
