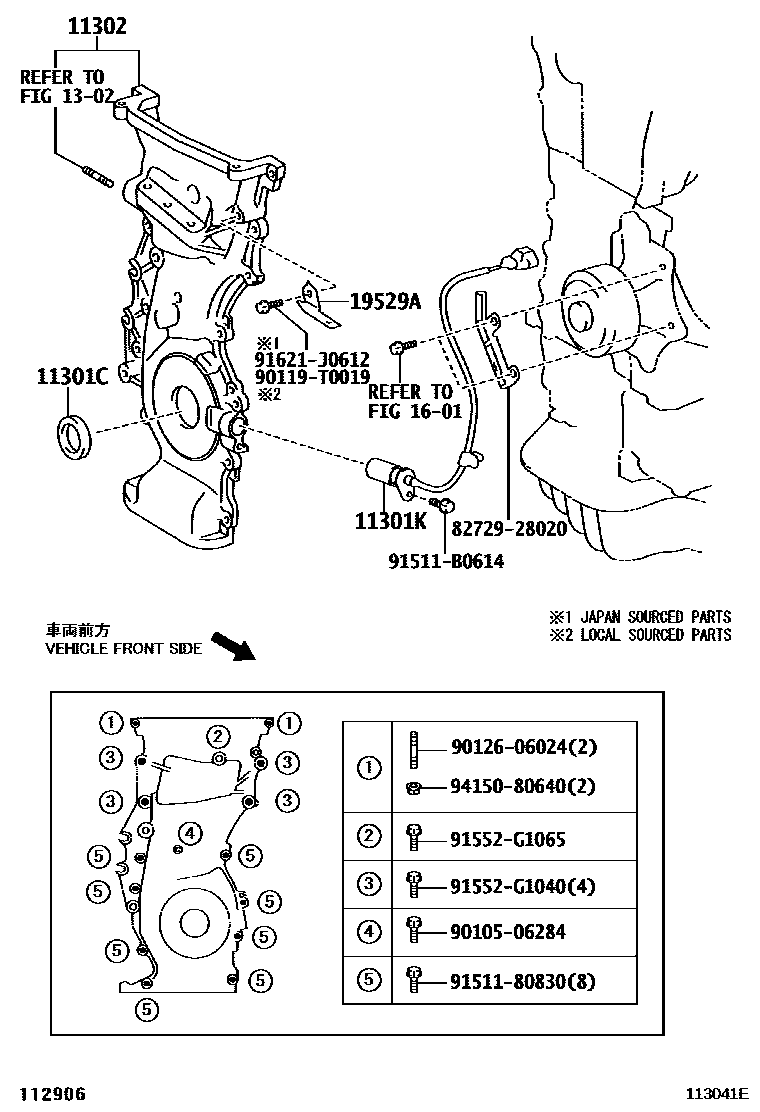

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90080-31083i1AZFE..ANE1#200512-200910

11301KSENSOR, CRANK POSITION

main90919-05030i1ZZFE..ZNE10200804-200903

main90919-05047i1AZFE..ANE1#..TAIW200408-200703

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0H050i1AZFE..ANE1#200312-200510

(L)

main11310-0H051i1AZFE..ANE1#..TAIW200510-200703

(L)

main11310-28081i1AZFE..ANE1#200312-200510

(J)

main11310-28082i1AZFE..ANE1#..TAIW200510-200703

(J)

main11321-0D030i1ZZFE..ZNE10200804-200903

(L)

main11321-22021i1ZZFE..ZNE10200804-200903

(J)

1302

1601

19529ACLAMP

main19529-28010i1AZFE..ANE11..TH200312-200512

8272928020

main82729-28020

9010506284

main90105-06284

90119T0019

main90119-T0019

9012606024

main90126-06024

9151180830

main91511-80830

91511B0614

main91511-B0614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91621J0612

main91621-J0612

9415080640

main94150-80640

16 parts on this diagram · 2 diagrams in section
