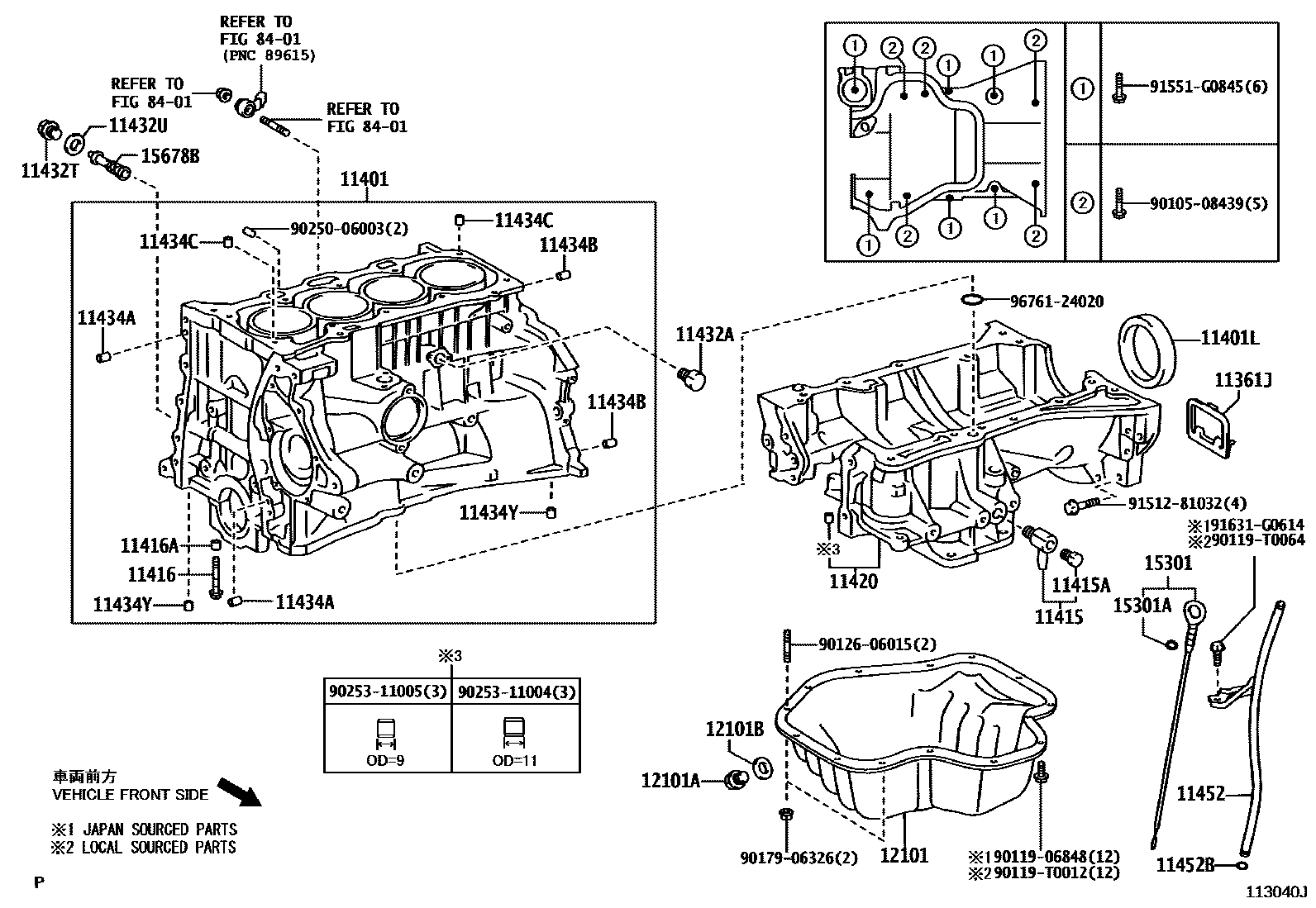

CYLINDER BLOCK

0001 1 0002 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-22021i1ZZFE..ZNE10¥1,260200804-200903

main11361-28010i1AZFE..ANE1#..TAIW¥540200312-200703

11401BLOCK SUB-ASSY, CYLINDER

main11410-29165i1ZZFE..ZNE10¥206,000200804-200807

(J)

sub11410-29166¥206,000

sub16258-28030¥370

sub16268-22021¥6,600

sub16268-22101¥6,500

sub16268-22111¥6,800

sub16268-22161¥6,500

sub16268-22171¥5,900

main11410-29166i1ZZFE..ZNE10¥206,000200807-200903

(J)

main11410-29195i1AZFE..ANE1#¥224,000200312-200510

sub11410-29315¥224,000

main11410-29315i1AZFE..ANE1#..TAIW¥224,000200510-200608

sub11410-29316¥223,000

main11410-29316i1AZFE..ANE1#¥223,000200608-200703

11401LSEAL, ENGINE REAR OIL

main90080-31082i1AZFE..ANE12;1AZFE..ANE11..06S200312-200910

sub90311-T0040

main90311-76001i1ZZFE..ZNE10¥750200804-200903

sub90311-76003¥750

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1ZZFE..ZNE10¥610200804-200903

main90910-09120i1AZFE..ANE1#..TAIW¥610200312-200703

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1AZFE..ANE11..TH¥230200312-200903

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02124i1AZFE..ANE1#..TAIW¥220200312-200703

sub90910-02206¥220

main91511-K0840i1ZZFE..ZNE10¥170200804-200903

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i1AZFE..ANE1#..TAIW¥140200312-200703

11420CRANKCASE ASSY, STIFFENING

main11421-28020i1AZFE..ANE12;1AZFE..ANE11..06S¥58,800200312-200610

main11421-28031i1AZFE..ANE1#..TAIW¥53,200200610-200901

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i1AZFE..ANE1#..TAIW¥230200312-200703

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-14013i1AZFE..ANE11..TH¥120200312-200703

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-14011i1AZFE..ANE11..TH¥50200312-200703

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i1AZFE..ANE11..TH¥140200312-200703

L=18,OD=8

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i1AZFE..ANE1#..TAIW¥120200312-200903

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-14003i1AZFE..ANE11..TH¥140200312-200703

L=12,OD=14

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08074i1AZFE..ANE11..TH¥100200312-200703

11452GUIDE, OIL LEVEL GAGE

main11452-0H040i1AZFE..ANE1#..TAIW200312-200703

(L)

main11452-22030i1ZZFE..ZNE10¥2,070200804-200808

sub11452-22031¥2,070

sub11459-22010¥970

main11452-22031i1ZZFE..ZNE10¥2,070200808-200903

main11452-28030i1AZFE..ANE1#..TAIW¥2,080200312-200703

(J)

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1AZFE..ANE11..TH¥190200312-200903

12101PAN SUB-ASSY, OIL

main12101-0H030i1AZFE..ANE1#..TAIW200312-200703

(L)

main12101-22024i1ZZFE..ZNE10¥14,600200804-200903

main12101-28050i1AZFE..ANE1#..TAIW¥16,800200312-200703

(J)

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1AZFE..ANE11..TH¥160200312-200903

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1AZFE..ANE11..TH¥90200312-200903

15301GAGE SUB-ASSY, OIL LEVEL

main15301-22050i1ZZFE..ZNE10¥1,200200804-200903

main15301-28051i1AZFE..ANE1#..TAIW¥1,200200312-200703

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1AZFE..ANE11..TH¥140200312-200903

15678BFILTER, OIL CONTROL VALVE

main15678-28010i1AZFE..ANE11..TH¥720200312-200703

8401

9010508439

main90105-08439¥250

9011906848

main90119-06848¥60

90119T0012

main90119-T0012

90119T0064

main90119-T0064

9012606015

main90126-06015¥110

9017906326

main90179-06326¥60

9025006003

main90250-06003¥90

9025311004

main90253-11004¥80

9025311005

main90253-11005¥60

9151281032

main91512-81032¥110

91551G0845

main91551-G0845¥100

91631G0614

main91631-G0614¥60

9676124020

main96761-24020¥200

37 parts on this diagram · 2 diagrams in section
