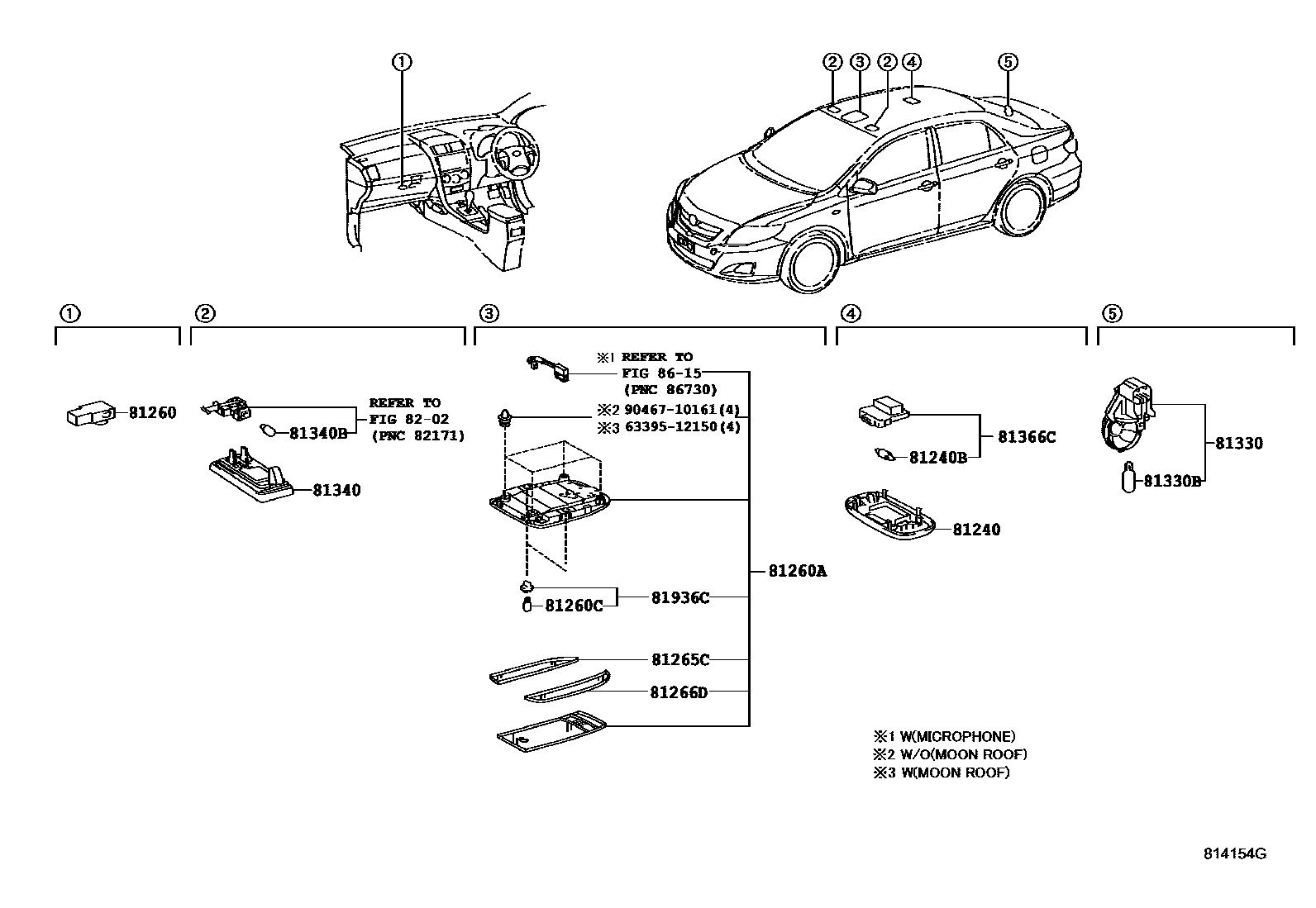

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B1i200703-200812

LT.GRAY,TRIM1#

main81240-52040-E0i200703-200812

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200812-201004

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-48010i200703-200812

81260ALAMP ASSY, MAP

main81260-12150-B0i200703-200812

LT.GRAY,TRIM1#

main81260-12150-E0i201004-201112

GREGE,TRIM4#

main81260-12160-B0supersedes 81260-12150-B0i201004-201112

MOON ROOF-WITH,LT.GRAY,TRIM1#

main81260-12160-E0i201004-201103

MOON ROOF-WITH,GREGE,TRIM4#

main81260-12170-B0supersedes 81260-12162-B0i201004-201010

AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),LT.GRAY,TRIM1#

main81260-12170-E0i201004-201010

AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),GREGE,TRIM4#

main81260-12172-B0i201112-201311

AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),LT.GRAY,TRIM1#

main81260-12180-B0supersedes 81260-12162-B0i201004-201112

MOON ROOF-WITH&AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),LT.GRAY,TRIM1#

main81260-12180-E0supersedes 81260-12150-E0i201004-201103

MOON ROOF-WITH&AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),GREGE,TRIM4#

main81260-12182-B0i201112-201203

MOON ROOF-WITH&AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062×2i201004-201112

12V 8W

main99132-12050×2i201112

12V 5W

81265CLENS, MAP LAMP, NO.1

main81265-12160i200703-200812

81266DLENS, MAP LAMP, NO.2

main81266-12160i200812-201002

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020i200703-200812

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020i200703-200812

12V 3.8W

81340LAMP ASSY, VANITY

main81340-30100-B0×2i200703-200812

LT.GRAY,TRIM1#

81340BBULB (FOR VANITY LAMP)

main90981-11062×2i200703-200812

12V 8W

81366CBASE, ROOM LAMP SWITCH

main81366-68010i200703-200812

81936CBULB ASSY

main81936-12150×2i200703-200812

main81936-12160×2i201112

8202

8615

6339512150CLIP, ROOF HEADLINING TRIM

main63395-12150

9046710161

main90467-10161

17 parts on this diagram · 1 diagram in section
