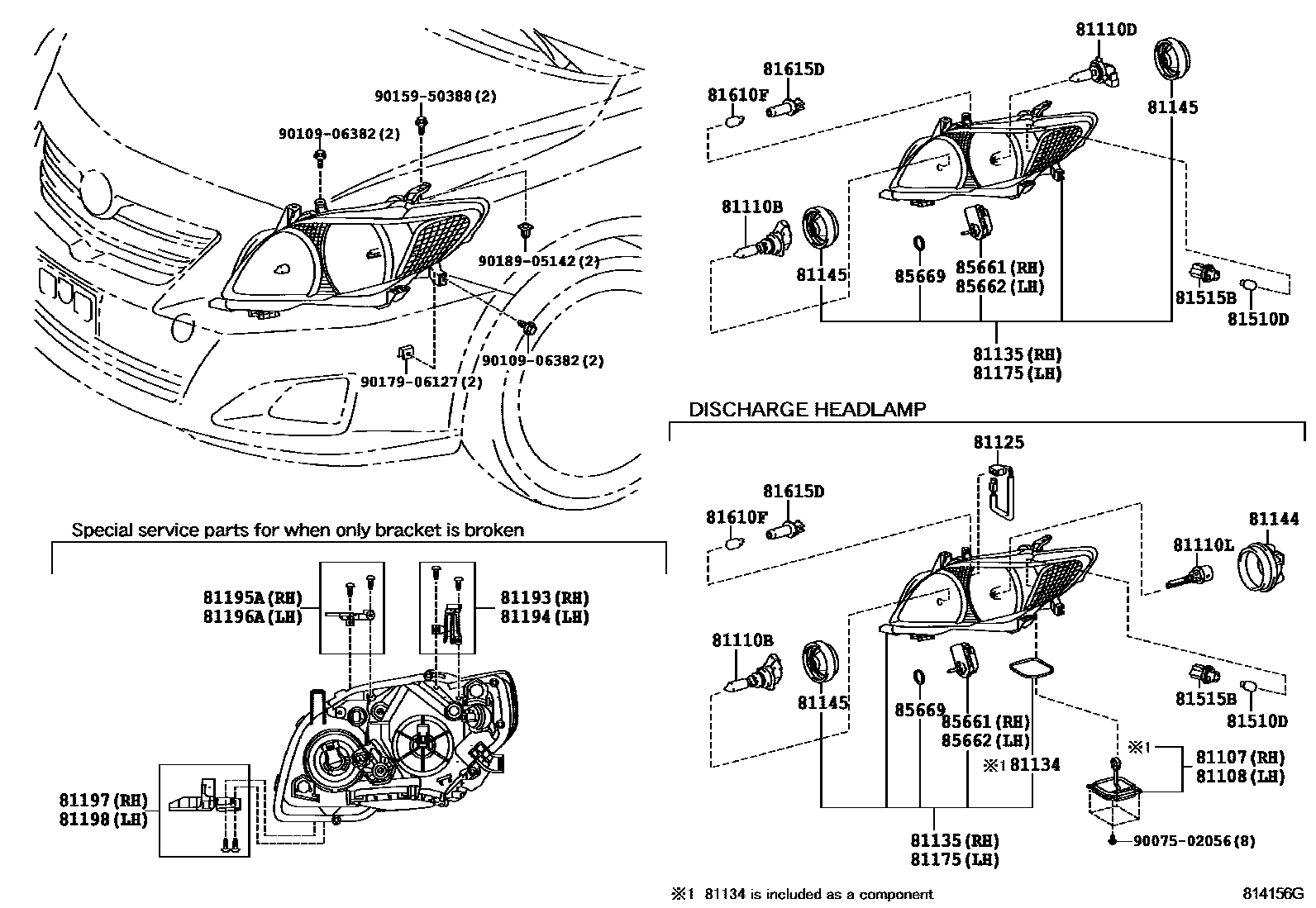

HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
HEADLAMP-DISCHARGE
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
HEADLAMP-DISCHARGE
81110BBULB(FOR HEADLAMP, NO.1)
12V 65W
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 51W,HALOGEN
81110LBULB, DISCHARGE HEADLAMP
43V 35W
45V 35W,HEADLAMP-DISCHARGE
45V 35W,HEADLAMP-DISCHARGE
81125CORD, HEADLAMP
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
HEADLAMP-HALOGEN(SMOKE)
HEADLAMP-DISCHARGE
81144COVER, HEADLAMP, NO.1
81145COVER, HEADLAMP, NO.2
HEADLAMP-DISCHARGE
81175UNIT ASSY, HEADLAMP, LH
HEADLAMP-HALOGEN(SMOKE)
HEADLAMP-DISCHARGE
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81198BRACKET, HEADLAMP, LWR LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502056
main90075-02056
9010906382
main90109-06382
9015950388
main90159-50388
9017906127
main90179-06127
9018905142
main90189-05142
29 parts on this diagram · 3 diagrams in section
