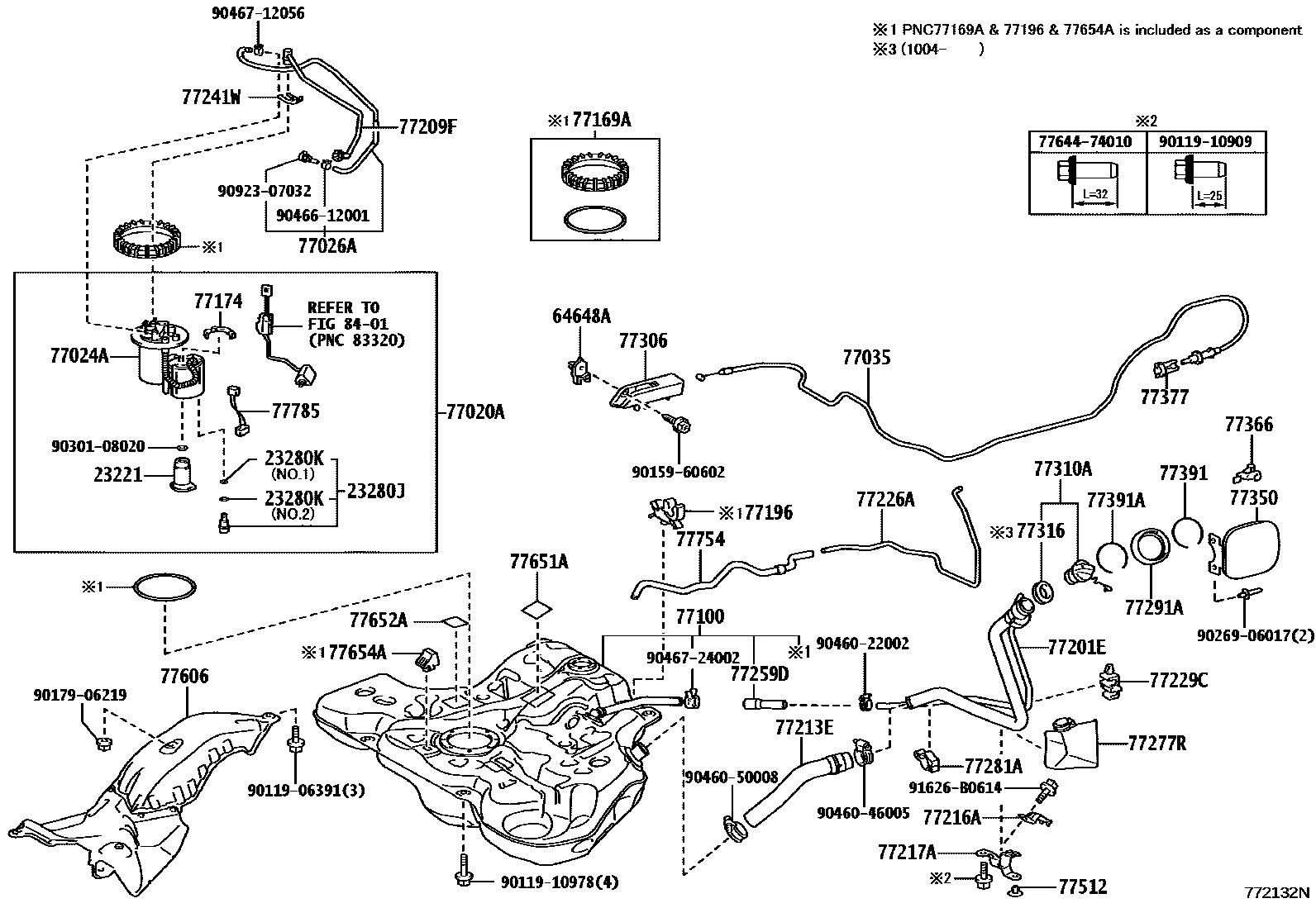

FUEL TANK & TUBE
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.1
NO.2
NO.2:REFER ILLUST.
64648AGROMMET, LUGGAGE DOOR LOCK OPENER
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
sub77020-12581
77024APLATE SUB-ASSY, FUEL SUCTION
sub77024-12030
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77259DHOSE, FUEL, NO.1
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512BRACKET, FUEL TANK, REAR
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77654ACUSHION, FUEL TANK, NO.4
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
8401
7764474010BOLT, FUEL TANK
main77644-74010
9011906391
main90119-06391
9011910909
main90119-10909
9011910978
main90119-10978
9015960602
main90159-60602
9017906219
main90179-06219
9026906017
main90269-06017
9030108020
main90301-08020
9046022002
main90460-22002
9046046005
main90460-46005
9046050008
main90460-50008
9046612001
main90466-12001
9046712056
main90467-12056
9046724002
main90467-24002
9092307032
main90923-07032
91626B0614
main91626-B0614
56 parts on this diagram · 2 diagrams in section
