EPC Data

MUDGUARD & SPOILER

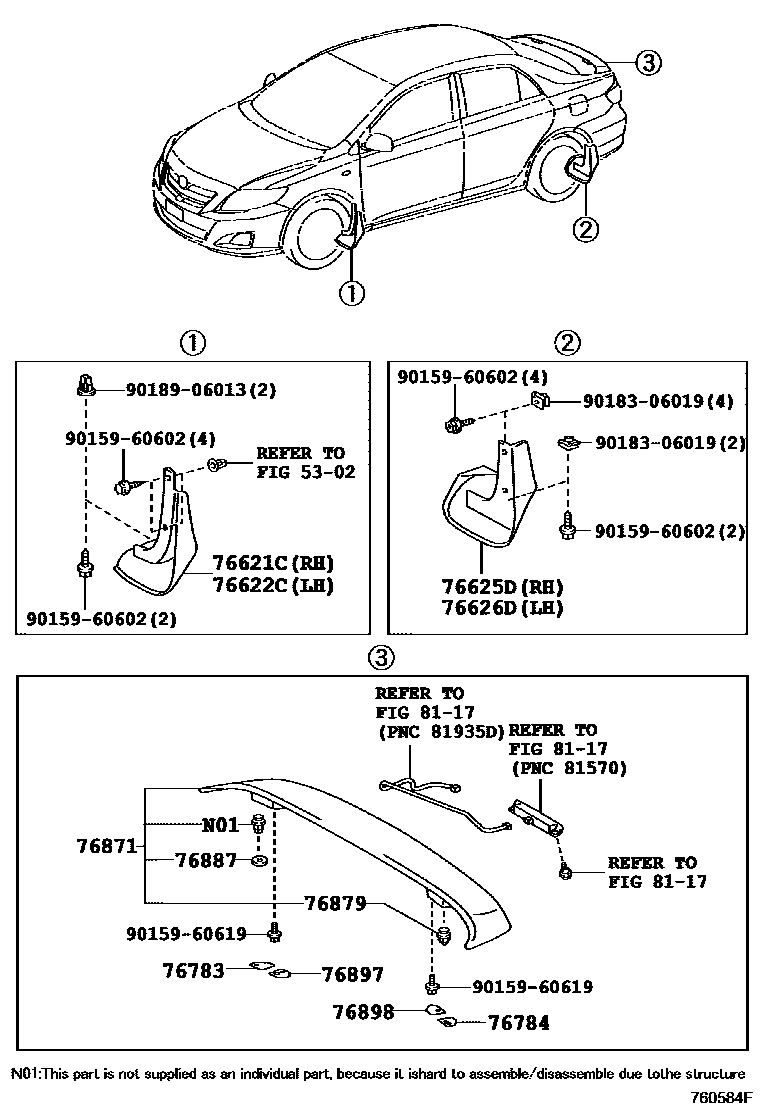

Parts diagram
5302
76621CMUDGUAD, FRONT FENDER, RH
main76621-12260i200703-201311
MUD GUARD-WITHOUT,BLACK
main76621-12260i200703-201311
BLACK
main76621-12270-A0i200703-201311
MUD GUARD-WITHOUT,SUPER WHITE 2,040
main76621-12270-A0i200703-201311
SUPER WHITE 2,040
main76621-12270-B0i200703-201311
MUD GUARD-WITHOUT,SILVER ME.,1F7
main76621-12270-B0i200703-201311
SILVER ME.,1F7
main76621-12270-B1i200703-201311
MUD GUARD-WITHOUT,GRAY ME.,1G3
main76621-12270-B1i200703-201311
GRAY ME.,1G3
main76621-12270-C0i200703-201311
BLACK MC.,209
main76621-12270-C0i200703-201311
MUD GUARD-WITHOUT,BLACK MC.,209
main76621-12270-D0i200703-201311
MUD GUARD-WITHOUT,RED M.M.,3R3
main76621-12270-D0i200703-201311
RED M.M.,3R3
main76621-12270-J0i200703-201311
MUD GUARD-WITHOUT,LT.BLUE M.M.,8S1
main76621-12270-J0i200703-201311
LT.BLUE M.M.,8S1
main76621-12270-J1i200703-201004
MUD GUARD-WITHOUT,DK.BLUE MC.,8S6
main76621-12270-J1i200703-201004
DK.BLUE MC.,8S6
main76621-12270-J2i200703-201004
MUD GUARD-WITHOUT,DK.BLUE ME.,8T8
main76621-12270-J2i200703-201004
DK.BLUE ME.,8T8
main76621-12270-J3i201004-201311
BLUE ME.,8T7
main76621-12270-J3i201004-201311
MUD GUARD-WITHOUT,BLUE ME.,8T7
main76621-12270-J4i201004-201311
MUD GUARD-WITHOUT,BLUE ME.,8U6
main76621-12270-J4i201004-201311
BLUE ME.,8U6
76622CMUDGUARD, FRONT FENDER, LH
main76622-12260i200703-201311
BLACK
main76622-12260i200703-201311
MUD GUARD-WITHOUT,BLACK
main76622-12270-A0i200703-201311
SUPER WHITE 2,040
main76622-12270-A0i200703-201311
MUD GUARD-WITHOUT,SUPER WHITE 2,040
main76622-12270-B0i200703-201311
MUD GUARD-WITHOUT,SILVER ME.,1F7
main76622-12270-B0i200703-201311
SILVER ME.,1F7
main76622-12270-B1i200703-201311
GRAY ME.,1G3
main76622-12270-B1i200703-201311
MUD GUARD-WITHOUT,GRAY ME.,1G3
main76622-12270-C0i200703-201311
BLACK MC.,209
main76622-12270-C0i200703-201311
MUD GUARD-WITHOUT,BLACK MC.,209
main76622-12270-D0i200703-201311
MUD GUARD-WITHOUT,RED M.M.,3R3
main76622-12270-D0i200703-201311
RED M.M.,3R3
main76622-12270-J0i200703-201311
LT.BLUE M.M.,8S1
main76622-12270-J0i200703-201311
MUD GUARD-WITHOUT,LT.BLUE M.M.,8S1
main76622-12270-J1i200703-201004
DK.BLUE MC.,8S6
main76622-12270-J1i200703-201004
MUD GUARD-WITHOUT,DK.BLUE MC.,8S6
main76622-12270-J2i200703-201004
MUD GUARD-WITHOUT,DK.BLUE ME.,8T8
main76622-12270-J2i200703-201004
DK.BLUE ME.,8T8
main76622-12270-J3i201004-201311
MUD GUARD-WITHOUT,BLUE ME.,8T7
main76622-12270-J3i201004-201311
BLUE ME.,8T7
main76622-12270-J4i201004-201311
MUD GUARD-WITHOUT,BLUE ME.,8U6
main76622-12270-J4i201004-201311
BLUE ME.,8U6
76625DMUDGUARD, QUARTER PANEL, REAR RH
main76625-12530i200703-201004
BLACK
main76625-12530i200703-201004
MUD GUARD-WITHOUT,BLACK
main76625-12550-A0i200703-201004
SUPER WHITE 2,040
main76625-12550-A0i200703-201004
MUD GUARD-WITHOUT,SUPER WHITE 2,040
main76625-12550-B0i200703-201004
SILVER ME.,1F7
main76625-12550-B0i200703-201004
MUD GUARD-WITHOUT,SILVER ME.,1F7
main76625-12550-B1i200703-201004
MUD GUARD-WITHOUT,GRAY ME.,1G3
main76625-12550-B1i200703-201004
GRAY ME.,1G3
main76625-12550-C0i200703-201004
BLACK MC.,209
main76625-12550-C0i200703-201004
MUD GUARD-WITHOUT,BLACK MC.,209
main76625-12550-D0i200703-201004
RED M.M.,3R3
main76625-12550-D0i200703-201004
MUD GUARD-WITHOUT,RED M.M.,3R3
main76625-12550-J0i200703-201004
LT.BLUE M.M.,8S1
main76625-12550-J0i200703-201004
MUD GUARD-WITHOUT,LT.BLUE M.M.,8S1
main76625-12550-J1i200703-201004
MUD GUARD-WITHOUT,DK.BLUE MC.,8S6
main76625-12550-J1i200703-201004
DK.BLUE MC.,8S6
main76625-12550-J2i200703-201004
DK.BLUE ME.,8T8
main76625-12550-J2i200703-201004
MUD GUARD-WITHOUT,DK.BLUE ME.,8T8
main76625-12580i201004-201311
BLACK
main76625-12580i201004-201311
MUD GUARD-WITHOUT,BLACK
main76625-12590-A0i201004-201311
SUPER WHITE 2,040
main76625-12590-A0i201004-201311
MUD GUARD-WITHOUT,SUPER WHITE 2,040
main76625-12590-B0i201004-201311
SILVER ME.,1F7
main76625-12590-B0i201004-201311
MUD GUARD-WITHOUT,SILVER ME.,1F7
main76625-12590-B1i201004-201311
GRAY ME.,1G3
main76625-12590-B1i201004-201311
MUD GUARD-WITHOUT,GRAY ME.,1G3
main76625-12590-C0i201004-201311
BLACK MC.,209
main76625-12590-C0i201004-201311
MUD GUARD-WITHOUT,BLACK MC.,209
main76625-12590-D1i201004-201311
RED M.M.,3R3
main76625-12590-D1i201004-201311
MUD GUARD-WITHOUT,RED M.M.,3R3
main76625-12590-J0i201004-201311
LT.BLUE M.M.,8S1
main76625-12590-J0i201004-201311
MUD GUARD-WITHOUT,LT.BLUE M.M.,8S1
main76625-12590-J1i201004-201311
BLUE ME.,8T7
main76625-12590-J1i201004-201311
MUD GUARD-WITHOUT,BLUE ME.,8T7
main76625-12590-J2i201004-201311
BLUE ME.,8U6
main76625-12590-J2i201004-201311
MUD GUARD-WITHOUT,BLUE ME.,8U6
76626DMUDGUARD, QUARTER PANEL, REAR LH
main76626-12530i200703-201004
BLACK
main76626-12530i200703-201004
MUD GUARD-WITHOUT,BLACK
main76626-12550-A0i200703-201004
SUPER WHITE 2,040
main76626-12550-A0i200703-201004
MUD GUARD-WITHOUT,SUPER WHITE 2,040
main76626-12550-B0i200703-201004
SILVER ME.,1F7
main76626-12550-B0i200703-201004
MUD GUARD-WITHOUT,SILVER ME.,1F7
main76626-12550-B1i200703-201004
GRAY ME.,1G3
main76626-12550-B1i200703-201004
MUD GUARD-WITHOUT,GRAY ME.,1G3
main76626-12550-C0i200703-201004
BLACK MC.,209
main76626-12550-C0i200703-201004
MUD GUARD-WITHOUT,BLACK MC.,209
main76626-12550-D0i200703-201004
RED M.M.,3R3
main76626-12550-D0i200703-201004
MUD GUARD-WITHOUT,RED M.M.,3R3
main76626-12550-J0i200703-201004
LT.BLUE M.M.,8S1
main76626-12550-J0i200703-201004
MUD GUARD-WITHOUT,LT.BLUE M.M.,8S1
main76626-12550-J1i200703-201004
DK.BLUE MC.,8S6
main76626-12550-J1i200703-201004
MUD GUARD-WITHOUT,DK.BLUE MC.,8S6
main76626-12550-J2i200703-201004
MUD GUARD-WITHOUT,DK.BLUE ME.,8T8
main76626-12550-J2i200703-201004
DK.BLUE ME.,8T8
main76626-12580i201004-201311
BLACK
main76626-12580i201004-201311
MUD GUARD-WITHOUT,BLACK
main76626-12590-A0i201004-201311
SUPER WHITE 2,040
main76626-12590-A0i201004-201311
MUD GUARD-WITHOUT,SUPER WHITE 2,040
main76626-12590-B0i201004-201311
SILVER ME.,1F7
main76626-12590-B0i201004-201311
MUD GUARD-WITHOUT,SILVER ME.,1F7
main76626-12590-B1i201004-201311
GRAY ME.,1G3
main76626-12590-B1i201004-201311
MUD GUARD-WITHOUT,GRAY ME.,1G3
main76626-12590-C0i201004-201311
BLACK MC.,209
main76626-12590-C0i201004-201311
MUD GUARD-WITHOUT,BLACK MC.,209
main76626-12590-D1i201004-201311
RED M.M.,3R3
main76626-12590-D1i201004-201311
MUD GUARD-WITHOUT,RED M.M.,3R3
main76626-12590-J0i201004-201311
LT.BLUE M.M.,8S1
main76626-12590-J0i201004-201311
MUD GUARD-WITHOUT,LT.BLUE M.M.,8S1
main76626-12590-J1i201004-201311
BLUE ME.,8T7
main76626-12590-J1i201004-201311
MUD GUARD-WITHOUT,BLUE ME.,8T7
main76626-12590-J2i201004-201311
MUD GUARD-WITHOUT,BLUE ME.,8U6
main76626-12590-J2i201004-201311
BLUE ME.,8U6
76783TAPE, REAR SPOILER, LOWER RH
main76783-12090
76784TAPE, REAR SPOILER, LOWER LH
main76784-12090
76871SPOILER, REAR
main76871-12380
76879CLIP, REAR SPOILER, NO.1
main76879-12060¥120
76887SEAL, REAR SPOILER
main76887-12040
76897PROTECTOR, REAR SPOILER, SIDE RH
main76897-12170
76898PROTECTOR, REAR SPOILER, SIDE LH
main76898-12170
8117
9015960602
main90159-60602¥60
9015960619
main90159-60619¥70
9018306019
main90183-06019¥80
9018906013
main90189-06013¥70

17 parts on this diagram · 1 diagram in section
