REAR SEAT & SEAT TRACK

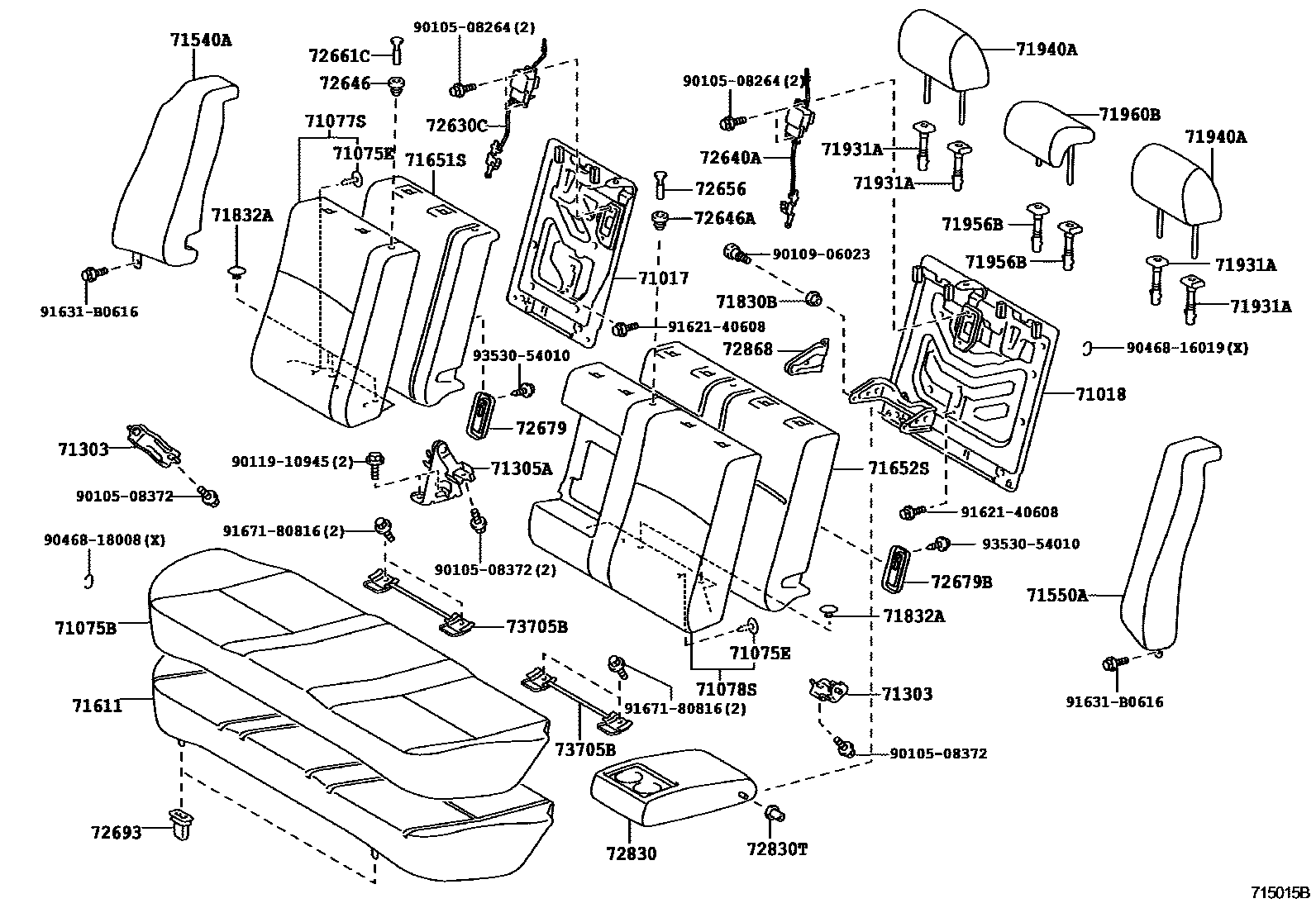

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-12860i200703-201004
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-12400i200703-201004
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-12D40-B1i200703-201004
DARK GRAY,TRIM1#
sub71075-12D42
main71075-12D50-B1i200703-201004
DARK GRAY,TRIM1#
sub71075-12D52
main71075-12D50-E1i200703-201004
GREGE,TRIM4#
sub71075-12D52
main71075-12F40-B0i201004-201311
DK.GRAY,TRIM1#
main71075-12J90-B1i201004-201311
DK.GRAY,TRIM1#
main71075-12J90-E2i201004-201103
GREGE,TRIM4#
71075ECLIP(FOR REAR SEAT)
main90467-07080-C0i201103-201311
BLACK
sub90467-07080
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-12J60-B1i200703-201004
DARK GRAY,TRIM1#
sub71077-12J62
main71077-12J60-E1i200703-201004
GREGE,TRIM4#
sub71077-12J62
main71077-12J70-B1i200703-201004
DARK GRAY,TRIM1#
sub71077-12J72
main71077-12K80-B0i201004-201311
DK.GRAY,TRIM1#
main71077-12N10-B1i201004-201311
DK.GRAY,TRIM1#
main71077-12N10-E2i201004-201103
GREGE,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-12G00-B1i200703-201004
DARK GRAY,TRIM1#
sub71078-12G02
main71078-12G00-E1i200703-201004
GREGE,TRIM4#
sub71078-12G02
main71078-12G10-B1i200703-201004
DARK GRAY,TRIM1#
sub71078-12G12
main71078-12G80-B0i201004-201311
DK.GRAY,TRIM1#
main71078-12L50-B1i201004-201311
DK.GRAY,TRIM1#
main71078-12L50-E2i201004-201103
GREGE,TRIM4#
71303HINGE SUB-ASSY, REAR SEATBACK
main71303-12170i200703-201004
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-12200i200703-201004
71540ABACK ASSY, REAR SIDE SEAT, RH
main71540-12740-B2i200703-201004
DK.GRAY,TRIM1#
sub71540-12742
main71540-12740-E2i200703-201004
GREGE,TRIM4#
sub71540-12742
main71540-12870-B0i201004-201311
DK.GRAY,TRIM1#
main71540-12870-E0i201004-201103
DK.GRAY,TRIM4#
71550ABACK ASSY, REAR SIDE SEAT, LH
main71550-12740-B2i200703-201004
DK.GRAY,TRIM1#
sub71550-12742
main71550-12740-E2i200703-201004
GREGE,TRIM4#
sub71550-12742
main71550-12870-B0i201004-201311
DK.GRAY,TRIM1#
main71550-12870-E0i201004-201103
DK.GRAY,TRIM4#
71611PAD, REAR SEAT CUSHION
main71503-12170i200703-201311
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-12A30i200703-201004
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-12780i200703-201004
71830BBUSH(FOR REAR SEAT ARMREST)
main90386-08077i200703-201004
71832ACLIP, REAR SEATBACK CARPET OR MAT
main90467-09156-C0i200703-201311
BLACK
71931ASUPPORT, REAR SEAT HEADREST
main71956-47010-B2i200703-201311
W/O(LOCK),DK.GRAY,TRIM1#
sub71956-02040
sub71956-47010
main71956-47010-E2i200703-201103
W/O(LOCK),GREGE,TRIM4#
sub71956-02040
sub71956-47010
main71970-47010-B2i200703-201311
W(LOCK),DK.GRAY,TRIM1#
sub71970-02040
sub71970-47010
main71970-47010-E2i200703-201103
W(LOCK),GREGE,TRIM4#
sub71970-02040
sub71970-47010
71940AHEADREST ASSY, REAR SEAT
main71940-12820-B2i200703-201004
DARK GRAY,TRIM1#
sub71940-12820
sub71940-12C60
main71940-12820-E2i200703-201004
GREGE,TRIM4#
sub71940-12820
sub71940-12C60
main71940-12C60-B0i201004-201311
DARK GRAY,TRIM1#
main71940-12C60-E0i201004-201103
GREGE,TRIM4#
71956BSUPPORT, REAR SEAT HEADREST
main71956-47010-B2i200703-201311
W/O(LOCK),DK.GRAY,TRIM1#
sub71956-02040
sub71956-47010
main71956-47010-E2i200703-201103
W/O(LOCK),GREGE,TRIM4#
sub71956-02040
sub71956-47010
main71970-47010-B2i200703-201311
W(LOCK),DK.GRAY,TRIM1#
sub71970-02040
sub71970-47010
main71970-47010-E2i200703-201103
W(LOCK),GREGE,TRIM4#
sub71970-02040
sub71970-47010
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-12410-B2i200703-201004
DARK GRAY,TRIM1#
sub71960-12410
sub71960-12730
main71960-12410-E2i200703-201004
GREGE,TRIM4#
sub71960-12410
sub71960-12730
main71960-12730-B0i201004-201311
DARK GRAY,TRIM1#
main71960-12730-E0i201004-201103
GREGE,TRIM4#
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-12350i200703-201004
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-12320i200703-201004
72646GROMMET, REAR SEATBACK STOP BUTTON
main72646-33010-B4i200703-201311
DK.GRAY,TRIM1#
sub72646-33010
main72646-33010-E3i200703-201103
GREGE,TRIM4#
sub72646-33010
72646AGROMMET, REAR SEATBACK STOP BUTTON
main72646-33010-B4i200703-201311
DK.GRAY,TRIM1#
sub72646-33010
main72646-33010-E3i200703-201103
GREGE,TRIM4#
sub72646-33010
72656BUTTON, REAR SEATBACK STOP RELEASE
main72661-32030-B3i200703-201311
DK.GRAY,TRIM1#
sub72661-32030
main72661-32030-E2i200703-201103
GREGE,TRIM4#
sub72661-32030
72661CBUTTON, REAR SEATBACK LOCK RELEASE
main72661-32030-B3i200703-201311
DK.GRAY,TRIM1#
sub72661-32030
main72661-32030-E2i200703-201103
GREGE,TRIM4#
sub72661-32030
72679BEZEL, REAR SEATBACK LOCK CONTROL
main72679-12010-B0i200703-201311
DK.GRAY,TRIM1#,4#
main72679-12010-B0i200703-201311
DK.GRAY,TRIM1#
72679BBEZEL, REAR SEATBACK LOCK CONTROL
main72679-12010-B0i200703-201311
DK.GRAY,TRIM1#,4#
main72679-12010-B0i200703-201311
DK.GRAY,TRIM1#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i200703-201004
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-12460-B1i200703-201004
DARK GRAY,TRIM1#
sub72830-12461
main72830-12460-E1i200703-201004
GREGE,TRIM4#
sub72830-12461
main72830-12760-B0i201004-201311
DK.GRAY,TRIM1#
main72830-12760-E1i201004-201103
GREGE,TRIM4#
72830TBUSH (FOR REAR SEAT CENTER ARMREST)
main90386-06011i200703-201004
72868COVER, CENTER ARMREST HINGE, RH
main72868-12010-B1i200703-201311
DK.GRAY,TRIM1#
sub72868-12010
main72868-12010-E0i200703-201103
GREGE,TRIM4#
sub72868-12010
73705BBRACKET SUB-ASSY, CROSS ANCHOR
main73705-12070i200703-201004
9010508264
main90105-08264
9010508372
main90105-08372
9010906023
main90109-06023
9011910945
main90119-10945
9046816019
main90468-16019
9046818008
main90468-18008
9162140608
main91621-40608
91631B0616
main91631-B0616
9167180816
main91671-80816
9353054010
main93530-54010

42 parts on this diagram · 1 diagram in section
