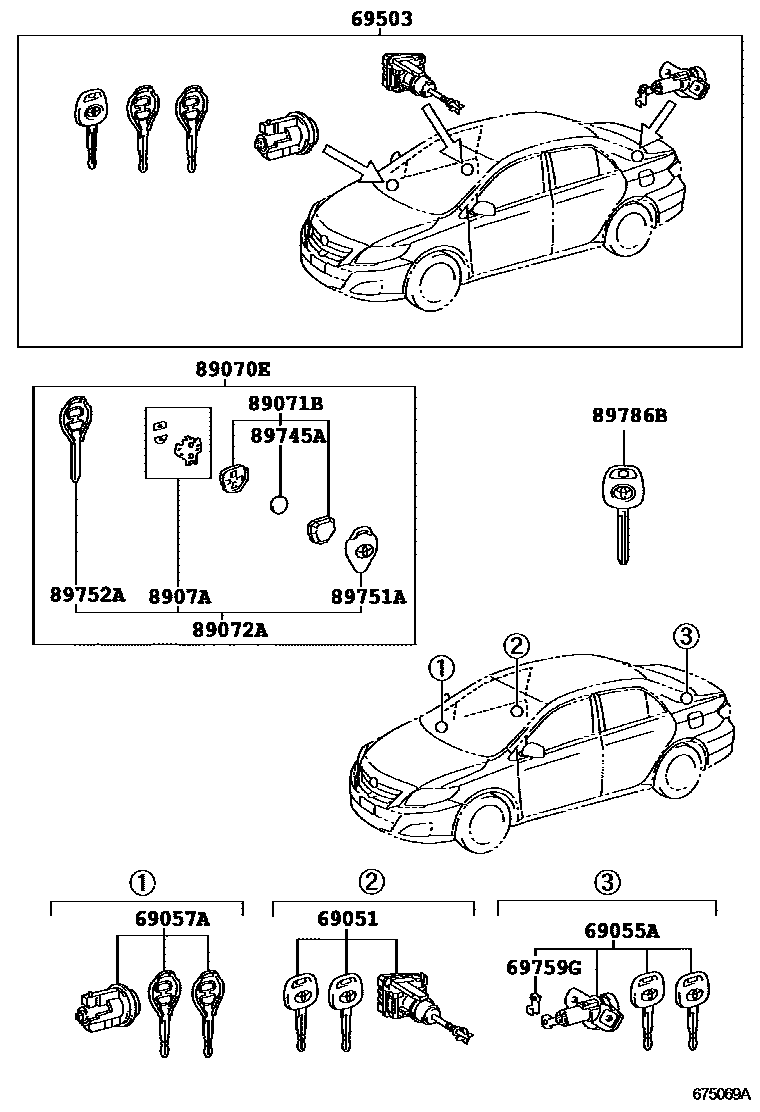

LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) 0002 1W(SMART ENTRY)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12650iZRE152..4FC;ZRE152..6F..D200703-201004

main69051-12680iZRE153201004

main69051-12680iZRE152..6F..N200703-201004

STARTING SYSTEM-PUSH BUTTON

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-12A20iZRE152200703-201004

main69055-12A30iZRE153201004

main69055-12A30iZRE152..N200703-201004

STARTING SYSTEM-PUSH BUTTON

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12800iZRE152201004

main69057-28370iZRE152200703-201004

69503CYLINDER SET, LOCK

main69005-12C20iZRE152200703-201004

main69005-12C50iZRE152..N200703-201004

STARTING SYSTEM-PUSH BUTTON

main69005-12C50iZRE153201004-201311

main69005-12E60iZRE152201004-201311

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iZRE152200703-201004

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-12740iZRE152201004

main89070-26300iZRE152..4FC;ZRE152..6F..D200910-201004

STARTING SYSTEM-PUSH BUTTON

main89070-28850iZRE152200703-200909

STARTING SYSTEM-PUSH BUTTON

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-28240iZRE152201004

main89071-28240iZRE152..N200703-201004

STARTING SYSTEM-PUSH BUTTON

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-12181iZRE152201004

main89072-26080iZRE152..6F..N200910-201004

STARTING SYSTEM-PUSH BUTTON

main89072-28300iZRE152200703-200910

STARTING SYSTEM-PUSH BUTTON

8907ASWITCH SET, TRANSMITTER

main8907A-28010iZRE152200703-201004

STARTING SYSTEM-PUSH BUTTON

main8907A-28010iZRE152201004

89745ABATTERY, TRANSMITTER

main89745-48030iZRE152200703-201004

STARTING SYSTEM-PUSH BUTTON

sub89745-71010

main89745-48030iZRE152201004

sub89745-71010

89751ACOVER, TRANSMITTER HOUSING

main89751-28070iZRE152..N200703-200910

STARTING SYSTEM-PUSH BUTTON

main89751-52140iZRE152201004

main89751-52140iZRE152..6F..N200910-201004

STARTING SYSTEM-PUSH BUTTON

89752ACASE, TRANSMITTER HOUSING

main89752-12140iZRE152201004

main89752-28050iZRE152..6F..N200703-201004

STARTING SYSTEM-PUSH BUTTON

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iZRE152200703-201004

BLANK KEY

main89786-60170iZRE152200703-201004

BLANK KEY,STARTING SYSTEM-PUSH BUTTON

main89786-60220iZRE152201004

BLANK KEY

13 parts on this diagram · 2 diagrams in section
