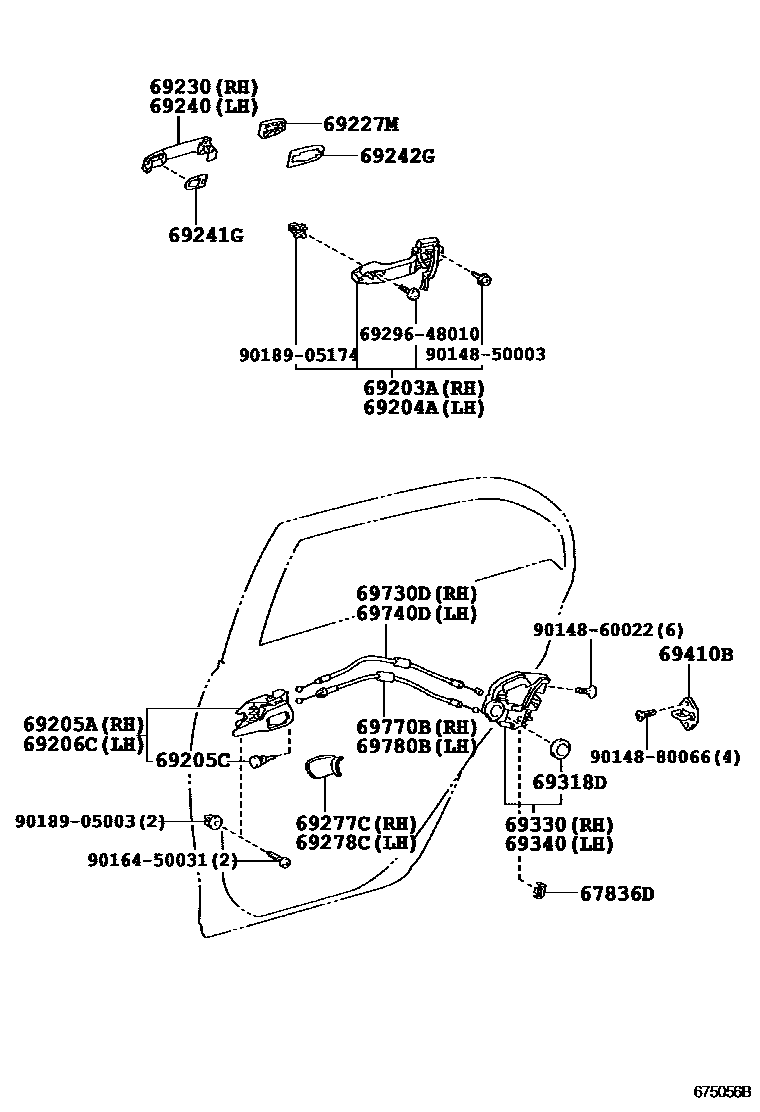

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-12040×2i200703-200812

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-12110i200812-201002

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-12110i200812-201002

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-12220-B4i200812-201004

SILVER,TRIM1#,4#

main69205-12220-B6i201004-201311

ORNAMENT SILVER,TRIM1#,4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027×2i200703-200812

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-12220-B4i200703-200812

SILVER,TRIM1#,4#

main69206-12220-B6i201004-201311

ORNAMENT SILVER,TRIM1#,4#

69227MCOVER, REAR DOOR OUTSIDE HANDLE

main69227-42060×2i201004-201311

BLACK MATERIAL

main69227-42070-A3×2i201004-201311

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SUPER WHITE 2,040

sub69227-42901

main69227-42070-C2×2i200812-201004

BLACK MC.,209

sub69227-42901

main69227-42070-P5×2i201004-201311

GRAY ME.,1G3

sub69227-42901

main69227-42070-P6×2i200812-201004

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SILVER ME.,1F7

sub69227-42901

main69227-42070-R2×2i200703-200812

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),LT.BLUE M.M.,8S1

sub69227-42901

main69227-42070-R8×2i200812-201004

DK.BLUE MC.,8S6

sub69227-42901

main69227-42070-V0×2i200812-201004

DK.BLUE ME.,8T8

sub69227-42901

main69227-42070-V2×2i201004-201311

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLUE ME.,8T7

sub69227-42901

main69227-42070-V5×2i201004-201311

BLUE ME.,8U6

sub69227-42901

main69227-42070-X4×2i200703-200812

RED M.M.,3R3

sub69227-42901

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-12220-A0i200703-200812

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SUPER WHITE 2,040

sub69211-12903

sub69211-52090

main69211-12220-C2i200703-200812

BLACK MC.,209

sub69211-12903

sub69211-52090

main69211-12220-P5i201004-201311

GRAY ME.,1G3

sub69211-12903

sub69211-52090

main69211-12220-P6i200703-200812

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SILVER ME.,1F7

sub69211-12903

sub69211-52090

main69211-12220-R2i200703-200812

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),LT.BLUE M.M.,8S1

sub69211-12903

sub69211-52090

main69211-12220-R8i200812-201004

DK.BLUE MC.,8S6

sub69211-12903

sub69211-52090

main69211-12220-V0i200703-200812

DK.BLUE ME.,8T8

sub69211-12903

sub69211-52090

main69211-12220-V2i201004-201311

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLUE ME.,8T7

sub69211-12903

sub69211-52090

main69211-12220-V4i201004-201311

BLUE ME.,8U6

sub69211-12903

sub69211-52090

main69211-12220-X4i200703-200812

RED M.M.,3R3

sub69211-12903

sub69211-52090

main69211-42010i200812-201004

NO PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-12220-A0i200703-200812

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SUPER WHITE 2,040

sub69211-12903

sub69211-52090

main69211-12220-C2i200703-200812

BLACK MC.,209

sub69211-12903

sub69211-52090

main69211-12220-P5i201004-201311

GRAY ME.,1G3

sub69211-12903

sub69211-52090

main69211-12220-P6i201004-201311

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SILVER ME.,1F7

sub69211-12903

sub69211-52090

main69211-12220-R2i201004-201311

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),LT.BLUE M.M.,8S1

sub69211-12903

sub69211-52090

main69211-12220-R8i201004-201304

DK.BLUE MC.,8S6

sub69211-12903

sub69211-52090

main69211-12220-V0i200703-200812

DK.BLUE ME.,8T8

sub69211-12903

sub69211-52090

main69211-12220-V2i201004-201311

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLUE ME.,8T7

sub69211-12903

sub69211-52090

main69211-12220-V4i201004-201311

BLUE ME.,8U6

sub69211-12903

sub69211-52090

main69211-12220-X4i200703-200812

DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),RED M.M.,3R3

sub69211-12903

sub69211-52090

main69211-42010i201004-201311

NO PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-48020×2i200812-201004

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-42010×2i200703-200709

main69242-52020×2i200710-200812

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-12140-B0i200703-200812

DK.GRAY,TRIM1#

main69277-12140-E0i200812-201004

GREGE,TRIM4#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-12140-B0i200812-201004

DK.GRAY,TRIM1#

main69278-12140-E0i200703-200812

GREGE,TRIM4#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2i200703-200812

69330LOCK ASSY, REAR DOOR, RH

main69050-42021i200812-201004

69340LOCK ASSY, REAR DOOR, LH

main69060-42021i200812-201004

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33010×2i200812-201004

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-12100i200703-200812

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-12100i200703-200812

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-12210i200812-201004

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-12210i200703-200812

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

9018905174

main90189-05174

28 parts on this diagram · 1 diagram in section
