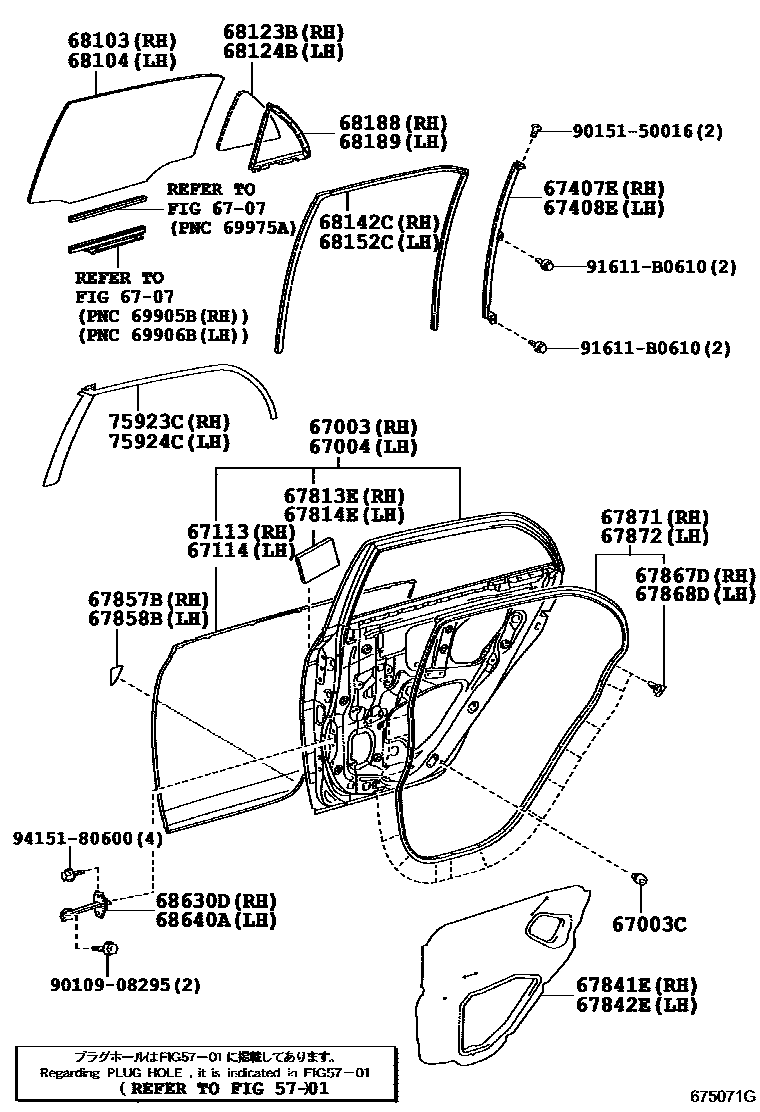

REAR DOOR PANEL & GLASS
5701
67003CCUSHION, REAR DOOR PANEL
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67813ESHEET, QUARTER PANEL SILENCER, RH
67814ESHEET, QUARTER PANEL SILENCER, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=3.5,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=3.5,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*UVCT,T=3.5,GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*UVCT,T=3.5,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75923CTAPE, BLACK OUT, NO.2 RH
75924CTAPE, BLACK OUT, NO.2 LH
9010908295
main90109-08295
9015150016
main90151-50016
91611B0610
main91611-B0610
9415180600
main94151-80600
35 parts on this diagram · 2 diagrams in section
