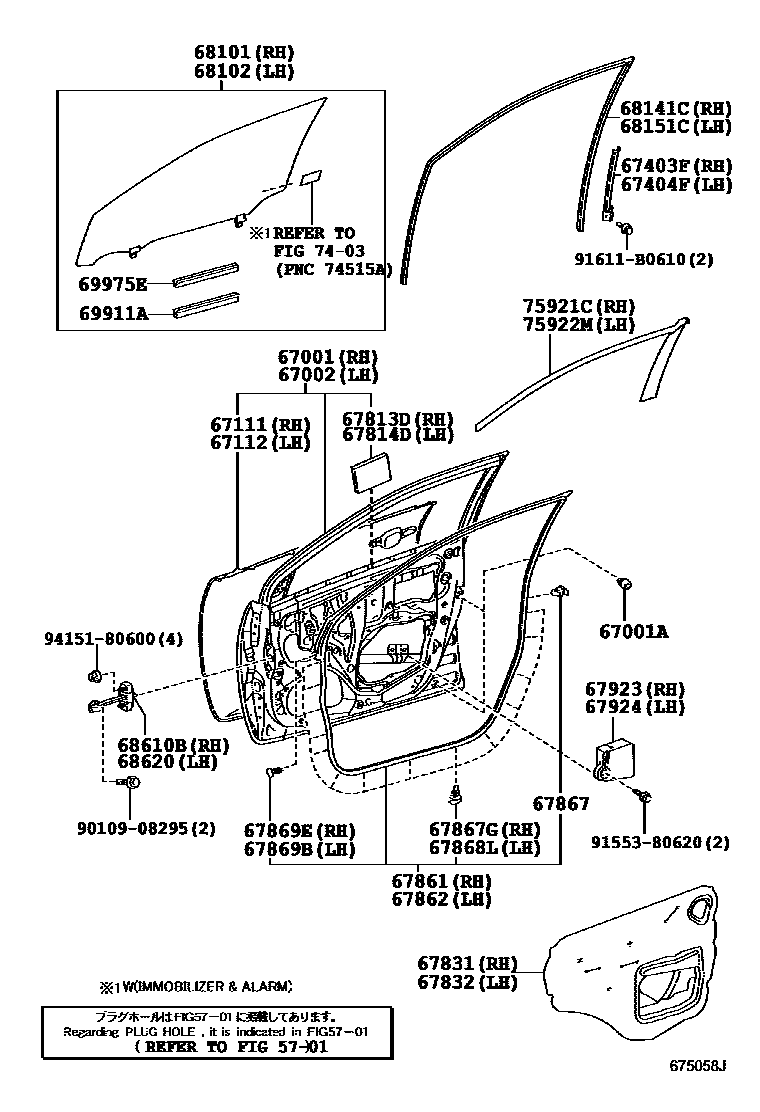

FRONT DOOR PANEL & GLASS
5701
67001ACUSHION, FRONT DOOR PANEL
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67813DSHEET, QUARTER PANEL SILENCER, RH
67814DSHEET, QUARTER PANEL SILENCER, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CLIP, DOOR WEATHERSTRIP
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67869ECLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCT,T=3.5,GREEN,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
sub68101-12A71
*UVCT,T=3.5,GREEN,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
sub68101-12A72
*UVCT,T=3.5,GREEN
*UVCT,T=3.5,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCT,T=3.5,GREEN,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
sub68102-12A71
*UVCT,T=3.5,GREEN,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
sub68102-12A72
*UVCT,T=3.5,GREEN
*UVCT,T=3.5,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
69911ACHANNEL, FRONT DOOR GLASS, NO.1
69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1
7403
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
9010908295
main90109-08295
9155380620
main91553-80620
91611B0610
main91611-B0610
9415180600
main94151-80600
36 parts on this diagram · 2 diagrams in section
