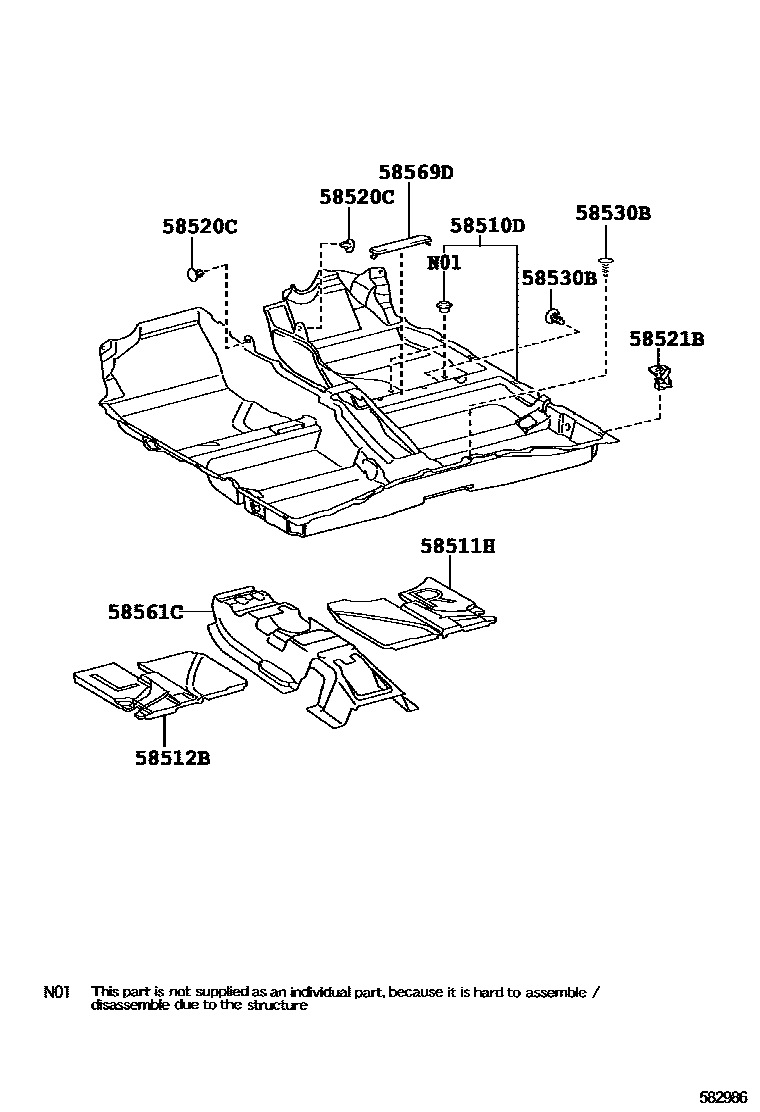

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-12C70-B1iZRE152200703-201205

DK. GREY,TRIM1#

sub58510-12C71¥50,200

main58510-12C70-E0iZRE152..N200703-201103

GREGE,TRIM4#

sub58510-12C71¥50,200

main58510-12C71-B1iZRE15#201206-201311

DK.GRAY,TRIM1#

58511HMAT, FLOOR, FRONT RH

main58512-12190iZRE152..6F..N¥3,270200703-201304

sub58512-12191¥3,270

main58512-12191iZRE15#¥3,270201305

58512BMAT, FLOOR, FRONT LH

main58511-12610iZRE152..6F..N¥3,230200703-201304

sub58511-12611¥3,230

main58511-12611iZRE15#¥3,230201305

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2iZRE152200703-201311

DK.GRAY

sub90467-05164¥110

58521BHOOK, FLOOR CARPET

main58521-12140iZRE152..6F..N¥470200703-201004

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iZRE15#..E,N200703-201311

DK.GRAY,TRIM1#,4#

sub90467-07049¥90

main90467-07049-B7iZRE152..N200703-201311

DK.GRAY,TRIM1#

sub90467-07049¥90

58561CSILENCER, FRONT FLOOR, NO.1

main58561-12040iZRE152¥11,400200703-200902

sub58561-12041¥11,400

main58561-12041iZRE152..6F..N¥11,400200903-201004

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-B0iZRE152..N200703-201311

DK.GRAY,TRIM1#,4#

main58569-12010-B0iZRE152..N200703-201311

DK.GRAY,TRIM1#

8 parts on this diagram · 1 diagram in section
